2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

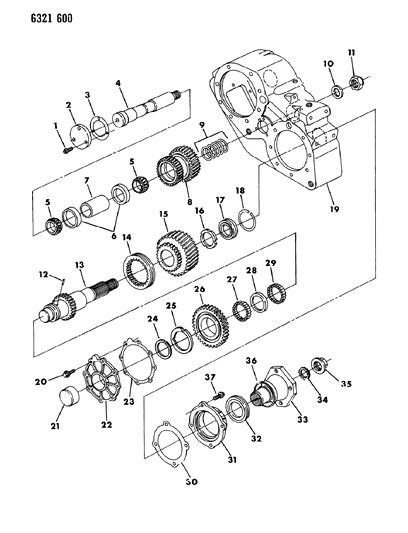

  • 1.TRANSMISSION, MANUAL CASE, TRANSFER, SHAFTS AND GEARS N.P.G. MODEL 205 D6,7 (Section 2 of 3)
    1987 Dodge D150 Case, Transfer, Shafts And Gears Diagram 1

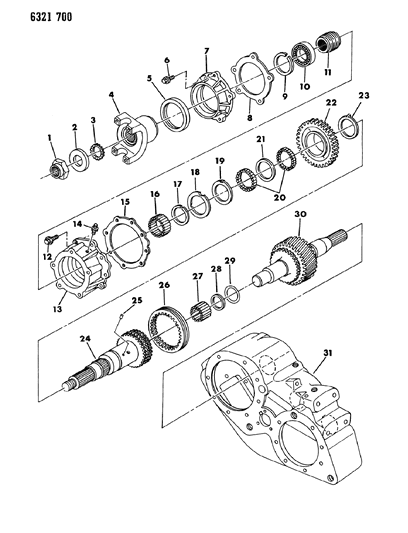

  • 2.TRANSMISSION, MANUAL CASE, TRANSFER, SHAFTS AND GEARS N.P.G. MODEL 205 D6,7 (Section 3 of 3)
    1987 Dodge D150 Case, Transfer, Shafts And Gears Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    0927365
    COVER, Idler Shaft End
  • 3
    0927364
    GASKET, Idler Shaft Cover
  • 4
    2954122
    SHAFT, Idler Gear
  • 5
    0927375
    CONE, Idler Gear Bearing
    • Require Quantity: 2
  • 6
    2910220
    CUP, Idler Gear Bearing
    • Require Quantity: 2
  • 6
    1673185
    SCREW, Oil Seal Retainer
    • Require Quantity: 5
  • 7
    2954134
    RETAINER, Rr. Output Shaft Oil Seal
  • 7
    2954121
    SPACER, Idler Gear Bearing
  • 8
    2954119
    GEAR, Idler
  • 9
    0927368
    SHIM, Idler Gear Spacer,
    • .004" Thk.
  • 9
    0927369
    SHIM, Idler Gear Spacer,
    • .005" Thk.
  • 9
    0927370
    SHIM, Idler Gear Spacer,
    • .0125" Thk.
  • 9
    0930402
    SHIM, Idler Gear Spacer,
    • .015" Thk.
  • 9
    3821561
    SHIM, Idler Gear Spacer,
  • 10
    3410048
    BEARING, Rear Output Shaft
  • 11
    3732038
    GEAR, Speedo. Nylon, 5 Teeth
  • 12
    2952592
    PIN, Low Gear, Front Thrust Washer
  • 13
    4219097
    RETAINER, Rear Output Shaft Brg.
  • 13
    3491281
    SHAFT, Front Output
  • 14
    0118749
    CONNECTOR, Vent Tube 5/16" Flared
  • 15
    4210976
    GASKET, Rr. Output Shaft Brg. Retainer
  • 15
    2954124
    GEAR, Frt. Wheel, High
  • 16
    2225014
    BEARING, Rr. Output Shaft Support
  • 16
    3491282
    WASHER, Frt. Output High Gear Thrust
  • 17
    3410048
    BEARING, Front Output Shaft
  • 17
    3732037
    RING, Low Gear, Rear Output Retaining
  • 18
    2954113
    WASHER, Rr. Output Thrust 3/16" Thk.
  • 19
    2952591
    WASHER, Rr. Output Thrust 1/16" Thk.
  • 21
    1265674
    BEARING, Frt. Output Shaft, Rear
  • 21
    2954112
    SPACER, Rr. Output Shaft Roller
  • 22
    2952589
    GEAR, Low Rear Output Shaft
  • 22
    2954130
    RETAINER, Frt. Output, Rear Bearing
  • 23
    4210976
    GASKET, Frt. Output, Rr. Brg. Retainer
  • 23
    2952591
    WASHER, Low Gear Roller, Thrust 1/16" Thk.
  • 24
    3732037
    RING, Low Gear, Front Output Retaining
  • 24
    4106561
    SHAFT PACKAGE, w/Gear, Speedo. Drive, Rr. Output
  • 25
    2952592
    PIN, Low Gear, Rear Thrust Washer
  • 25
    2954113
    WASHER, Frt. Output, Thrust 3/16" Thk.
  • 26
    2952589
    GEAR, Low Front Output
  • 27
    2954109
    ROLLER, Rr. Output Shaft Pilot
    • Require Quantity: 15
  • 28
    2954112
    SPACER, Frt. Output, Roller
  • 28
    0567969
    WASHER, Rr. Output Shaft Pilot, Thrust
  • 29
    3492986
    RING, Pilot Roller Lock
  • 30
    4167905
    SHAFT, w/Gear, Input
  • 33
    4167912
    FLANGE, T/Case Frt. Output Yoke
  • 36
    4210611
    GUARD, T/Case Frt. Output Shaft Flange
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge D150 parts. Parts like Case, Transfer, Shafts And Gears are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
