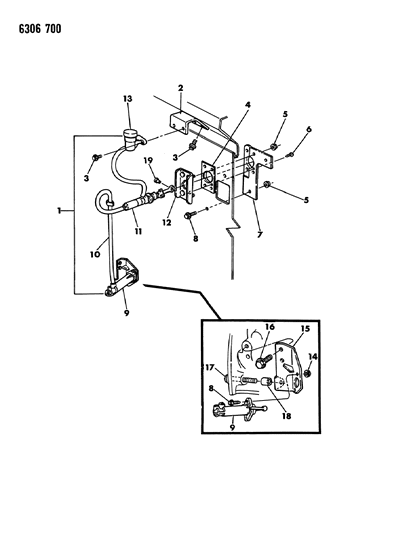

Diagram (1 of 1): CLUTCH CONTROLS, HYDRAULIC CLUTCH 225 ENGINE WITH A833 AND 435 TRANS. D BODY

1987 Dodge D350 Controls, Hydraulic Clutch Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4471381
HYDRAULIC CLUTCH ASSEMBLY, (Consists of Items 9,10,11,13)

2
4377735
BRACKET, Reservoir Mounting

4
4446225
SEAL, Master Cylinder Mounting

5
118614
NUT, Bracket Stud 5/16-18
- Require Quantity: 6
- Package Quantity: 1

6
4351304
PLUG, Plate

8
181088
SCREW, w/Washer 5/16-18 x 1"
- Require Quantity: 4
- Package Quantity: 1

12
4412078
BRACKET, Master Cylinder Mounting

14
271502
NUT, Bracket Bolt 7/16-14

15
4340217
BRACKET, Slave Cylinder Mtg., w/A833 Trans.
w/435 Trans.
15
4377842
BRACKET, Slave Cylinder Mtg., w/A833 Trans.
- BRACKET, Slave Cylinder Mtg., w/A833 Trans.

16
181186
SCREW, w/Washer Bracket Mtg., 7/16-14 x 1-1/2"
9/16-12 x 1-1/2"
Require Quantity: 2
16
9418275
SCREW, w/Washer Bracket Mtg., 7/16-14 x 1-1/2"
- SCREW, w/Washer Bracket Mtg., 7/16-14 x 1-1/2"
- Require Quantity: 2

17
153493
SCREW, w/Washer 7/16-14 x 2-1/2"

18
4340221
SPACER, Slave Cyl. Mtg. Bracket

19

4446361
BUSHING, Master Cylinder Push Rod Eye (D)
$6.75 $4.49
1
Add To Cart

4340241
PLATE, Bracket Reinf., w/435 Trans.

4340240
PLATE, Bracket Reinf., w/A833 Trans.

4471839
SHIELD, Slave Cylinder, Heat

4471838
SHIELD, Slave Cylinder, Heat, Front, w/A435 Trans.

4471837
SHIELD, Slave Cylinder, Heat, Front, w/A833 Trans.

4443435
HYDRAULIC CLUTCH PACKAGE, Service Installation, w/435 Trans.
4443434
HYDRAULIC CLUTCH PACKAGE, Service Installation, w/A833 Trans.

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge D350 parts. Parts like Controls, Hydraulic Clutch are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
