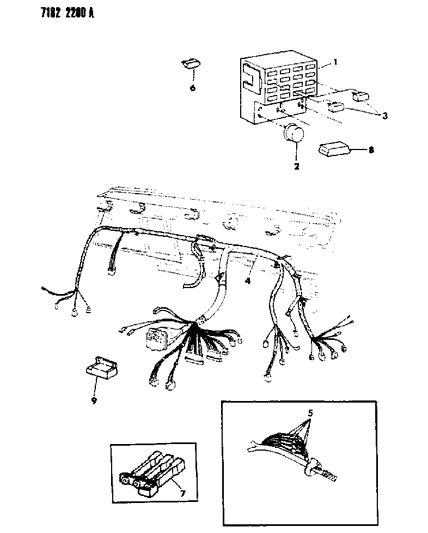

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING G BODY

1987 Dodge Daytona Instrument Panel Wiring Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4274530
MODULE, Fuse Block
BRACKET, Module Mtg.
1
4304499
MODULE, Fuse Block
- MODULE, Fuse Block

2
2932877
FLASHER, Hazard Warning
FLASHER, Hazard Warning
2
3837161
FLASHER, Hazard Warning
- Two Lamp (FLASHER, Turn Signal)
2
3837162
FLASHER, Hazard Warning
- Three Lamp (FLASHER, Turn Signal)

3
4186377
BREAKER, Circuit
6 Amp.
3
4186379
BREAKER, Circuit
- 30 Amp.

4
4400591
WIRING HARNESS, Instrument Panel
Mechanical Cluster
4
4400593
WIRING HARNESS, Instrument Panel
- Electronic Cluster

5
4026093
CABLE, Fusible Link
No. 12 Black
5
4026094
CABLE, Fusible Link
- No. 14 Red
5
4026095
CABLE, Fusible Link
- No. 16 Blue
5
4026096
CABLE, Fusible Link
- No. 18 Gray
5
4364877
CABLE, Fusible Link
- No. 10 Green
5
4364878
CABLE, Fusible Link
- No. 20 Orange

6
6101131
FUSES
3 Amp.
6
6101132
FUSES
- 4 Amp.
6
6101133
FUSES
- 5 Amp.
6
6101135
FUSES
- 10 Amp.
6
6101137
FUSES
- 20 Amp.
6
6101138
FUSES
- 25 Amp.
6
6101139
FUSES
- 30 Amp.

7
4124258
TERMINAL, Buss Bar
1 Way
7
4124752
TERMINAL, Buss Bar
- 3 Way

8
4221730
BUZZER, Key, H/Lamp and Seat Belt Warning

9
4312664
CONTROL, Chimes

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Daytona parts. Parts like Instrument Panel Wiring are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
