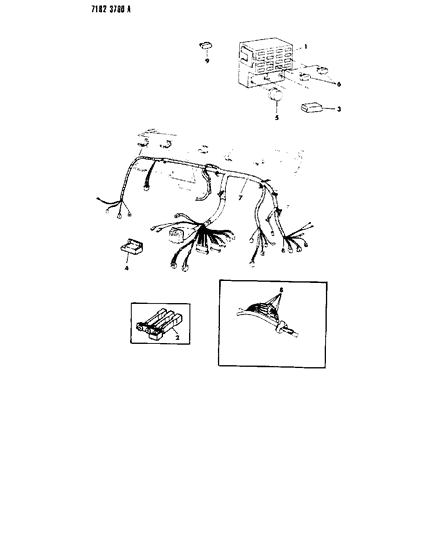

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING M BODY
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 14124697
MODULE, Fuse Block
- 24124258
TERMINAL, Buss Bar- 1 Way
- 24124752
TERMINAL, Buss Bar- 3 Way
- 34373067
BUZZER, Key, H/Lamp and Seat Belt Warning
- 44048581
CONTROL, Chimes- BRACKET, Chimes
- 44312664
CONTROL, Chimes- CONTROL, Chimes
- 5
- 53837161
FLASHER, Hazard Warning- Two Lamp (FLASHER, Turn Signal)
- 53837162
FLASHER, Hazard Warning- Three Lamp (FLASHER, Turn Signal)
- 63747809
BREAKER, Circuit- w/Police Relay Control System, 20Amp.
- Require Quantity: 2
- 63747810
BREAKER, Circuit- w/Police Relay Control System, 30Amp.
- Require Quantity: 2
- 63747851
BREAKER, Circuit- BRACKET, Circuit Breaker, w/Police Control System
- 64186379
BREAKER, Circuit- 30 Amp.
- 64331929
BREAKER, Circuit- 6 Amp.
- 73843875
WIRING HARNESS, Instrument Panel- Title Lamp Switch (WIRING, Instrument Panel)
- 74124803
WIRING HARNESS, Instrument Panel- Relay Control, Police (WIRING, Instrument Panel)
- 74274019
WIRING HARNESS, Instrument Panel- Right Panel (WIRING, Instrument Panel)
- 74368147
WIRING HARNESS, Instrument Panel- WIRING HARNESS, Instrument Panel
- 84026093
CABLE, Fusible Link- No. 12 Black
- 84026094
CABLE, Fusible Link- No. 14 Red
- 84026095
CABLE, Fusible Link- No. 16 Blue
- 84026096
CABLE, Fusible Link- No. 18 Grey
- 8
- 8
- 96101131
FUSES- 3 Amp.
- 96101132
FUSES- 4 Amp.
- 96101133
FUSES- 5 Amp.
- 9
6101135
FUSES- 10 Amp.
- 9
6101137
FUSES- 20 Amp.
- 96101138
FUSES- 25 Amp.
- 96101139
FUSES- 30 Amp.
