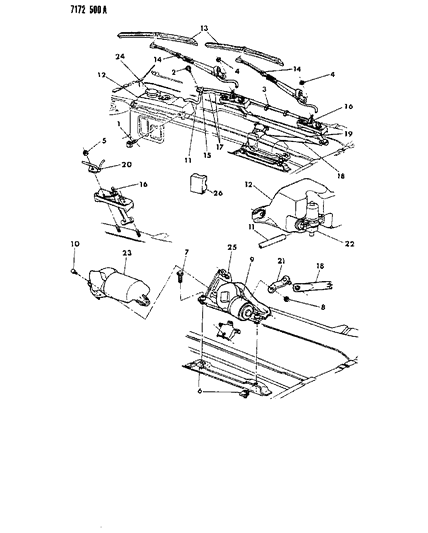

Diagram (1 of 1): WIPER - WASHER AND CYLINDER & KEYS WINDSHIELD WIPER AND WASHER SYSTEM P BODY

1987 Dodge Shadow Windshield Wiper & Washer System Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

3
6015776
CLIP, Hose Retaining
- Require Quantity: 2

4
6501002
NUT, Wiper Arm Mtg.
- Require Quantity: 2

5
6100047
NUT, Pivot Mtg.
- Require Quantity: 4
- Package Quantity: 1
$8.70 $5.90
1
Add To Cart

6
6101283
NUT, Wiper Motor Bracket Mtg.
- Require Quantity: 2
- Package Quantity: 1

7
6501160
SCREW, Motor Bracket Mtg.
- Require Quantity: 3

8

6031096
NUT, Wiper Drive Crank Mtg.

9
4270881
MOTOR, Wiper
SEAL, Motor
9
4339450
MOTOR, Wiper
- Up to 3-3-87
9
4342226
MOTOR, Wiper
- SUPPRESSOR, Motor Radio Noise
9
4389072
MOTOR, Wiper
- After 3-3-87

10
6031951
SCREW, Motor Cover Mtg.
- Require Quantity: 2

11
3780798
HOSE, Reservoir to Connector

12
4270609
RESERVOIR, Washer
SENSOR, Fluid Level
12
4334562
RESERVOIR, Washer
- w/o Sensor
12
4334564
RESERVOIR, Washer
- w/Sensor

13
3799335
BLADE, Wiper
REFILL, Blade
Require Quantity: 2
13
4389062
BLADE, Wiper
- BLADE, Wiper
- Require Quantity: 2

14
4026130
ARM, Wiper
HOSE, Washer
14
4334111
ARM, Wiper
- COVER, Head
- Require Quantity: 2
- Package Quantity: 1
14
4334956
ARM, Wiper
- NOZZLE, Washer
- Require Quantity: 2
- Package Quantity: 1
14
4388465
ARM, Wiper
- ARM, Wiper
- Require Quantity: 2
14
4389008
ARM, Wiper
- GUARD, Hose
- Require Quantity: 2

15
4334274
CONNECTOR, Hose

16
4334544
PIVOT, Wiper, Right
PIVOT, Wiper, Right
16
4334545
PIVOT, Wiper, Right
- PIVOT, Wiper, Left

17
3837036
HOSE, Washer

18
4334542
LINK, Drive

19
4334540
LINK, Connecting
LINK, Connecting
19
4389013
LINK, Connecting
- BUSHING, Black

20
4388467
CONNECTOR, Hose
- Require Quantity: 2
- Package Quantity: 1
$20.10 $17.42
1
Add To Cart

21
4334550
CRANK and PIN, Drive

22
4334569
PUMP, Washer

23
4270813
COVER ASSEMBLY, Motor
COVER ASSEMBLY, Motor
23
4270869
COVER ASSEMBLY, Motor
- COVER, Terminal
23
4334566
COVER ASSEMBLY, Motor
- COVER, Motor

24
4334707
CAP, Reservoir

25
4364864
BRACKET, Motor Mtg.

26
4312002
CONTROL, Intermittent Wiper

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1987 Dodge Shadow parts. Parts like Windshield Wiper & Washer System are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
