Rear Seat fit your 1988 Chrysler Fifth Avenue

Currently shopping for
1988 Chrysler Fifth Avenue
Change Vehicle
Categories Close X

Currently selected

Body

Other Categories

Automatic Transmission
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Sheet Metal Except Doors
Brakes, Service
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Engine
Exhaust
Frame & Bumpers
Fuel
Heater & Air Conditioning
Propeller Shaft
Rear Axle
Rear Suspension
Steering
Wheels
Wiper & Washers And Cylinder & Keys
Categories Close X

Currently selected

Body

Other Categories

Automatic Transmission
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Sheet Metal Except Doors
Brakes, Service
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Engine
Exhaust
Frame & Bumpers
Fuel
Heater & Air Conditioning
Propeller Shaft
Rear Axle
Rear Suspension
Steering
Wheels
Wiper & Washers And Cylinder & Keys
Parts Questions
3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

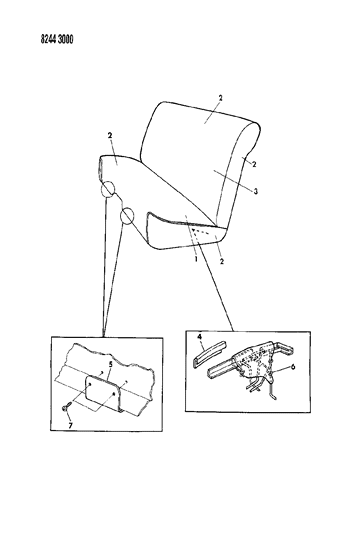

  • 1.M BODY SEAT--REAR M BODY TRIM CODE A3
    1988 Chrysler Fifth Avenue Rear Seat Diagram 1

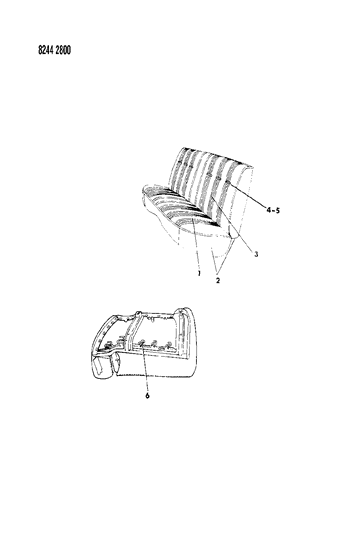

  • 2.M BODY SEAT--REAR M BODY TRIM CODES H9,S9,SY,C9
    1988 Chrysler Fifth Avenue Rear Seat Diagram 2

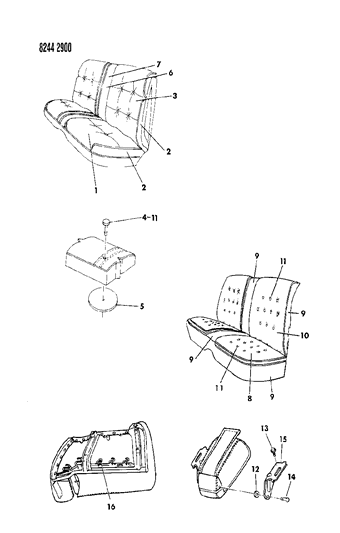

  • 3.M BODY SEAT--REAR M BODY TRIM CODES K2,KX
    1988 Chrysler Fifth Avenue Rear Seat Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    A373C3A
    COVER, Cushion
    • Silver, (A3A) (CLOTH)
  • 1
    A373C3M
    COVER, Cushion
    • Red, (A3M) (CLOTH)
  • 1
    A373G3C
    COVER, Cushion
    • Blue, (A3C) (CLOTH)
  • 1
    A373G3L
    COVER, Cushion
    • Taupe, (A3L) (CLOTH)
  • 1
    A382C9M
    COVER, Cushion
    • Red, (C9M, H9M) (CLOTH)
  • 1
    A382D9A
    COVER, Cushion
    • Silver, (C9A, H9A) (CLOTH)
  • 1
    A382G9C
    COVER, Cushion
    • Blue, (H9C, C9C) (CLOTH)
  • 1
    A382G9L
    COVER, Cushion
    • Taupe, (H9K, C9L) (CLOTH)
  • 1
    N163G2C
    COVER, Cushion
    • Blue, (K2C) (VINYL)
  • 1
    N163G2L
    COVER, Cushion
    • Taupe, (K2L, KXL) (VINYL)
  • 1-2
    A647C9M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, C9M, H9M) (CLOTH)
  • 1-2
    A647D9A
    CUSHION, w/Spring, Frame, Pad and Cover
    • Silver, (C9A, H9A) (CLOTH)
  • 1-2
    A647G9C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (H9C, C9C) (CLOTH)
  • 1-2
    A647G9L
    CUSHION, w/Spring, Frame, Pad and Cover
    • Taupe, (H9L, C9L) (CLOTH)
  • 1-2
    A855C3A
    CUSHION, w/Spring, Frame, Pad and Cover
    • Silver, (A3A) (Heavy Duty)
  • 1-2
    A855C3M
    CUSHION, w/Spring, Frame, Pad and Cover
    • Red, (A3M) (Heavy Duty)
  • 1-2
    A855G3C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (A3C) (Heavy Duty)
  • 1-2
    A855G3L
    CUSHION, w/Spring, Frame, Pad and Cover
    • Taupe, (A3L) (Heavy Duty)
  • 1-2
    N738G2C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (K2C) (VINYL)
  • 1-2
    N738G2L
    CUSHION, w/Spring, Frame, Pad and Cover
    • Taupe, (K2L, KXL) (VINYL)
  • 2
    R021CM6
    ROLL STOCK, Cloth 54" Wide Order By The Inch
    • Red, (C9M, H9M)
  • 2
    R021DA4
    ROLL STOCK, Cloth 54" Wide Order By The Inch
    • Silver, (C9A, H9A)
  • 2
    R021DC8
    ROLL STOCK, Cloth 54" Wide Order By The Inch
    • Blue, (C9C, H9C)
  • 2
    R021GL7
    ROLL STOCK, Cloth 54" Wide Order By The Inch
    • Taupe, (H9L, C9L)
  • 2
    R600GL7
    ROLL STOCK, Vinyl Order By The Inch
    • Taupe, 54" Wide
      Taupe, 54" Wide (K2L, KXL)
  • 2
    R616AA2
    ROLL STOCK, Vinyl Order By The Inch
    • Silver, 64" Wide
  • 2
    R616VC8
    ROLL STOCK, Vinyl Order By The Inch
    • Blue, 64" Wide
      Blue, 64" Wide (K2C)
  • 2
    R616VM6
    ROLL STOCK, Vinyl Order By The Inch
    • Red, 64" Wide
  • 2-3
    A857C3A
    BACK, w/Spring/Frame, Pad and Cover
    • Silver, (A3A) (Heavy Duty)
  • 2-3
    A857C3M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (A3M) (Heavy Duty)
  • 2-3
    A857G3C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (A3C) (Heavy Duty)
  • 2-3
    A857G3L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (A3L) (Heavy Duty)
  • 2-4
    A648C9M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (C9M, H9M) (CLOTH)
  • 2-4
    A648D9A
    BACK, w/Spring/Frame, Pad and Cover
    • Silver, (C9A, H9A) (CLOTH)
  • 2-4
    A648G9C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (H9C, C9C) (CLOTH)
  • 2-4
    A648G9L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (H9L, C9L) (CLOTH)
  • 3
    A376C3A
    COVER, Back
    • Silver, (A3A) (CLOTH)
  • 3
    A376C3M
    COVER, Back
    • Red, (A3M) (CLOTH)
  • 3
    A376G3C
    COVER, Back
    • Blue, (A3C) (CLOTH)
  • 3
    A376G3L
    COVER, Back
    • Taupe, (A3L) (CLOTH)
  • 3
    A383C9M
    COVER, Back
    • Red, (C9M, H9M) (CLOTH)
  • 3
    A383D9A
    COVER, Back
    • Silver, (C9A, H9A) (CLOTH)
  • 3
    A383G9C
    COVER, Back
    • Blue, (H9C, C9C) (CLOTH)
  • 3
    A383G9L
    COVER, Back
    • Taupe, (H9L, C9L) (CLOTH)
  • 3
    N164G2C
    COVER, Back
    • Blue, (K2C) (VINYL)
  • 3
    N164G2L
    COVER, Back
    • Taupe, (K2L, KXL) (VINYL)
  • 3-2
    N740G2C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (K2C) (VINYL)
  • 3-2
    N740G2L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (K2L, KXL) (VINYL)
  • 4
    G380CM6
    BUTTON and RETAINER
    • Red, (C9M, H9M) (BACK)
  • 4
    G380EA4
    BUTTON and RETAINER
    • Silver, (C9A, H9A) (BACK)
  • 4
    G380GC5
    BUTTON and RETAINER
    • Blue, (H9C, C9C) (BACK)
  • 4
    G380GL7
    BUTTON and RETAINER
    • Taupe, (H9L, C9L) (BACK)
  • 4
    G381CM6
    BUTTON and RETAINER
    • Red, (C9M, H9M) (CUSHION)
  • 4
    G381EA4
    BUTTON and RETAINER
    • Silver, (C9A, H9A) (CUSHION)
  • 4
    G381GC5
    BUTTON and RETAINER
    • Blue, (H9C, C9C) (CUSHION)
  • 4
    G381GL7
    BUTTON and RETAINER
    • Taupe, (H9L, C9L) (CUSHION)
  • 4
    G385AA2
    BUTTON and RETAINER
    • Silver, (A3A)
  • 4
    G385GC5
    BUTTON and RETAINER
    • Blue, (A3C)
  • 4
    G385GL7
    BUTTON and RETAINER
    • Taupe, (A3L)
  • 4
    G385VM6
    BUTTON and RETAINER
    • Red, (A3M)
  • 4
    4138071
    PROTECTOR, Rear Seat Cushion Frame (w/Heavy Duty Cushion)
    • Require Quantity: 2
  • 5
    3844288
    SCUFF PLATE, Cushion Hold Down
    • Require Quantity: 2
  • 5
    4029901
    WASHER, Button
  • 6
    A649CM6
    ARMREST and COVER
    • Red, (C9M, H9M)
  • 6
    A649DA4
    ARMREST and COVER
    • Silver, (C9A, H9A)
  • 6
    A649GC5
    ARMREST and COVER
    • Blue, (H9C, C9C)
  • 6
    A649GL7
    ARMREST and COVER
    • Taupe, (H9L, C9L)
  • 7
    A386CM6
    COVER, Armrest
    • Red, (C9M, H9M)
  • 7
    A386DA4
    COVER, Armrest
    • Silver, (C9A, H9A)
  • 7
    A386GC5
    COVER, Armrest
    • Blue, (H9C, C9C)
  • 7
    A386GL7
    COVER, Armrest
    • Taupe, (H9L, C9L)
  • 8
    A348AYA
    COVER, Cushion
    • Silver, (SYA) (LEATHER)
  • 8
    A348AYM
    COVER, Cushion
    • Red, (SYM) (LEATHER)
  • 8
    A348GYC
    COVER, Cushion
    • Blue, (SYC) (LEATHER)
  • 8
    A348GYL
    COVER, Cushion
    • Taupe, (SYL) (LEATHER)
  • 8
    A484G9A
    COVER, Cushion
    • Silver, (S9A) (CLOTH)
  • 8
    A484G9C
    COVER, Cushion
    • Blue, (S9C) (CLOTH)
  • 8
    A484G9L
    COVER, Cushion
    • Taupe, (S9L) (CLOTH)
  • 8
    A484G9M
    COVER, Cushion
    • Red, (S9M) (CLOTH)
  • 8-9
    A504G9A
    CUSHION, w/Spring/Frame, Pad and Cover
    • Silver, (S9A) (CLOTH)
  • 8-9
    A504G9C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (S9C) (CLOTH)
  • 8-9
    A504G9L
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (S9L) (CLOTH)
  • 8-9
    A504G9M
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (S9M) (CLOTH)
  • 8-9
    A940AYA
    CUSHION, w/Spring/Frame, Pad and Cover
    • Silver, (SYA) (LEATHER)
  • 8-9
    A940AYM
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (SYM) (LEATHER)
  • 8-9
    A940GYC
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (SYC) (LEATHER)
  • 8-9
    A940GYL
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (SYL) (LEATHER)
  • 9
    R035EA3
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Silver, (S9A)
  • 9
    R035EC7
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Blue, (S9C)
  • 9
    R035EM6
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Red, (S9M)
  • 9
    R035GL7
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Taupe, (S9L)
  • 9
    R600GL7
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Taupe, 54" Wide (SYL) (Vinyl, Order By The Inch)
  • 9
    R616AA2
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Silver, 64" Wide (SYA) (Vinyl, Order By The Inch)
  • 9
    R616VC8
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Blue, 64" Wide (SYC) (Vinyl, Order By The Inch)
  • 9
    R616VM6
    ROLL STOCK, Cloth 62" Wide Order By The Inch
    • Red, 64" Wide (SYM) (Vinyl, Order By The Inch)
  • 9-11
    A505G9A
    BACK, w/Spring/Frame, Pad and Cover
    • Silver, (S9A) (CLOTH)
  • 9-11
    A505G9C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (S9C) (CLOTH)
  • 9-11
    A505G9L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (S9L) (CLOTH)
  • 9-11
    A505G9M
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (S9M) (CLOTH)
  • 9-11
    A941AYA
    BACK, w/Spring/Frame, Pad and Cover
    • Silver, (SYA) (LEATHER)
  • 9-11
    A941AYM
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (SYM) (LEATHER)
  • 9-11
    A941GYC
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (SYC) (LEATHER)
  • 9-11
    A941GYL
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (SYL) (LEATHER)
  • 10
    A349AYA
    COVER, Back
    • Silver, (SYA) (LEATHER)
  • 10
    A349AYM
    COVER, Back
    • Red, (SYM) (LEATHER)
  • 10
    A349GYC
    COVER, Back
    • Blue, (SYC) (LEATHER)
  • 10
    A349GYL
    COVER, Back
    • Taupe, (SYL) (LEATHER)
  • 10
    A485G9A
    COVER, Back
    • Silver, (S9A) (CLOTH)
  • 10
    A485G9C
    COVER, Back
    • Blue, (S9C) (CLOTH)
  • 10
    A485G9L
    COVER, Back
    • Taupe, (S9L) (CLOTH)
  • 10
    A485G9M
    COVER, Back
    • Red,(S9M) (CLOTH)
  • 11
    G379AA3
    BUTTON and RETAINER, Cushion and Back
    • Silver, (S9A)
  • 11
    G379AM6
    BUTTON and RETAINER, Cushion and Back
    • Red, (S9M)
  • 11
    G379GC5
    BUTTON and RETAINER, Cushion and Back
    • Blue, (S9C)
  • 11
    G379GL7
    BUTTON and RETAINER, Cushion and Back
    • Taupe, (S9L)
  • 11
    S846AA2
    BUTTON and RETAINER, Cushion and Back
    • Silver, (SYA)
  • 11
    S846AM6
    BUTTON and RETAINER, Cushion and Back
    • Red, (SYM)
  • 11
    S846GC5
    BUTTON and RETAINER, Cushion and Back
    • Blue, (SYC)
  • 11
    S846GL7
    BUTTON and RETAINER, Cushion and Back
    • Taupe, (SYL)
  • 12
    6031537
    WASHER, Rear Seat Back Center Arm Rest Spacer
    • Require Quantity: 2
  • 14
    6026584
    SCREW, Armrest
    • Require Quantity: 2
  • 15
    4098764
    HINGE, Armrest
