Manifold - Intake & Exhaust fit your 1988 Chrysler Fifth Avenue
Currently shopping for
1988 Chrysler Fifth Avenue
Change VehicleCategories Close X
Currently selected
Engine
Other Categories
Automatic Transmission
Body
Body - Doors And Related Parts
Body - Exterior Ornamentation
Body - Sheet Metal Except Doors
Brakes, Service
Cooling
Electrical
Electrical - Instrument Panel And Consoles
Emission Systems
Exhaust
Frame & Bumpers
Fuel
Heater & Air Conditioning
Propeller Shaft
Rear Axle
Rear Suspension
Steering
Wheels
Wiper & Washers And Cylinder & Keys
Parts Questions

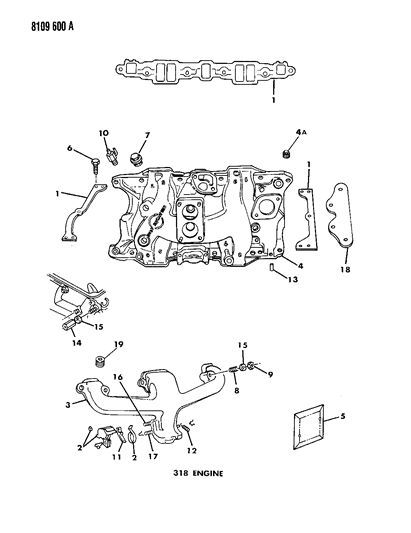

Diagram (1 of 1): ENGINE, 8 CYLINDER MANIFOLD, INTAKE & EXHAUST 5.2 L ENGINE
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 14343735
GASKET SET, Intake Manifold (w/2Bbl Carburetor)- GASKET, Intake Manifold Front (1 - ------- Sealer, Intake Manifold End Gasket)
- 14343736
GASKET SET, Intake Manifold (w/2Bbl Carburetor)- Rear (1 - ------- Sealer, Intake Manifold End Gasket)
- 14397642
GASKET SET, Intake Manifold (w/2Bbl Carburetor)- GASKET SET, Intake Manifold (w/4Bbl Carburetor) (1 - 4343736 Gasket, Intake Manifold Rr.)
- 14397643
GASKET SET, Intake Manifold (w/2Bbl Carburetor)- GASKET SET, Intake Manifold (w/2Bbl Carburetor)
- 2
- 34105058
MANIFOLD, Exhaust, Right (Except ELE-4Bbl Police Engine)- MANIFOLD, Exhaust, Right (Except ELE-4Bbl Police Engine)
- 34105059
MANIFOLD, Exhaust, Right (Except ELE-4Bbl Police Engine)- Right (w/ELE-4Bbl Police Engine)
- 34173162
MANIFOLD, Exhaust, Right (Except ELE-4Bbl Police Engine)- Left (Except ELE-4Bbl Police Engine)
- 34173165
MANIFOLD, Exhaust, Right (Except ELE-4Bbl Police Engine)- Left (w/ELE-4Bbl Police Engine)
- 44201135
MANIFOLD, Intake- w/2Bbl Carburetor
- 44323354
MANIFOLD, Intake- w/4Bbl Carburetor
- 4a1859127
PLUG, Intake Manifold (3/8"-18)
- 53698458
SHIELD, Intake Manifold Heat
- 6
- 74041067
JET, Intake Manifold Floor
- 86025991
SCREW, Exhaust Manifold Left, 3-3/16" Lgh., w/Tapped Head (Not Serviced)- STUD, Exhaust Manifold End
- Require Quantity: 4
- 86028355
SCREW, Exhaust Manifold Left, 3-3/16" Lgh., w/Tapped Head (Not Serviced)- STUD, Exhaust Manifold Left, 1-14/16" Lgh. Hex.
- 86029832
SCREW, Exhaust Manifold Left, 3-3/16" Lgh., w/Tapped Head (Not Serviced)- 5/16 x 1-1/8"
- Require Quantity: 3
- 8
- 86031857
SCREW, Exhaust Manifold Left, 3-3/16" Lgh., w/Tapped Head (Not Serviced)- 5/16 x 1-7/8"
- Require Quantity: 4
- 89421360
SCREW, Exhaust Manifold Left, 3-3/16" Lgh., w/Tapped Head (Not Serviced)- SCREW, Exhaust Manifold Long, 5/16 x 2-1/8"
- Require Quantity: 3
- 9
$25.01 $19.351
- 104210580
CONNECTOR, Intake Manifold Vacumm Control (See Group 5)
- 112946083
STOP, Exhaust Manifold Heat Control Valve
- 122951626
SPRING, Exhaust Manifold Heat Control Valve Shaft
- 13$0.00
- 146031179
NUT, Exhaust Manifold End
- 152121223
WASHER, Exhaust Manifold- Require Quantity: 8
- 169409667
PIN, Heat control Valve Stop
- 172951627
PIN, Exhaust Manifold Heat Control Valve Damper
- 184105671
BLOCKER, Intake Manifold Gasket Rear
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Chrysler Fifth Avenue parts. Parts like Manifold - Intake & Exhaust are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
