4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

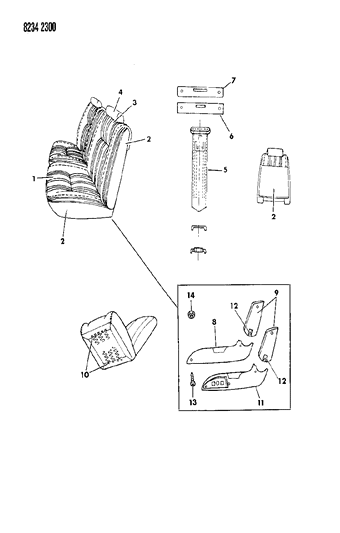

- 1.K BODY SEAT--FRONT K BODY TRIM CODE JP

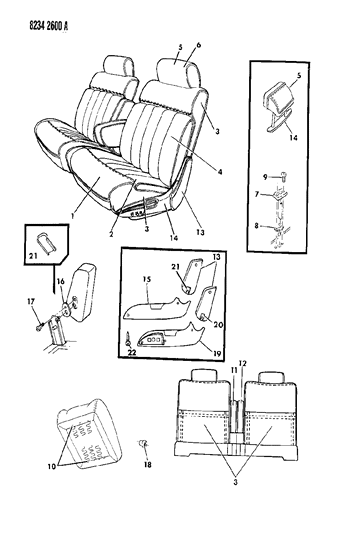

- 2.K BODY SEAT--FRONT K BODY TRIM CODE M5

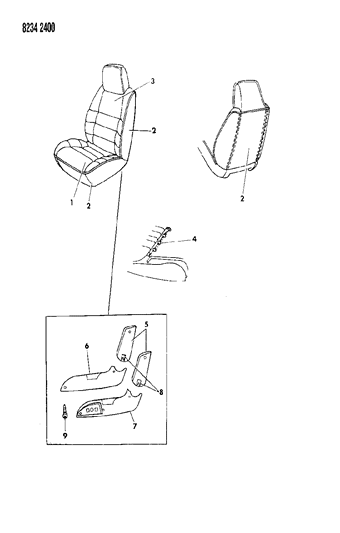

- 3.K BODY SEAT--FRONT K BODY TRIM CODE V8

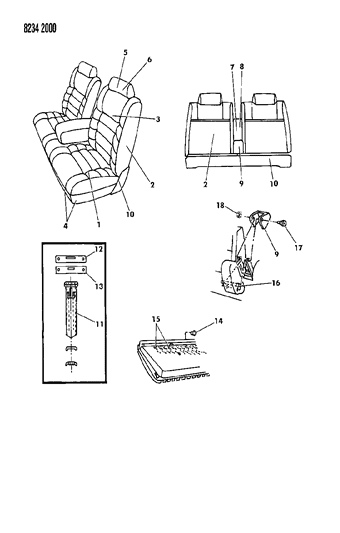

- 4.K BODY SEAT--FRONT K BODY TRIM CODES M3
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
C416E8ECOVER, Cushion- Cordovan, (V8E), Right (VINYL)
1
C416E8KCOVER, Cushion- Almond, (V8K), Right (VINYL)
1
C417E8ECOVER, Cushion- Cordovan, (V8E), Left (VINYL)
1
C417E8KCOVER, Cushion- Almond, (V8K), Left (VINYL)
1
1
1
1
1
C516D5SCOVER, Cushion- Silver, (M5S), Right (CLOTH)
1
C516E5ECOVER, Cushion- Cordovan, M5E), Right (CLOTH)
1
C516E5KCOVER, Cushion- Almond, (M5K), Right (CLOTH)
1
C516F5CCOVER, Cushion- Blue, (M5C), Right (CLOTH)
1
C517D5SCOVER, Cushion- Silver, (M5S), Left (CLOTH)
1
C517E5ECOVER, Cushion- Cordovan, M5E), Left (CLOTH)
1
C517E5KCOVER, Cushion- Almond, (M5K), Left (CLOTH)
1
C517F5CCOVER, Cushion- Blue, (M5C), Left (CLOTH)
1-2
B904E8ECUSHION, w/Spring, Frame, Pad and Cover 1-2
B904E8KCUSHION, w/Spring, Frame, Pad and Cover 1-2
B955E8ECUSHION, w/Spring, Frame, Pad and Cover 1-2
B955E8KCUSHION, w/Spring, Frame, Pad and Cover 1-2
C786D5SCUSHION, w/Spring, Frame, Pad and Cover- Silver, (M5S), Right (CLOTH)
1-2
C786E5ECUSHION, w/Spring, Frame, Pad and Cover- Cordovan, (E5E), Right (CLOTH)
1-2
C786E5KCUSHION, w/Spring, Frame, Pad and Cover- Almond, (M5K), Right (CLOTH)
1-2
C786F5CCUSHION, w/Spring, Frame, Pad and Cover- Blue, (M5C), Right (CLOTH)
1-2
C787D5SCUSHION, w/Spring, Frame, Pad and Cover- Silver, (M5S), Left (CLOTH)
1-2
C787E5ECUSHION, w/Spring, Frame, Pad and Cover- Cordovan, (E5E), Left (CLOTH)
1-2
C787E5KCUSHION, w/Spring, Frame, Pad and Cover- Almond, (M5K), Left (CLOTH)
1-2
C787F5CCUSHION, w/Spring, Frame, Pad and Cover- Blue, (M5C), Left (CLOTH)
1-2
C847D3SCUSHION, w/Spring/Frame, Pad and Cover 1-2
C847E3ECUSHION, w/Spring/Frame, Pad and Cover 1-2
C847E3KCUSHION, w/Spring/Frame, Pad and Cover 1-2
C847F3CCUSHION, w/Spring/Frame, Pad and Cover
1-3
A952FPKCUSHION, w/Spring/Frame, Pad and Cover- Almond/Cream, (JPKY), Right (LEATHER)
1-3
A953FPKCUSHION, w/Spring/Frame, Pad and Cover- Almond/Cream, (JPKY), Left (LEATHER)
2
A944FPKCOVER, Cushion- Almond/Cream, (JPKY, Right (LEATHER)
2
A945FPKCOVER, Cushion- Almond/Cream, (JPKY, Left (LEATHER)
2
R026DS8
ROLL STOCK, Cloth 59" Wide Order BY The Inch
2
R026EC5
ROLL STOCK, Cloth 59" Wide Order BY The Inch
2
R026EE8
ROLL STOCK, Cloth 59" Wide Order BY The Inch
2
R026EK1
ROLL STOCK, Cloth 59" Wide Order BY The Inch
2
R026DS8
ROLL STOCK, Cloth, 59" Wide Order By The Inch
2
R026EC5
ROLL STOCK, Cloth, 59" Wide Order By The Inch
2
R026EE8
ROLL STOCK, Cloth, 59" Wide Order By The Inch
2
R026EK1
ROLL STOCK, Cloth, 59" Wide Order By The Inch
2
R600EE8ROLL STOCK, Vinyl 54" Wide Order By The Inch 2
R600EK1ROLL STOCK, Vinyl 54" Wide Order By The Inch
2-3
C790D5SBACK, w/Spring, Frame, Pad and Cover- Silver, (M5S), Right (CLOTH)
2-3
C790E5EBACK, w/Spring, Frame, Pad and Cover- Cordovan, (M5E), Right (CLOTH)
2-3
C790E5KBACK, w/Spring, Frame, Pad and Cover- Almond, (M5K), Right (CLOTH)
2-3
C790F5CBACK, w/Spring, Frame, Pad and Cover- Blue, (M5C), Right (CLOTH)
2-3
C791D5SBACK, w/Spring, Frame, Pad and Cover- Silver, (M5S), Left (CLOTH)
2-3
C791E5EBACK, w/Spring, Frame, Pad and Cover- Cordovan, (M5E), Left (CLOTH)
2-3
C791E5KBACK, w/Spring, Frame, Pad and Cover- Almond, (M5K), Left (CLOTH)
2-3
C791F5CBACK, w/Spring, Frame, Pad and Cover- Blue, (M5C), Left (CLOTH)
2-3
B906E8EBACK, w/Spring/Frame, Pad and Cover 2-3
B906E8KBACK, w/Spring/Frame, Pad and Cover 2-3
B959E8EBACK, w/Spring/Frame, Pad and Cover 2-3
B959E8KBACK, w/Spring/Frame, Pad and Cover 2-3
C850D3SBACK, w/Spring/Frame, Pad and Cover- Charcoal, (M3S), Right (CLOTH)
2-3
C850E3EBACK, w/Spring/Frame, Pad and Cover- Cordovan, (M3E), Right (CLOTH)
2-3
C850E3KBACK, w/Spring/Frame, Pad and Cover- Almond, (M3K), Right (CLOTH)
2-3
C850F3CBACK, w/Spring/Frame, Pad and Cover- Blue, (M3C), Right (CLOTH)
2-3
C851D3SBACK, w/Spring/Frame, Pad and Cover- Charcoal, (M3S), Left (CLOTH)
2-3
C851E3EBACK, w/Spring/Frame, Pad and Cover- Cordovan, (M3E), Left (CLOTH)
2-3
C851E3KBACK, w/Spring/Frame, Pad and Cover- Almond, (M3K), Left (CLOTH)
2-3
C851F3CBACK, w/Spring/Frame, Pad and Cover- Blue, (M3C), Left (CLOTH)
3
C490E8ECOVER, Back- Cordovan, (V8E) (VINYL)
- Require Quantity: 2
3
C490E8KCOVER, Back- Almond, (V8K) (VINYL)
- Require Quantity: 2
3
C512D3SCOVER, Back- Charcoal, (M3S), Right (CLOTH)
3
C512E3ECOVER, Back- Cordovan, (M3E), Right (CLOTH)
3
C512E3KCOVER, Back- Almond, (M3K), Right (CLOTH)
3
C512F3CCOVER, Back- Blue, (M3C), Right (CLOTH)
3
C513D3SCOVER, Back- Charcoal, (M3S), Left (CLOTH)
3
C513E3ECOVER, Back- Cordovan, (M3E), Left (CLOTH)
3
C513E3KCOVER, Back- Almond, (M3K), Left (CLOTH)
3
C513F3CCOVER, Back- Blue, (M3C), Left (CLOTH)
3
C518D5SCOVER, Back- Silver, (M5S) (CLOTH)
- Require Quantity: 2
3
C518E5ECOVER, Back- Cordovan, (M5E) (CLOTH)
- Require Quantity: 2
3
C518E5KCOVER, Back- Almond, (M5K) (CLOTH)
- Require Quantity: 2
3
C518F5CCOVER, Back- Blue, (M5C) (CLOTH)
- Require Quantity: 2
3
R627EK1
ROLL STOCK, Vinyl 54" Wide Order By The Inch
3-4
C942EPKBACK, w/Spring/Frame, Pad and Cover- Almond/ Cream, (JPKY), Right (LEATHER)
3-4
C943EPKBACK, w/Spring/Frame, Pad and Cover- Almond/ Cream, (JPKY), Left (LEATHER)
4
C474EPKCOVER, Back w/Pocket- Almond/Cream ,(JPKY), Right (LEATHER)
4
C475EPKCOVER, Back w/Pocket- Almond/Cream ,(JPKY), Left (LEATHER)
4
S790EE8HEADREST and COVER- Cordovan, (V8E)
- Require Quantity: 2
4
S790EK1HEADREST and COVER- Almond, (V8K)
- Require Quantity: 2
4
4
R600EE8ROLL STOCK, Vinyl Order By The Inch 4
R600EK1ROLL STOCK, Vinyl Order By The Inch 4
R609CS8ROLL STOCK, Vinyl Order By The Inch 4
R616FC5ROLL STOCK, Vinyl Order By The Inch
5
A822DS8HEADREST and COVER- Charcoal, (M3S)
- Require Quantity: 2
5
A822EE8HEADREST and COVER- Cordovan, (M3E
- Require Quantity: 2
5
A822EK1HEADREST and COVER- Almond, (M3K)
- Require Quantity: 2
5
A822FC5HEADREST and COVER- Blue, (M3C)
- Require Quantity: 2
5
C945EY1HEADREST and COVER- Almond, (JPKY)
- Require Quantity: 2
5
S996FK1SHIELD, Back (P.A.R.)- Drivers Seat (INNER)
Passenger Seat (OUTER)
5
S997FK1SHIELD, Back (P.A.R.)- Drivers Seat (OUTER)
Passenger Seat (INNER)
5
S786EE8SLEEVE, Headrest- Cordovan, (V8E)
- Require Quantity: 2
5
S786EK1SLEEVE, Headrest- Almond, (V8K)
- Require Quantity: 2
6
A539DS8COVER, Headrest- Charcoal, (M3S)
- Require Quantity: 2
6
A539EE8COVER, Headrest- Cordovan, (M3E)
- Require Quantity: 2
6
A539EK1COVER, Headrest- Almond, (M3K)
- Require Quantity: 2
6
A539FC5COVER, Headrest- Blue, M3C
- Require Quantity: 2
6
C477EY1COVER, Headrest- Almond, (JPKY)
- Require Quantity: 2
6
S764GK1SHIELD, Cushion (P.A.R.)- Drivers Seat (INNER)
Passenger Seat (OUTER)
6
S765GK1SHIELD, Cushion (P.A.R.)- Driver Seat (OUTER)
Passenger Seat (INNER)
6
4190387SUPPORT, Headrest Trim Cover
7
4190388COVER, Headrest Finish
7
S265FK1
SHIELD, Cushion Elec. (P.A.R.)
8
4098965CATCH, Headrest Post
8
4317800
CLIP, Shield Attach.
8
S764GK1SHIELD, Cushion (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
8
S765GK1SHIELD, Cushion (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
9
S996FK1SHIELD, Back (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
9
S997FK1SHIELD, Back (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
10
11
C944EK1ARMREST and COVER, (Passenger and Drivers Seat)
11
S265FK1
SHIELD, Cushion Electric (P.A.R.)
11
S786EC5SLEEVE, Headrest- Blue, (M3C)
- Require Quantity: 2
11
12
4317800
CLIP, Shield Attaching
12
C476EK1COVER, Armrest (Passenger and Driver Seat)
12
4190388COVER, Headrest Finish
13
S996FK1SHIELD, Back (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
13
S997FK1SHIELD, Back (P.A.R.)- Almond (Driver Seat)
Almond (Passenger Seat)
13
4190387SUPPORT, Headrest Trim Cover
14
4380112BUSHING, Cushion Pivot Bracket
14
4018808COVER, Headrest Finish
15
15
S764GK1SHIELD, Cushion (P.A.R.)- Driver Seat (INNER)
Passenger Seat (OUTER)
15
S765GK1SHIELD, Cushion (P.A.R.)- Driver Seat (OUTER)
Passenger Seat (INNER)
16
4290871SPACER, Armrest to Stanchion 16
4477624SPACER, Armrest to Stanchion
17
6030082SCREW, Armrest To Stanchion
18
6006324
NUT, Armrest Lock Rod
19
4190488SHIELD, Electric (P.A.R.)- SHIELD, Electric (P.A.R.)
19
S265FK1SHIELD, Electric (P.A.R.)
20
4317800
CLIP, Shield Attaching
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Chrysler LeBaron Base parts. Parts like Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: Automatic Transmission.
