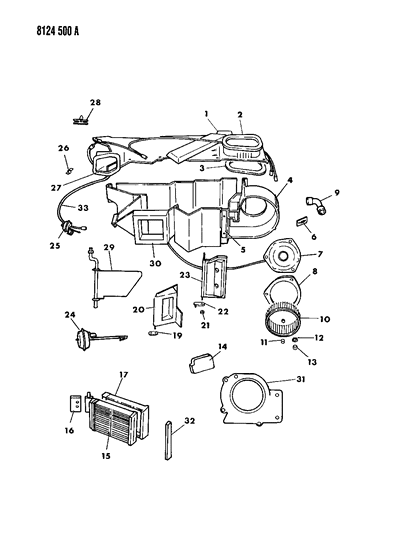

Diagram (1 of 1): HEATER AND AIR CONDITIONING HEATER UNIT K,E BODY
1988 Chrysler LeBaron Heater Unit Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    3849369
    COVER, Heater Housing
  • 2
    3847605
    SEAL, A/C., Heater Evaporator Cover To Plenum
  • 3
    3847720
    SEAL, Heater Evaporator Housing Mounting Center
  • 4
    3848418
    HOUSING, w/STUD, Heater Evaporator Scroll
  • 5
    3848238
    BRACE, Heater Unit Mounting To Plenum Support
  • 6
    3849950
    RESISTOR, Heater Blower Motor
  • 7
    4443132
    MOTOR, w/SEAL, Heater Blower
    • MOTOR, w/SEAL, Heater Blower
  • 7
    R4443132
    MOTOR, w/SEAL, Heater Blower
    • MOTOR, Heater Blower
  • 10
    5210234
    WHEEL, Heater Blower Motor
  • 12
    6500376
    NUT, Heater Blower Motor J-Type
  • 14
    3848880
    SEAL, Heater To Dash (Evap Hole)
  • 16
    Chrysler 5210109
    5210109
    SEAL, Heater Unit To Dash At Core Tubes
  • 17
    Chrysler 3848093
    3848093
    SEAL, Heater Core
  • 19
    Chrysler 3847858
    3847858
    LEVER, Mode Door Shaft
  • 20
    3849511
    DOOR, w/Seal Heater Mode
  • 21
    Chrysler 219462
    219462
    NUT, Door Shaft Lever
  • 23 Chrysler 5210395
    5210395
    DOOR, Heater Blend Door
    • DOOR, Heater Blend Door
    $66.60 $52.33
    1
    Add To Cart
  • 23
    Chrysler 219462
    219462
    DOOR, Heater Blend Door
    • NUT, w/WASHER, Heater Blend Door Mounting
  • 24
    3847849
    ACTUATOR, Heater Mode Door
  • 26
    2521336
    CLIP, Heater Evaporator Housing Cover Mounting
  • 27
    3847606
    SEAL, Heater Unit To Defroster Duct
  • 28
    6015778
    CLIP, Heater Vacuum Hose Retaining
  • 29
    5210093
    DOOR and SHAFT, Heater Defroster
  • 30
    5210336
    SEAL, Heater Center Air Distribution Duct
  • 31
    3849288
    HOUSING, Heater Air Inlet
  • 32
    3847681
    SEAL, Heater Core End
  • 33
    3441609
    VACUUM HARNESS, Heater
    • VALVE, Heater Vacuum Hose Check
  • 33
    3849127
    VACUUM HARNESS, Heater
    • VACUUM HARNESS, Heater
  • 33
    4274936
    VACUUM HARNESS, Heater
    • INSULATOR, Heater Blower Motor
  • 3847721
    SEAL, Heater Housing Cover, Left
  • 3847720
    SEAL, Heater Housing Cover, Right
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Chrysler LeBaron Base parts. Parts like Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: Automatic Transmission.
