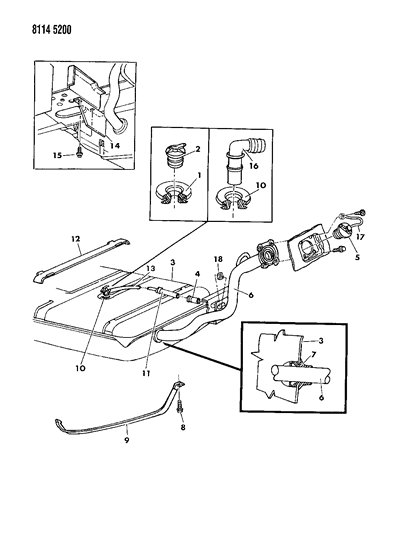

Diagram (1 of 1): FUEL FUEL TANK AND FUEL FILLER TUBES S BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
4002149
GROMMET, Rollover Valve
3
5217875
TANK, Fuel w/15 and 20 Gallon
4
4279205
SLEEVE, Fuel Filler Vent Hose
6
4203666TUBE, Fuel Tank Filler- Unleaded Gas w/(SC - NDA)
6
4203667TUBE, Fuel Tank Filler
8
6101341BOLT, Fuel Tank Strap- (use up to 11-16-87)
- Require Quantity: 2
8
6501893BOLT, Fuel Tank Strap- (use after 11-16-87)
- Require Quantity: 2
9
4279691STRAP, Fuel Tank Mounting
10
11
4279284
HOSE, Fuel Filler Vent Tube
13
4279275
TUBE, Fuel Filler Vent
14
4279904
SHIELD, Filler Tube Stone
16
4279273NIPPLE, Fuel Tank Tube Vent 16
4279274NIPPLE, Fuel Tank Tube Vent
17
18
6032147
CLAMP, Fuel Filler Tube Vent Hose
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Caravan parts. Parts like Fuel Tank & Fuel Filler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
