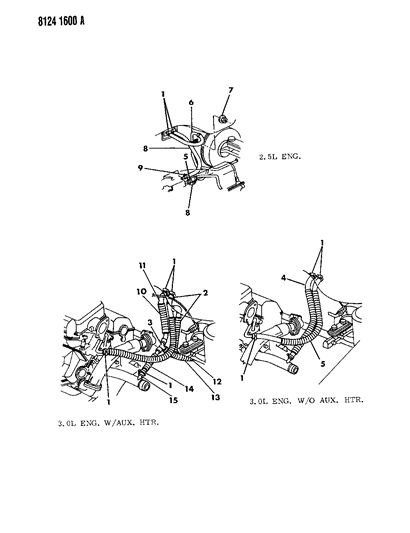

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, HEATER S BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4462031
HOSE, Aux. Heater, Engine to Core and Rear Tube
3
6
3849063
HOSE, Tube, Heater Core to Hose
8
3849076
HOSE, Heater, Engine to Core
10
11 11
1315466HOSE, 5/8" I.D. 50 ft. Roll- HOSE, 5/8" I.D. 50 ft. Roll
12
13
1315466
HOSE, 5/8" I.D. 50 ft. Roll
14
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Caravan parts. Parts like Plumbing - Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
