2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

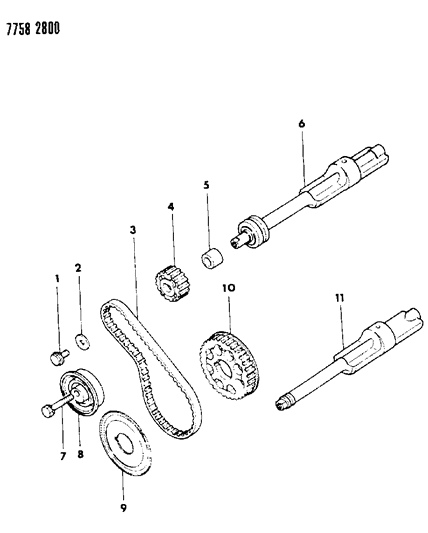

- 1.ENGINE, 4 CYLINDER BALANCE SHAFTS 24RWD,27 2.6 L ENGINE

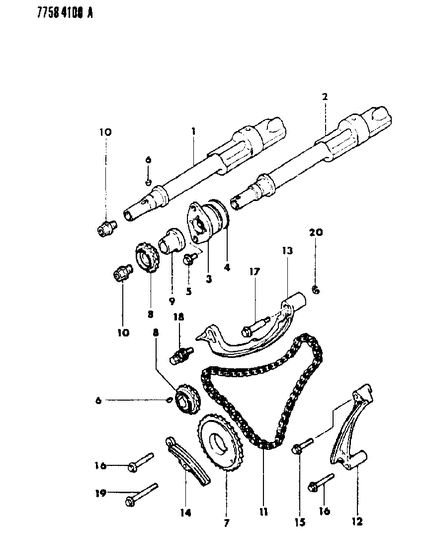

- 2.ENGINE, 4 CYLINDER BALANCE SHAFTS 27,45 2.0 L ENGINE
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
1
MD024845
SHAFT, Balance Right
2
MD024846
SHAFT, Balance Left
2
3
MD041407
BELT, Balance Shaft Up to 3/88
3
3
4
MD021045
O-RING, Balance Shaft Thrust Plate
4
MD041401
SPROCKET, Balance Shaft
5
6
MF476204KEY, Woodruff (3x10mm)
6
7
9
MD040751
FLANGE, Crankshaft Balance Shaft Sprocket
9
MD020255
SPACER, Balance Shaft Sprocket
10
MD027152BOLT, Flange (10x15mm)
11
MD021155
CHAIN, Balance Shaft
MD102782
SHAFT, Balance Left
15
MS101317
BOLT, Flange (6x32mm)
16
MS101322BOLT, Flange (6x45mm)
17
MD021157
BOLT, Special (A)
18
MD021158
BOLT, Special (B)
19
MS101325
BOLT, Flange (6x60mm)
20
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Colt parts. Parts like Balance Shafts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: . Transmission: 3-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission.
