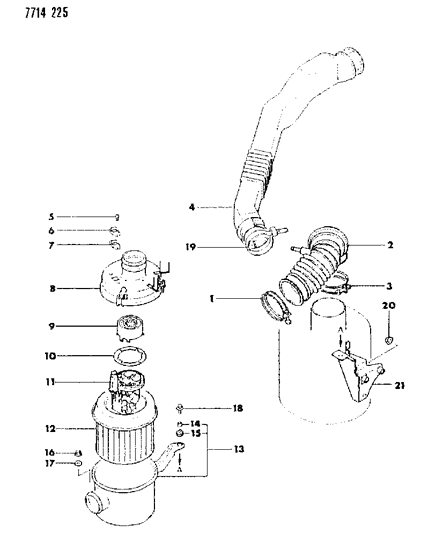

3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.FUEL AIR CLEANER - K ENGINE TURBO 24,41 FWD - COLT L A
- 2.FUEL AIR CLEANER - Q ENGINE 24,41 FWD - COLT L A
- 3.FUEL AIR CLEANER - Q ENGINE FUEL INJECTION 45-STATION WAGON COLT LA
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
MD122524
CLAMP, Hose (56mm)
1
MF661026
CLAMP, Hose (56mm)
1
MD108871
DUCT, Air Cleaner
2
MD021443
CLIP, Hose (60mm)
3
MD122530
CLAMP, Hose (90mm)
3
MF661041
CLAMP, Hose (90mm)
3
MD081212
WING NUT and WASHER
4
MD603945
COVER, Air Cleaner
5 5
5
MD603800
ELEMENT, Air Cleaner
6
MD603385
BODY, Air Cleaner
6
MD620005
COVER, Air Cleaner Flow Sensor Connector
7
MD078668
GASKET, Air Cleaner
7
MD620003
GROMMET, Air Cleaner Sensor Cable
8
MD620192
COVER, Air Cleaner
8
MD603360
FILTER, Secondary Air
9
MD603936CASE, Secondary Air 9
MD620147
CASE, Secondary Air
9
MD620090
FILTER, Air Cleaner Noise Reduction
10
MD620340
GASKET, Air Cleaner Flow Sensor
11
MD603459COLLAR, Insulator
11
MD118125
SENSOR, Air Cleaner Air Flow
12
MD603932
ELEMENT, Air Cleaner
12
MF450291WASHER, Plain (6mm)
13
MD620033
BODY, Air Cleaner
13
MS440542NUT and WASHER (6x12mm)
14
14
MD083596
DUCT, Heat (38x50mm)
15
15
MD040886INSULATOR, Air Cleaner Support
15 15
16
MD620013
BODY, Air Cleaner
16 16
17
MD603932
ELEMENT, Air Cleaner
19 19
19
MD620002GASKET, Air Flow Sensor 19
MD620340GASKET, Air Flow Sensor
20
MD620000
FILTER, Noise Reduction
21
MD104247
BRACKET, Air Cleaner
21
MD620014
COVER, Air Cleaner
22
MD620003
GROMMET, Connector
24 24
MF351284SCREW and WASHER (4x10mm)
