2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

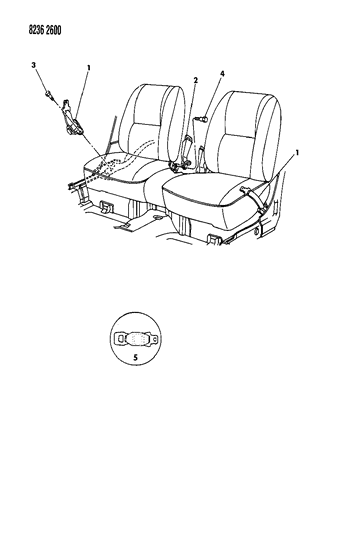

- 1.G BODY BELT--FRONT SEAT G BODY PASSIVE SYSTEM
- 2.G BODY BELT--REAR SEAT G BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
F688FC5BELT, Rear Lap Outboard Tip, Right- Blue (LABEL NUMBER 4290853)
1
F688FS8BELT, Rear Lap Outboard Tip, Right- Charcoal (LABEL NUMBER 4290853)
1
F688GL7BELT, Rear Lap Outboard Tip, Right- Taupe (LABEL NUMBER 4290853)
1
F688GR8BELT, Rear Lap Outboard Tip, Right- Red (LABEL NUMBER 4290853)
1
F741FC5BELT, Rear Lap Outboard Tip, Right- Blue (LABEL NUMBER 4327891)
1
F741FS8BELT, Rear Lap Outboard Tip, Right- Charcoal (LABEL NUMBER 4327891)
1
F741GL7BELT, Rear Lap Outboard Tip, Right- Taupe (LABEL NUMBER 4327891)
1
F741GR8BELT, Rear Lap Outboard Tip, Right- Red (LABEL NUMBER 4327891)
1
4402204BUCKLE ASSEMBLY, Shoulder Belt Door Attaching
2
F689DS8BELT, Rear Inner Buckle- Charcoal (LABEL NUMBER 4290854)
- Require Quantity: 2
2
F689FC5BELT, Rear Inner Buckle- Blue (LABEL NUMBER 4290854)
- Require Quantity: 2
2
F689GL7BELT, Rear Inner Buckle- Taupe (LABEL NUMBER 4290854)
- Require Quantity: 2
2
F689GR8BELT, Rear Inner Buckle- Red (LABEL NUMBER 4290854)
- Require Quantity: 2
6031484BOLT, Outboard Belt Attaching
4
6032039BOLT, Inboard Buckle Attaching
5
F952FC5COVER, Retractor Carpet 5
F952FS8COVER, Retractor Carpet 5
F952GL7COVER, Retractor Carpet 5
F952GR8COVER, Retractor Carpet 5
F953FC5COVER, Retractor Carpet 5
F953FS8COVER, Retractor Carpet 5
F953GL7COVER, Retractor Carpet 5
F953GR8COVER, Retractor Carpet
5 5
4519075EXTENDER, Seat Belt- ANCHOR PACKAGE, Teather, Child Restraint
8
F834GC5RETRACTOR, Shoulder Right (w/Belt)- Blue (LABEL NUMBER, 4477026)
8
F834GL7RETRACTOR, Shoulder Right (w/Belt)- Taupe (LABEL NUMBER, 4477026)
8
F834GR8RETRACTOR, Shoulder Right (w/Belt)- Red (LABEL NUMBER, 4477026)
8
F834GS8RETRACTOR, Shoulder Right (w/Belt)- Charcoal (LABEL NUMBER, 4477026)
9
F835GC5RETRACTOR, Shoulder Left (w/Belt)- Blue (LABEL NUMBER, 4477027)
9
F835GL7RETRACTOR, Shoulder Left (w/Belt)- Taupe (LABEL NUMBER, 4477027)
9
F835GR8RETRACTOR, Shoulder Left (w/Belt)- Red (LABEL NUMBER, 4477027)
9
F835GS8RETRACTOR, Shoulder Left (w/Belt)- Charcoal (LABEL NUMBER, 4477027)
10
F832GC5RETRACTOR, Lap (w/Belt)- Blue (LABEL NUMBER 4477024)
- Require Quantity: 2
10
F832GL7RETRACTOR, Lap (w/Belt)- Taupe (LABEL NUMBER 4477024)
- Require Quantity: 2
10
F832GR8RETRACTOR, Lap (w/Belt)- Red (LABEL NUMBER 4477024)
- Require Quantity: 2
10
F832GS8RETRACTOR, Lap (w/Belt)- Charcoal (LABEL NUMBER 4477024)
- Require Quantity: 2
10
F834GC5RETRACTOR, Lap (w/Belt)- Blue, Right (LABEL NUMBER 4477026)
10
F834GL7RETRACTOR, Lap (w/Belt)- Taupe, Right (LABEL NUMBER 4477026)
10
F834GR8RETRACTOR, Lap (w/Belt)- Red, Right (LABEL NUMBER 4477026)
10
F834GS8RETRACTOR, Lap (w/Belt)- Charcoal, Right (LABEL NUMBER 4477026)
10
F835GC5RETRACTOR, Lap (w/Belt)- Blue, Left (LABEL NUMBER 4477026)
10
F835GL7RETRACTOR, Lap (w/Belt)- Taupe, Left (LABEL NUMBER 4477026)
10
F835GR8RETRACTOR, Lap (w/Belt)- Red, Left (LABEL NUMBER 4477026)
10
F835GS8RETRACTOR, Lap (w/Belt)- Charcoal, Left (LABEL NUMBER 4477026)
11
F832GC5RETRACTOR, Lap (w/Belt)- Blue (LABEL NUMBER 4477024)
- Require Quantity: 2
11
F832GL7RETRACTOR, Lap (w/Belt)- Taupe (LABEL NUMBER 4477024)
- Require Quantity: 2
11
F832GR8RETRACTOR, Lap (w/Belt)- Red (LABEL NUMBER 4477024)
- Require Quantity: 2
11
F832GS8RETRACTOR, Lap (w/Belt)- Charcoal (LABEL NUMBER 4477024)
- Require Quantity: 2
11
F834GC5RETRACTOR, Lap (w/Belt)- Blue, Right (LABEL NUMBER 4477026)
11
F834GL7RETRACTOR, Lap (w/Belt)- Taupe, Right (LABEL NUMBER 4477026)
11
F834GR8RETRACTOR, Lap (w/Belt)- Red, Right (LABEL NUMBER 4477026)
11
F834GS8RETRACTOR, Lap (w/Belt)- Charcoal, Right (LABEL NUMBER 4477026)
11
F835GC5RETRACTOR, Lap (w/Belt)- Blue, Left (LABEL NUMBER 4477026)
11
F835GL7RETRACTOR, Lap (w/Belt)- Taupe, Left (LABEL NUMBER 4477026)
11
F835GR8RETRACTOR, Lap (w/Belt)- Red, Left (LABEL NUMBER 4477026)
11
F835GS8RETRACTOR, Lap (w/Belt)- Charcoal, Left (LABEL NUMBER 4477026)
13
F916FC5BELT, Outboard Lap Buckle Half- Blue, Right (LABEL NUMBER, 4402210-1)
13
F916FS8BELT, Outboard Lap Buckle Half- Charcoal, Right (LABEL NUMBER, 4402210-1)
13
F916GL7BELT, Outboard Lap Buckle Half- Taupe, Right (LABEL NUMBER, 4402210-1)
13
F916GR8BELT, Outboard Lap Buckle Half- Red, Right (LABEL NUMBER, 4402210-1)
13
F917FC5BELT, Outboard Lap Buckle Half- Blue, Left (LABEL NUMBER, 4402210-1)
13
F917FS8BELT, Outboard Lap Buckle Half- Charcoal, Left (LABEL NUMBER, 4402210-1)
13
F917GL7BELT, Outboard Lap Buckle Half- Taupe, Left (LABEL NUMBER, 4402210-1)
13
F917GR8BELT, Outboard Lap Buckle Half- Red, Left (LABEL NUMBER, 4402210-1)
14
6031298BOLT, Outer Belt To Floor Attaching
15
17
4402369PLUG, Tension Reliever Mounting Hole
18
4420809
BRACKET, Retractor To Floor Attaching
21
F298FC5CARPET, Rear Floor Console Right and Left- Blue ((Use Up To 4-25-88))
21
F298FS8CARPET, Rear Floor Console Right and Left- Charcoal ((Use Up To 4-25-88))
21
F298GL7CARPET, Rear Floor Console Right and Left- Taupe ((Use Up To 4-25-88))
21
F298GR8CARPET, Rear Floor Console Right and Left- Red ((Use Up To 4-25-88))
21
V586GC5CARPET, Rear Floor Console Right and Left- Blue ((Use After 4-25-88))
21
V586GL7CARPET, Rear Floor Console Right and Left- Taupe ((Use After 4-25-88))
21
V586GR8CARPET, Rear Floor Console Right and Left- Red ((Use After 4-25-88))
21
V586GS8CARPET, Rear Floor Console Right and Left- Charcoal ((Use After 4-25-88))
22
4420800GUIDE, Passive Belts
23
F410FC5BEZEL, Front Seat Inner Passive Belt 23
F410FS8BEZEL, Front Seat Inner Passive Belt- Charcoal
- Require Quantity: 2
23
F410GL7BEZEL, Front Seat Inner Passive Belt 23
F410GR8BEZEL, Front Seat Inner Passive Belt
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Daytona parts. Parts like Belt - Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
