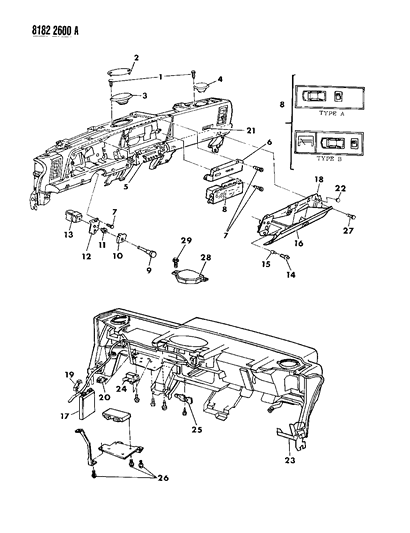

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL SPEAKERS, GLOVEBOX AND SWITCHES G BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
4311082SHIELD, Speaker Opening, Center- SHIELD, Speaker Opening, Center
2
6025249SHIELD, Speaker Opening, Center
4
4222531SPEAKER, Stero Standard- Rear, Standard
- Require Quantity: 2
4
4311490SPEAKER, Stero Standard- SPEAKER, Stero Standard
- Require Quantity: 2
4
4430171SPEAKER, Stero Standard 4
4469001SPEAKER, Stero Standard- Rear, Infinity Sound
- Require Quantity: 2
4
4469097SPEAKER, Stero Standard- Infinity Sound
- Require Quantity: 2
6
4374085NAVIGATOR, Electronic- SUPPRESSION PACKAGE, Navigator Noise
6
4437012NAVIGATOR, Electronic
9421330MESSAGE CENTER- Bulb (1 - 4375313 Wire w/Seal)
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: L0000194
8
4312947MESSAGE CENTER- Socket (1 - 4375313 Wire w/Seal)
8
4375312MESSAGE CENTER- GAUGE, Turbo (1 - 4375313 Wire w/Seal)
8
8
9436790MESSAGE CENTER- Bulb (1 - 4375313 Wire w/Seal)
- Require Quantity: 7
9
4373214
KNOB and SHAFT, H/Lamp Switch
10
4373169
ESCUTCHEON, Headlamp Switch Mounting
12
4373170
PLATE, Headlamp Switch Mtg.
14
4221170
SWITCH, Glove Box Lamp
15
152244BULB, Glove Box Lamp 15
2947226BULB, Glove Box Lamp
16
3508886BOX and DOOR, Glove 16
4220259BOX and DOOR, Glove 16
4220268BOX and DOOR, Glove- PIN, Glove Box Door Pivot
- Require Quantity: 2
16
4220684BOX and DOOR, Glove- STOP, Glove Box Door
- Require Quantity: 2
16
4311232BOX and DOOR, Glove- BUMPER, Glove Box Door Stop
- Require Quantity: 2
16
P684EK1BOX and DOOR, Glove
18
P294GL7
PANEL, Instrument Panel Lower Right
20
4186387
RELAY, Illuminated Entry
21
4311345NAME PLATE, Instrument Panel 21
4311418NAME PLATE, Instrument Panel 21
445153NAME PLATE, Instrument Panel- NUT, Name Plate Att.
- Require Quantity: 2
21
6029168NAME PLATE, Instrument Panel- CLIP, Name Plate Att.
- Require Quantity: 2
23
4220251SUPPORT, Instrument Panel End, Left- REINFORCEMENT, Instrument Panel Center
23
4220254SUPPORT, Instrument Panel End, Left- SUPPORT, Instrument Panel End, Right
23
4220501SUPPORT, Instrument Panel End, Left- SUPPORT, Instrument Panel End, Left
23
4331561SUPPORT, Instrument Panel End, Left- BRACKET, Instrument Panel, Right
23
4372130SUPPORT, Instrument Panel End, Left- SUPPORT, Instrument Panel, Right
24
4312664
CONTROL, Warning Chimes
28
4437107MODULE, Concealed H/Lamp 28
4437108MODULE, Concealed H/Lamp
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Daytona parts. Parts like Instrument Panel Speakers, Glovebox & Switches are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
