3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

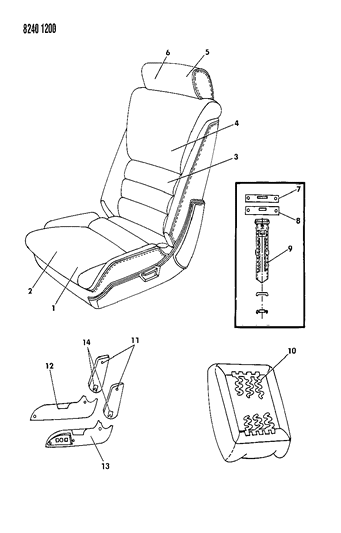

  • 1.H BODY SEAT--FRONT H BODY TRIM CODE E7
    1988 Dodge Lancer Front Seat Diagram 1
  • 2.H BODY SEAT--FRONT H BODY TRIM CODE HL
    1988 Dodge Lancer Front Seat Diagram 2
  • 3.H BODY SEAT--FRONT H BODY TRIM CODE M7
    1988 Dodge Lancer Front Seat Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1-2
    E632G7C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (M7C), Right (CLOTH)
  • 1-2
    E632G7L
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (M7L), Right (CLOTH)
  • 1-2
    E632G7R
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (M7R), Right (CLOTH)
  • 1-2
    E632G7S
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (M7S), Right (CLOTH)
  • 1-2
    E633G7C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (M7C), Left (CLOTH)
  • 1-2
    E633G7L
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (M7L), Left (CLOTH)
  • 1-2
    E633G7R
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (M7R), Left (CLOTH)
  • 1-2
    E633G7S
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (M7S), Left (CLOTH)
  • 1-2
    E636G7C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (E7C) (Right)
  • 1-2
    E636G7L
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (E7L) (Right)
  • 1-2
    E636G7R
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (E7R) (Right)
  • 1-2
    E636G7S
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (E7S) (Right)
  • 1-2
    E637G7C
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (E7C) (Manual)
  • 1-2
    E637G7L
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (E7L) (Manual)
  • 1-2
    E637G7R
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (E7R) (Manual)
  • 1-2
    E637G7S
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (E7S) (Manual)
  • 1-2
    E694GLC
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (HLC), Right (LEATHER)
  • 1-2
    E694GLL
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (HLL), Right (LEATHER)
  • 1-2
    E694GLR
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (HLR), Right (LEATHER)
  • 1-2
    E694GLS
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (HLS), Right (LEATHER)
  • 1-2
    E695GLC
    CUSHION, w/Spring/Frame, Pad and Cover
    • Blue, (HLC), Left (LEATHER)
  • 1-2
    E695GLL
    CUSHION, w/Spring/Frame, Pad and Cover
    • Taupe, (HLL), Left (LEATHER)
  • 1-2
    E695GLR
    CUSHION, w/Spring/Frame, Pad and Cover
    • Red, (HLR), Left (LEATHER)
  • 1-2
    E695GLS
    CUSHION, w/Spring/Frame, Pad and Cover
    • Charcoal, (HLS), Left (LEATHER)
  • 2
    E936G7C
    COVER and PAD
    • Blue, (E7C) (Right)
  • 2
    E936G7L
    COVER and PAD
    • Taupe, (E7L) (Right)
  • 2
    E936G7R
    COVER and PAD
    • Red, (E7R) (Right)
  • 2
    E936G7S
    COVER and PAD
    • Charcoal, (E7S) (Right)
  • 2
    E937G7C
    COVER and PAD
    • Blue, (E7C) (Left)
  • 2
    E937G7L
    COVER and PAD
    • Taupe, (E7L) (Left)
  • 2
    E937G7R
    COVER and PAD
    • Red, (E7R) (Left)
  • 2
    E937G7S
    COVER and PAD
    • Charcoal, (E7S) (Left)
  • 2
    E274GLC
    COVER, Cushion
    • Blue, (HLC), Right (LEATHER)
  • 2
    E274GLL
    COVER, Cushion
    • Taupe, (HLL), Right (LEATHER)
  • 2
    E274GLR
    COVER, Cushion
    • Red, (HLR), Right (LEATHER)
  • 2
    E274GLS
    COVER, Cushion
    • Charcoal, (HLS), Right (LEATHER)
  • 2
    E275GLC
    COVER, Cushion
    • Blue, (HLC), Left (LEATHER)
  • 2
    E275GLL
    COVER, Cushion
    • Taupe, (HLL), Left (LEATHER)
  • 2
    E275GLR
    COVER, Cushion
    • Red, (HLR), Left (LEATHER)
  • 2
    E275GLS
    COVER, Cushion
    • Charcoal, (HLS), Left (LEATHER)
  • 2
    E934G7C
    COVER, Cushion
    • Blue, (M7C), Right (CLOTH)
  • 2
    E934G7L
    COVER, Cushion
    • Taupe, (M7L), Right (CLOTH)
  • 2
    E934G7R
    COVER, Cushion
    • Red, (M7R), Right (CLOTH)
  • 2
    E934G7S
    COVER, Cushion
    • Charcoal, (M7S), Right (CLOTH)
  • 2
    E935G7C
    COVER, Cushion
    • Blue, (M7C), Left (CLOTH)
  • 2
    E935G7L
    COVER, Cushion
    • Taupe, (M7L), Left (CLOTH)
  • 2
    E935G7R
    COVER, Cushion
    • Red, (M7R), Left (CLOTH)
  • 2
    E935G7S
    COVER, Cushion
    • Charcoal, (M7S), Left (CLOTH)
  • 3-4
    E638G7C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (E7C) (Right)
  • 3-4
    E638G7L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (E7L) (Right)
  • 3-4
    E638G7R
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (E7R) (Right)
  • 3-4
    E638G7S
    BACK, w/Spring/Frame, Pad and Cover
    • Charcoal, (E7S) (Right)
  • 3-4
    E639G7C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (E7C) (Left)
  • 3-4
    E639G7L
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (E7L) (Left)
  • 3-4
    E639G7R
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (E7R) (Left)
  • 3-4
    E639G7S
    BACK, w/Spring/Frame, Pad and Cover
    • Charcoal, (E7S) (Left)
  • 3-4
    E806FLC
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (HLC), Right (LEATHER)
  • 3-4
    E806FLS
    BACK, w/Spring/Frame, Pad and Cover
    • Charcoal, (HLS), Right (LEATHER)
  • 3-4
    E806GLL
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (HLL), Right (LEATHER)
  • 3-4
    E806GLR
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (HLR), Right (LEATHER)
  • 3-4
    E807FLC
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (HLC), Left (LEATHER)
  • 3-4
    E807FLS
    BACK, w/Spring/Frame, Pad and Cover
    • Charcoal, (HLS), Left (LEATHER)
  • 3-4
    E807GLL
    BACK, w/Spring/Frame, Pad and Cover
    • Taupe, (HLL), Left (LEATHER)
  • 3-4
    E807GLR
    BACK, w/Spring/Frame, Pad and Cover
    • Red, (HLR), Left (LEATHER)
  • 3-4
    E634G7C
    BACK, w/Spring/frame, Pad and Cover
    • Blue, (M7C), Right (CLOTH)
  • 3-4
    E634G7L
    BACK, w/Spring/frame, Pad and Cover
    • Taupe, (M7L), Right (CLOTH)
  • 3-4
    E634G7R
    BACK, w/Spring/frame, Pad and Cover
    • Red, (M7R), Right (CLOTH)
  • 3-4
    E634G7S
    BACK, w/Spring/frame, Pad and Cover
    • Charcoal, (M7S), Right (CLOTH)
  • 3-4
    E635G7C
    BACK, w/Spring/frame, Pad and Cover
    • Blue, (M7C), Left (CLOTH)
  • 3-4
    E635G7L
    BACK, w/Spring/frame, Pad and Cover
    • Taupe, (M7L), Left (CLOTH)
  • 3-4
    E635G7R
    BACK, w/Spring/frame, Pad and Cover
    • Red, (M7R), Left (CLOTH)
  • 3-4
    E635G7S
    BACK, w/Spring/frame, Pad and Cover
    • Charcoal, (M7S), Left (CLOTH)
  • 4
    E946G7C
    COVER and PAD, Back
    • Blue, (E7C), Right (CLOTH)
  • 4
    E946G7L
    COVER and PAD, Back
    • Taupe, (E7L), Right (CLOTH)
  • 4
    E946G7R
    COVER and PAD, Back
    • Red, (E7R), Right (CLOTH)
  • 4
    E946G7S
    COVER and PAD, Back
    • Charcoal, (E7S), Right (CLOTH)
  • 4
    E947G7C
    COVER and PAD, Back
    • Blue, (E7C), Left (CLOTH)
  • 4
    E947G7L
    COVER and PAD, Back
    • Taupe, (E7L), Left (CLOTH)
  • 4
    E947G7R
    COVER and PAD, Back
    • Red, (E7R), Left (CLOTH)
  • 4
    E947G7S
    COVER and PAD, Back
    • Charcoal, (E7S), Left (CLOTH)
  • 4
    E932G7C
    COVER, Back
    • Blue, (M7C), Right (CLOTH)
  • 4
    E932G7L
    COVER, Back
    • Taupe, (M7L), Right (CLOTH)
  • 4
    E932G7R
    COVER, Back
    • Red, (M7R), Right (CLOTH)
  • 4
    E932G7S
    COVER, Back
    • Charcoal, (M7S), Right (CLOTH)
  • 4
    E933G7C
    COVER, Back
    • Blue, (M7C), Left (CLOTH)
  • 4
    E933G7L
    COVER, Back
    • Taupe, (M7L), Left (CLOTH)
  • 4
    E933G7R
    COVER, Back
    • Red, (M7R), Left (CLOTH)
  • 4
    E933G7S
    COVER, Back
    • Charcoal, (M7S), Left (CLOTH)
  • 4
    E210FLC
    COVER, Less Pad Back
    • Blue, (HLC), Right (LEATHER)
  • 4
    E210FLS
    COVER, Less Pad Back
    • Charcoal, (HLS), Right (LEATHER)
  • 4
    E210GLL
    COVER, Less Pad Back
    • Taupe, (HLL), Right (LEATHER)
  • 4
    E210GLR
    COVER, Less Pad Back
    • Red, (HLR), Right (LEATHER)
  • 4
    E211FLC
    COVER, Less Pad Back
    • Blue, (HLC), Left (LEATHER)
  • 4
    E211FLS
    COVER, Less Pad Back
    • Charcoal, (HLS), Left (LEATHER)
  • 4
    E211GLL
    COVER, Less Pad Back
    • Taupe, (HLL), Left (LEATHER)
  • 4
    E211GLR
    COVER, Less Pad Back
    • Red, (HLR), Left (LEATHER)
  • 5
    E929GAS
    HEADREST and COVER
    • Charcoal, (E7S)
    • Require Quantity: 2
  • 5
    E929GCC
    HEADREST and COVER
    • Blue, (E7C)
    • Require Quantity: 2
  • 5
    E929GLL
    HEADREST and COVER
    • Taupe, (E7L)
    • Require Quantity: 2
  • 5
    E929GRR
    HEADREST and COVER
    • Red, (E7R)
    • Require Quantity: 2
  • 5-6
    E772FC5
    HEADREST and COVER
    • Blue, (HLC)
    • Require Quantity: 2
  • 5-6
    E772FS8
    HEADREST and COVER
    • Charcoal, (HLS)
    • Require Quantity: 2
  • 5-6
    E928GCC
    HEADREST and COVER
    • BLUE, (M7C)
    • Require Quantity: 2
  • 5-6
    E928GLL
    HEADREST and COVER
    • Taupe, (M7L)
    • Require Quantity: 2
  • 5-6
    E928GRR
    HEADREST and COVER
    • Red, (M7R)
    • Require Quantity: 2
  • 5-6
    E928GSS
    HEADREST and COVER
    • Charcoal, (M7S)
    • Require Quantity: 2
  • 5-6
    E984GL7
    HEADREST and COVER
    • Taupe, (HLL)
    • Require Quantity: 2
  • 5-6
    E984GR8
    HEADREST and COVER
    • Red, (HLR)
    • Require Quantity: 2
  • 6
    E262FC5
    COVER, Headrest
    • Blue, (HLC)
    • Require Quantity: 2
  • 6
    E262FS8
    COVER, Headrest
    • Charcoal, (HLS)
    • Require Quantity: 2
  • 6
    E262GL7
    COVER, Headrest
    • Taupe, (HLL)
    • Require Quantity: 2
  • 6
    E277GCC
    COVER, Headrest
    • Blue, (M7C)
    • Require Quantity: 2
  • 6
    E277GLL
    COVER, Headrest
    • Taupe, (M7L)
    • Require Quantity: 2
  • 6
    E277GRR
    COVER, Headrest
    • Red, (M7R)
    • Require Quantity: 2
  • 6
    E277GSS
    COVER, Headrest
    • Charcoal, (M7S)
    • Require Quantity: 2
  • 6
    E278GAS
    COVER, Headrest
    • Charcoal, (E7S)
    • Require Quantity: 2
  • 6
    E278GCC
    COVER, Headrest
    • Blue, (E7C)
    • Require Quantity: 2
  • 6
    E278GLL
    COVER, Headrest
    • Taupe, (E7L)
    • Require Quantity: 2
  • 6
    E278GRR
    COVER, Headrest
    • Red, (E7R)
    • Require Quantity: 2
  • 6
    E297GR8
    COVER, Headrest
    • Red, (HLR)
    • Require Quantity: 2
  • 7
    4327688
    COVER, Headrest Finish
    • Require Quantity: 2
  • 8
    4190387
    SUPPORT, Headrest
    • Require Quantity: 2
  • 9
    S786CS8
    SLEEVE, Headrest
    • Charcoal, (D7S)
      Charcoal, (E7S)
      Charcoal, (HLS)
    • Require Quantity: 2
  • 9
    S786EC5
    SLEEVE, Headrest
    • Blue, (E7C)
      Blue, (HLC)
      Blue, (M7C)
    • Require Quantity: 2
  • 9
    S786GL7
    SLEEVE, Headrest
    • Taupe, (E7L)
      Taupe, (HLL)
      Taupe, (M7L)
    • Require Quantity: 2
  • 9
    S786GR8
    SLEEVE, Headrest
    • Red, (E7R)
      Red, (HLR)
      Red, (M7E)
    • Require Quantity: 2
  • 10
    S610GK1
    SHIELD, Back (P.A.R.)
    • Inboard (DRIVER)
      Outboard (PASSENGER)
  • 10
    S611GK1
    SHIELD, Back (P.A.R.)
    • Inboard (PASSENGER)
      Outboard (DRIVER)
  • 11
    S610GK1
    SHIELD, Back (P.A.R.)
    • Inboard (DRIVER)
      Outboard (PASSENGER)
  • 11
    S611GK1
    SHIELD, Back (P.A.R.)
    • Inboard (PASSENGER)
      Outboard (DRIVER)
  • 11
    S764GK1
    SHIELD, Cushion (P.A.R.)
    • Inboard (DRIVER)
      Outboard (PASSENGER)
  • 11
    S765GK1
    SHIELD, Cushion (P.A.R.)
    • Inboard (PASSENGER)
      Outboard (DRIVER)
  • 12
    S764GK1
    SHIELD, Cushion (P.A.R.)
    • Inboard (DRIVER)
      Outboard (PASSENGER)
  • 12
    S765GK1
    SHIELD, Cushion (P.A.R.)
    • Inboard (PASSENGER)
      Outboard (DRIVER)
  • 12
    S767GC5
    SHIELD, Cushion Outboard Electric
  • 13
    S767GC5
    SHIELD, Cushion Electric (P.A.R.)
  • 14
    4317800
    CLIP, Shield Attaching
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Lancer parts. Parts like Front Seat are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
