4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

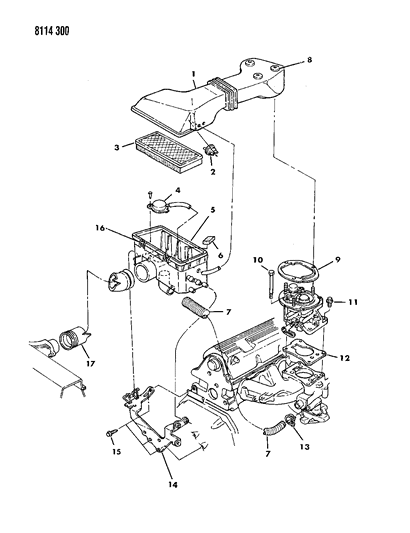

- 1.FUEL AIR CLEANER 2.2L ENGINE E.F.I. L BODY
- 2.FUEL AIR CLEANER 5.2L-2BBL ENGINE
- 3.FUEL AIR CLEANER 5.2L-4BBL ENGINE
- 4.FUEL AIR CLEANER TURBO CHARGER II - W/INTER COOLER
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4458048
COVER, Air Cleaner
2
2863349
FILTER, Air Cleaner
2
4240062
SENSOR, Air Cleaner Temperature
2
4342765
SENSOR, Temperature
3
2951756
COVER, Air Cleaner
3
1739547
FILTER, Air Cleaner
3
4307352
HOSE, Inter Cooler to Air Cleaner
4 4
4324156
COVER, Air Cleaner
6031609
WING NUT, Air Cleaner
5
5
4240062
SENSOR, Air Cleaner Temperature
6
4307862
GASKET, Throttle Body to Intake Manifold
7
4049348
DUCT, Air Cleaner to Bodyside
7
6501645STUD, Throttle Body Attaching
8
4306916
BRACKET, Air Cleaner Mounting
8
4227981
HEATER, Carburetor Air
8
4324348NUT, Air Cleaner to Throttle Body
8
4201385
VALVE, Heated Air Delay
9
4179789
DUCT, Air Cleaner to Body Side
9
10
4241310
CONNECTOR, Air Heater to Air Cleaner
10
4227981
HEATER, Carburetor Air
10
4300058
HOSE, Air Cleaner to Throittle Body
11
2536626
GASKET, Air Cleaner to Carburetor
12
2951393
CLAMP, Air Cleaner
12
4241310
CONNECTOR, Air Heater to Air Cleaner
12
4306102
HOSE, Air Cleaner to Turbo Charger
13
4213632
ADAPTOR, Snorkel to Fresh Air Duct
13
4342801
FILTER, Air Cleaner
14
4397641
DIAPHRAGM, Air Cleaner Snorkel Vacuum
14
4306914
FILTER, Crankcase Inlet Air
14
4100602
GASKET, Air Cleaner to Carburetor
15
4105938DIAPHRAGM, Air Cleaner 15
4201010DIAPHRAGM, Air Cleaner
15
4071703
GASKET, Air Cleaner Cover
15
4306913LATCH, Air Cleaner
15
16
4213632
ADAPTOR, Snorkel to Fresh Air Duct
16
4201385
VALVE, Heated Air Delay
17
4071703
GASKET, Air Cleaner Cover
23
4324313
HARNESS, Speed Control Ejector (contains 17,18,19,21 and 22)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988
Dodge Omni parts. Parts like Air Cleaner are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
