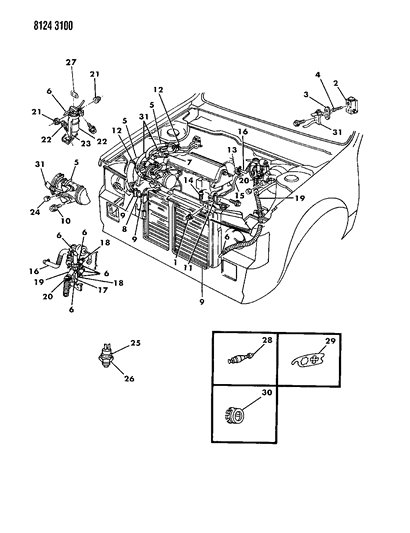

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONING AND HEATING L BODY

1988 Dodge Omni Plumbing - A/C & Heater Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
6500284
NUT and WASHER, Cond. Mtg.
- Require Quantity: 2

2
3848208
VALVE, A/C Expanison
PILOT, A/C., Expn. Valve Package
2
4176999
VALVE, A/C Expanison
- VALVE, A/C Expanison

3
3846834
GASKET, A/C Suction, Liq. Line Mtg. to H-Valve

4
6032572
SCREW, Expansion
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6036623AA

5
3848941
LINE, Disch., Liq.

6
2448770
CLAMP
- Replaced By: 53041045
$13.65 $9.15
1
Add To Cart

7
3848585
CAP, A/C Disch., Liq. Line Check Valve

8
3846835
GASKET, A/C Disch., Liq. Line Mtg. to Cond.
$25.01 $19.35
1
Add To Cart

9
3849594
CONDENSER

10
6500517
SCREW

11
4448750
BRACKET, Water By-Pass

12
6016155
STRAP, Hose
- Replaced By: 68046310AA
$6.65 $4.50
1
Add To Cart

13
153640
CLAMP

14
153640
CLAMP

15
4273486
TUBE, Thermo. Water By-Pass
TUBE, Thermo. Water By-Pass
$39.17 $30.79
1
Add To Cart
15
4273488
TUBE, Thermo. Water By-Pass
- HOSE, Water By-Pass Tube
$9.50 $7.47
1
Add To Cart

16
4462207
HOSE, A/C, Htr., Eng. to Valve

17
4462409
VALVE, A/C, Htr. Water (4 Port)

18
1315466
HOSE, Core to Valve, 5/8" I.D., 50 Ft. Roll

19
4462249
HOSE, Sleeve A/C., and Heater

20
4462208
CLIP, A/C, Htr., Dual Hose Mtg.

21
6033562
NUT and WASHER, Liq. Line to Drier
- Require Quantity: 2

22
5210438
FILTER DRIER

23
5210409
BRACKET, Filter Drier Mtg.

24
3848021
CAP

25
5210377
SWITCH, Low Pressure Cut-off

26
3441105
SEAL, Rec. Drier, Low Pressure Cut-off

27
3847083
GASKET, Suction and Liq. Line Mtg. to Drier

28
3849468
VALVE, A/C Suction and Disch. Check Line

29
3847081
GASKET, A/C Disch, Suction Ftg. Mtg. to Compr.

30
3847147
PILOT, A/C Suction, Disch., Liq. Line Mtg.

31
3849636
LINE, Suction, Liq
LINE, Suction, Liq
31
4339496
LINE, Suction, Liq
- RELAY, A/C Clutch Cut-out
31
4372394
LINE, Suction, Liq
- STRAP, Ground
31
4397809
LINE, Suction, Liq
- SLEEVE, A/C Heater Hose
31
4419360
LINE, Suction, Liq
- SWITCH, A/C Temp. Sensing Suction Line

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Omni parts. Parts like Plumbing - A/C & Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
