2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.FUEL FUEL LINES 3.9L AND 318 ENGINE - B BODY 1988-89 360 ENGINE - B BODY 1989

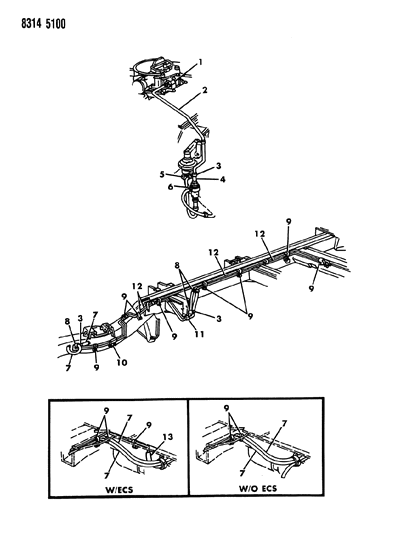

    1988 Dodge Ram Wagon Fuel Line Diagram 1
  • 2.FUEL FUEL LINES 360 ENGINE B BODY 1988
    1988 Dodge Ram Wagon Fuel Line Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4443177
    HOSE, Fuel Supply, Return and Vapor (serv. in 25 ft. spool)
    • 3/16" I.D. up to 5-1-89
  • 1
    4443179
    HOSE, Fuel Supply, Return and Vapor (serv. in 25 ft. spool)
    • 1/4" I.D . up to 5-1-89
  • 1
    4443180
    HOSE, Fuel Supply, Return and Vapor (serv. in 25 ft. spool)
    • 5/16" I.D. up to 5-1-89
  • 1
    52004827
    HOSE, Fuel Supply, Return and Vapor (serv. in 25 ft. spool)
    • TUBE and HOSE, Fuel Supply to Throttle Body after 5-1-89
  • 1
    0137398
    NUT
  • 2
    6500650
    CLAMP, Fuel Return
  • 3
    3683823
    CLAMP
    • Require Quantity: 4
  • 6
    6500650
    CLAMP, Fuel Return
  • 7
    4418305
    BRACKET, Fuel Tube Locating
  • 8
    2881986
    CLAMP
    • Require Quantity: 4
  • 9
    6023526
    SCREW and WASHER
    • Require Quantity: 2
  • 10
    4167759
    SHIELD, Front Fuel Return Tube
  • 10
    4167759
    SHIELD, Fuel Return Tube
  • 11
    2881986
    CLAMP, Fuel Return
  • 11
    3894783
    CLIP
  • 12
    3894783
    CLIP
  • 13
    3683823
    CLAMP, Fuel Supply
  • 13
    4443177
    HOSE, Fuel Vapor 3/16" I.D. (serv. in 25 ft. spool)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Dodge Ram Wagon parts. Parts like Fuel Line are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission, Automatic Transmission.
