3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

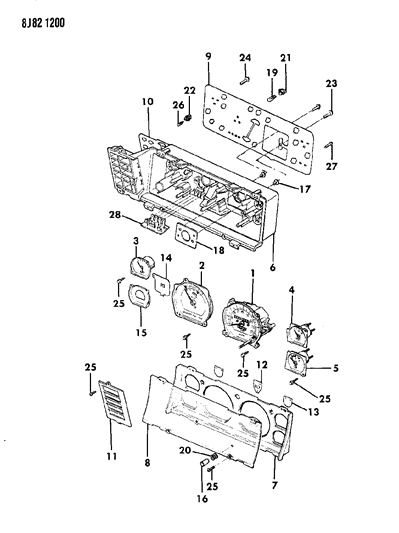

1.ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT CLUSTER--WITH CAUGES W/TACHOMETER, CHEROKEE LIMITED (1987) 1988/ CHEROKEE, WAGONEER, COMANCHE
2.ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT CLUSTER--WITH GAUGES W/O TACHOMETER (TYPE 2) 1987, 1988/ CHEROKEE, WAGONEER,COMANCHE
3.ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT CLUSTER--WITH WARNING LAMPS W/O TACHOMETER (TYPE 2) 1987, 1988/ CHEROKEE, WAGONEER, COMANCHE

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83504224
SPEEDOMETER
Miles
1
83504225
SPEEDOMETER
- Kilo
1
83504226
SPEEDOMETER
- Miles
1
83504227
SPEEDOMETER
- Kilo

1
83504456
SPEEDOMETER, Miles
SPEEDOMETER, Miles
1
83504457
SPEEDOMETER, Miles
- Kilo

2
83504234
GAUGE, Fuel
GAUGE, Fuel
w/Floor Shift
2
83504236
GAUGE, Fuel
- w/Column Shift
2
83504237
GAUGE, Fuel
- w/Column Shift,(Non-Regulated Markets)
2
83504393
GAUGE, Fuel
- w/Floor Shift,(Non-Regulated Markets)

2
83504458
TACHOMETER, 6 Cyl.
TACHOMETER, 6 Cyl.
2
83504503
TACHOMETER, 6 Cyl.
- Diesel 1988/89
2
83504504
TACHOMETER, 6 Cyl.
- 4 Cyl. 1988/89

3
83504459
GAUGE, Fuel U.S.A.
GAUGE, Fuel U.S.A.
3
83504460
GAUGE, Fuel U.S.A.
- CANADA
3
83504505
GAUGE, Fuel U.S.A.
- Diesel, 1988/89

3
83504239
GAUGE, Temperature
U.S.
3
83504240
GAUGE, Temperature
- Canada, Export

3
83504252
HOUSING, Cluster
w/Floor Shift
3
83504253
HOUSING, Cluster
- w/Column Shift

4
83504238
BEZEL, Cluster

4
83504243
GAUGE, Oil
U.S.
4
83504244
GAUGE, Oil
- Canada, Export

4
83504461
GAUGE, Temperature U.S.A.
GAUGE, Temperature U.S.A.
4
83504462
GAUGE, Temperature U.S.A.
- Canada
4
83504507
GAUGE, Temperature U.S.A.
- Diesel, 1988/89

5
83504464
GAUGE, Oil U.S.A.
Canada
5
83504463
GAUGE, Oil U.S.A.
- GAUGE, Oil U.S.A.
5
83504509
GAUGE, Oil U.S.A.
- Diesel, 1988/89

5
83504256
LENS, Cluster

5
83505413
VOLTMETER
5
83504247
VOLTMETER

6
83504259
CONDUCTOR, Printed Circuit
w/Floor Shift
6
83504260
CONDUCTOR, Printed Circuit
- w/Column Shift

6
83504251
HOUSING, Cluster

6
83504465
VOLTMETER
1988/89
$45.55 $39.56
1
Add To Cart
6
83504510
VOLTMETER
- Gauge, Turbo Boost Diesel
6
83505414
VOLTMETER
- 1990

7
83504238
BEZEL, Cluster

7
83504263
CONDUCTOR, Printed Circuit

7
83504249
HOUSING, Cluster

8
83504466
BEZEL. Cluster

8
83504264
FILTER, Warning Lamps
U.S.A. (1987)
8
83504265
FILTER, Warning Lamps
- Canada (1987)
  Non-Regulated Markets (1987)
8
83504863
FILTER, Warning Lamps
- U.S.A. (1988/89)
8
83505256
FILTER, Warning Lamps
- Canada (1988/89)
  Non-Regulated Markets (1988/89)

8
83504255
LENS, Cluster

9
83504258
CONDUCTOR, Printed Circuit

9
83504267
FILTER, H/Beam Lamp

9
83504255
LENS, Cluster

10
83504257
CONDUCTOR, Printed Circuit
CONDUCTOR, Printed Circuit
10
83504262
CONDUCTOR, Printed Circuit
- CONDUCTOR, Printed Circuit

10
83504269
FILTER, Turn Signal Lamp
- Require Quantity: 2

11
83504262
CONDUCTOR, Printed Circuit

11
83505409
FILTER, Cluster

11
83504264
FILTER, Warning Lamp
U.S. 1987
11
83504265
FILTER, Warning Lamp
- Canada, Export 1987
11
83504863
FILTER, Warning Lamp
- U.S. 1988-89
11
83505256
FILTER, Warning Lamp
- Canada, Export 1988-89

12
83504264
FILTER , Warning Lamps U.S.A. 1987
FILTER , Warning Lamps U.S.A. 1987
12
83504265
FILTER , Warning Lamps U.S.A. 1987
- Canada 1987
12
83504863
FILTER , Warning Lamps U.S.A. 1987
- U.S.A. 1988/90
12
83504890
FILTER , Warning Lamps U.S.A. 1987
- Diesel 1988/90
12
83505256
FILTER , Warning Lamps U.S.A. 1987
- Canada 1988/90

12
83504272
FILTER, Cluster

12
83504267
FILTER, High Beam Lamp

13
83504284
BEZEL, Temperature

13
83504267
FILTER, High Beam Lamp

13
83504269
FILTER, Turn Signal Lamp
- Require Quantity: 2

14
83504285
BEZEL, Cluster

14
83505408
FILTER, Low Fuel Warning Lamp

14
83504269
FILTER, Turn Signal Lamp
- Require Quantity: 2

15
83504282
BEZEL, Low Fuel Warning

15
83504274
BUSHING
- Require Quantity: 2

15
83504273
KNOB, Trip Odometer

16
83504274
BUSHING, Speedometer

16
83504275
GASKET

16
83504273
KNOB, Odometer

17
J8125723
BULB
Coded (74)
Require Quantity: 10
17
J9436789
BULB
- Coded (37)

17
83504274
BUSHING, Speedometer
- Require Quantity: 2

17
83504275
GASKET

18
83504275
GASKET

18
83504280
MODULE, Low Fuel Warning Lamp

18
J3697186
SOCKET
- Require Quantity: 15

19
J4488426
BULB
Coded (168)
19
J9417561
BULB
- Coded (161)
19
J9421330
BULB
- Coded (194)
- Require Quantity: 15

19
83504276
GROMMET

19
56001787
SOCKET
- Require Quantity: 10

20
83504276
GROMMET

20
83504277
SCREW, 14mm long
- Require Quantity: 7

20
J3697186
SOCKET
- Require Quantity: 12

21
83504278
SCREW, 32mm long
- Require Quantity: 11

21
J3697186
SOCKET
- Require Quantity: 15

21
56001787
SOCKET, Warning Lamp
- Require Quantity: 10

22
S0161860
SCREW

22
83504277
SCREW 13mm Long
- Require Quantity: 4

22
56001787
SOCKET
- Require Quantity: 10

23
J4488426
BULB
Coded (168)
23
J9417561
BULB
- Coded (161)
23
J9421330
BULB
- Coded (194)
- Require Quantity: 15

23
83504278
SCREW 32mm Long
- Require Quantity: 11

23
83504277
SCREW, 14mm Long
- Require Quantity: 4

24
83504235
DIAL, Shift, w/Column Shift

24
83504279
SCREW 13mm Long
- Require Quantity: 9

24
83504278
SCREW, 32mm Long
- Require Quantity: 11

25
83506061
CABLE, Selector, w/Column Shift

25
S0161860
SCREW

26
J8125723
BULB
Code (74)
Coded (74)
Require Quantity: 10
26
J9436789
BULB
- Coded (37)
26
J9436789
BULB
- Code (37)

27
J4488426
BULB
Code (168)
27
J9417561
BULB
- Code (161)
27
J9421330
BULB
- Code (194)
- Require Quantity: 12

27
83504279
SCREW, 13mm Long
- Require Quantity: 9

28
56001448
HOSE, Turbo Boost

28
83504281
MODULE, Low Fuel Warning

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1988 Jeep Cherokee parts. Parts like Instrument Cluster are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L, 6 Cyl 4.2L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Automatic Transmission, 5-Speed Manual Transmission.
