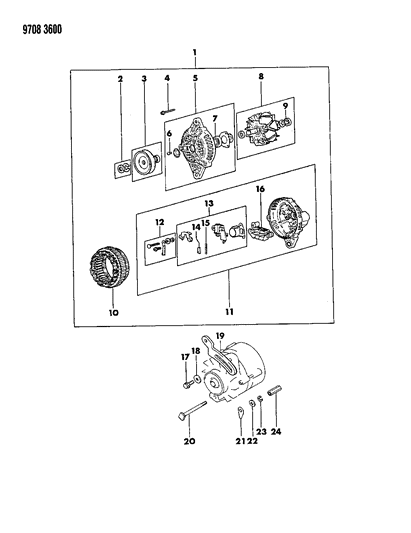

Diagram (1 of 1): ELECTRICAL ALTERNATOR F-ENGINE CONQUEST
1989 Chrysler Conquest Alternator Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    MD125569
    ALTERNATOR
    • ALTERNATOR
  • 1
    R125569M
    ALTERNATOR
    • ALTERNATOR
  • 2
    MM502340
    NUT SET
  • 3
    MD611265
    PULLEY
  • 4
    MD607963
    BOLT SET, Through
  • 5
    MD611227
    BRACKET, Front
  • 6
    MD611034
    SCREW SET
  • 7
    MD611343
    BEARING, Front
  • 8
    MD611273
    ROTOR
  • 9
    MD611150
    BEARING, Rear
  • 10
    MD611422
    STATOR
  • 11
    MD611498
    BRACKET, Rear
  • 12
    MD611431
    TERMINAL SET
  • 13
    MD611432
    IC REGULATOR
  • 14
    MD611035
    BRUSH
  • 15
    MD602227
    SPRING, Brush
  • 16
    MD611307
    RECTIFIER
  • 19
    MD027751
    BRACE, Alternator
  • 20
    MD102126
    BOLT
  • 21
    MD001517
    SHIM
  • 24
    MD001516
    NUT
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Conquest parts. Parts like Alternator are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.3L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
