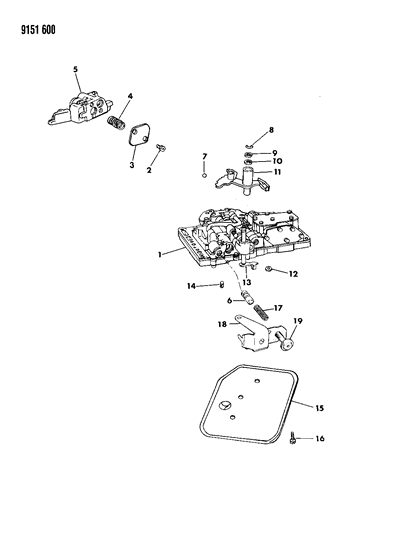

Diagram (1 of 1): TRANSMISSION, AUTO. VALVE BODY AUTOMATIC TRANSMISSION, A999,A727 M BODY

1989 Chrysler Fifth Avenue Valve Body Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4348759
VALVE BODY, w/Transfer Plate
w/4446368 Trans., Olive
1
4348761
VALVE BODY, w/Transfer Plate
- w/4471533 Trans., Blue
1
4412488
VALVE BODY, w/Transfer Plate
- w/4505207 Trans.
1
4505172
VALVE BODY, w/Transfer Plate
- w/4505171 Trans.
1
4505210
VALVE BODY, w/Transfer Plate
- w/4505209 Trans., A727

2
6030888
SCREW, Lock-Up Valve Body Cover, 10-24 x 7/16"
SCREW, Lock-Up Valve Body Cover, 10-24 x 7/16"
Require Quantity: 2
2
6030889
SCREW, Lock-Up Valve Body Cover, 10-24 x 7/16"
- 10-24 x 1"
- Require Quantity: 14

4
4202642
SPRING, Trans. Lock-Up Valve, w/4446368,4471533,4505207 Trans.
SPRING, Trans. Lock-Up Valve, w/4446368,4471533,4505207 Trans.
4
4202672
SPRING, Trans. Lock-Up Valve, w/4446368,4471533,4505207 Trans.
- SPRING, Trans. Lock-Up, 6.2#, w/4505171 Trans.

6
4202474
VALVE, Trans. Switch
VALVE, Trans. Switch
6
6030366
VALVE, Trans. Switch
- SCREW, L/U Valve Body to T/Plate, 10-24 x 1-1/2"
- Require Quantity: 2

7
147488
BALL, Manual Lever Detent, 11/32

8
6025857
E-RING, Throttle Valve Lever Shaft

9

2538062
WASHER, Throttle Valve Lever Shaft

10

2466548
SEAL, Throttle Valve Lever Shaft
$4.60 $3.12
1
Add To Cart

11
3410484
LEVER, w/Insulator Manual Valve

12
3878447
SEAL, Manual Valve Shaft

13
3681227
LEVER, Throttle Valve

14
3878313
SCREEN, Regulator Valve
- Replaced By: 4800298AA
$4.35 $2.95
1
Add To Cart

15

3515996
FILTER, Trans. Oil

16
6030895
SCREW, Oil Filter
- Require Quantity: 3

17
4130492
SPRING, L/U Switch Valve

18
3743840
BRACKET, Throttle Pressure Adj. Screw

19
104918
SCREW, Throttle Pressure Adjusting
BALL, Check Valve, 1/4" Dia.
19
6030609
SCREW, Throttle Pressure Adjusting
- SCREW, Throttle Pressure Adjusting

4057013
GASKET and SEAL PACKAGE, Valve Body and Servo, A727
4205872
GASKET and SEAL PACKAGE, Valve Body and Servo, A999
