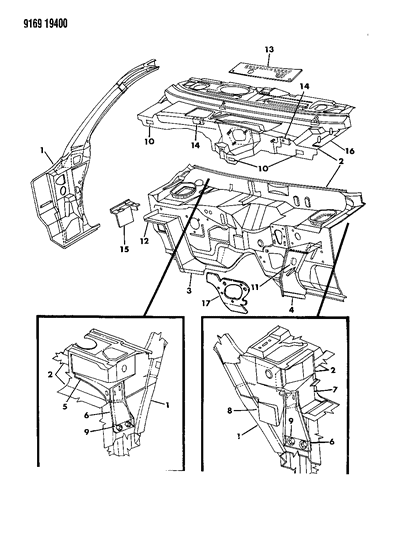

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS COWL AND DASH PANEL M BODY

1989 Chrysler Fifth Avenue Cowl & Dash Panel Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4475390
PANEL, Cowl Side, Right
PANEL, Cowl Side, Right
1
4475391
PANEL, Cowl Side, Right
- PANEL, Cowl Side, Left

2
4512449
PANEL, Cowl Top & Dash w/o A/C
PANEL, Cowl Top & Dash w/o A/C
2
4512454
PANEL, Cowl Top & Dash w/o A/C
- w/A/C

3
4198190
SUPPORT, Dash Pnl. To Fender Side Shield Lower Rt.

4
4198191
SUPPORT, Dash Pnl. To Fender Side Shield Lower Lt.

5
4136542
REINFORCEMENT, Dash Pnl. To Cowl Side Rt.

6
3793882
BRACKET, Cowl Side To Windshield Lower Corner Rt.
BRACKET, Cowl Side To Windshield Lower Corner Rt.
6
4040697
BRACKET, Cowl Side To Windshield Lower Corner Rt.
- Left

7
3793421
BRACKET, Dash Pnl. To Steering Column Reinforcement & Lower Corner Gusset Lt.

8
4136543
GUSSET, Windshield Lower Coner Lt.

9
181086
BOLT
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 220800
$8.55 $6.58
1
Add To Cart

10
3794032
SEAL, Cowl Top Drain Hole
SEAL, Cowl Top Drain Hole
Require Quantity: 2
Package Quantity: 1
10
3875949
SEAL, Cowl Top Drain Hole
- SEAL, Cowl Top Pnl. To w/Shield Outer Frame
- Require Quantity: 2

11

2811825
PLUG, Clutch Rod Hole

12
4198188
BRACKET, Dash Pnl. To Fender Side Shield To Rail Support w/Heavy Service Package, Right
BRACKET, Dash Pnl. To Fender Side Shield To Rail Support w/Heavy Service Package, Right
12
4198189
BRACKET, Dash Pnl. To Fender Side Shield To Rail Support w/Heavy Service Package, Right
- BRACKET, Dash Pnl. To Fender Side Shield To Rail Support w/Heavy Service Package, Left

13
3794196
SCREEN, Cowl Top Fresh Air Opening

14
4040880
BRACKET, Cowl Top Pnl. To Fender Strut w/Heavy Service Package, Right
BRACKET, Cowl Top Pnl. To Fender Strut w/Heavy Service Package, Right
14
4040881
BRACKET, Cowl Top Pnl. To Fender Strut w/Heavy Service Package, Right
- BRACKET, Cowl Top Pnl. To Fender Strut w/Heavy Service Package, Left

15
4136186
SUPPORT, Dash Pnl. To Fender Side Shield Upper, Right
SUPPORT, Dash Pnl. To Fender Side Shield Upper, Right
15
4136187
SUPPORT, Dash Pnl. To Fender Side Shield Upper, Right
- SUPPORT, Dash Pnl. To Fender Side Shield Upper, Left

16
4136191
REINFORCEMENT, Dash Pnl. Hood Hinge
- Require Quantity: 2

17
4136041
REINFORCEMENT, Dash Panel Accelerator Pedal (w/Heavy Serviced Package)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Fifth Avenue parts. Parts like Cowl & Dash Panel are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: 3-Speed Automatic Transmission, 8-Speed Automatic Transmission.
