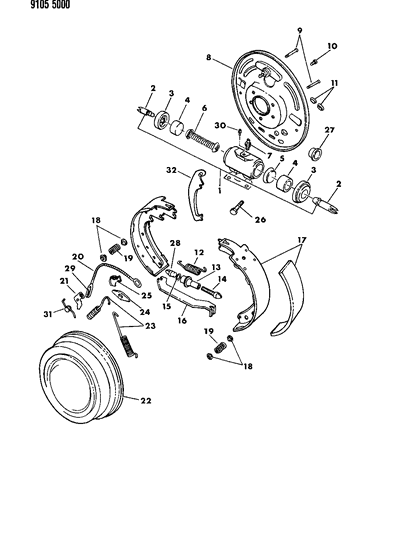

Diagram (1 of 1): BRAKES, SERVICE BRAKES, REAR DRUM M BODY

1989 Chrysler Fifth Avenue Brakes, Rear Drum Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3780525
CYLINDER, WHEEL, 10" and 11" Brakes, Less Push Rod
CYLINDER, WHEEL, 10" and 11" Brakes, Less Push Rod
Require Quantity: 2
Package Quantity: 1
1
3780524
CYLINDER, WHEEL, 10" and 11" Brakes, Less Push Rod
- CYLINDER PACKAGE, 10" and 11" Brakes, Repair
1
V2100525
CYLINDER, WHEEL, 10" and 11" Brakes, Less Push Rod
- Mopar V-Line Alternative Part Wheel Cylinder

2
2260787
ROD, Brake Cyl. Piston
- Require Quantity: 4
- Package Quantity: 1

3
2881618
BOOT, 10" and 11" Brakes (Also Serv. in Pkg. 3780524)
- Require Quantity: 4

4
2660325
PISTON, 10" and 11" Brakes
- Require Quantity: 4

7
3766674
SCREW, Bleeder
- Require Quantity: 2
- Package Quantity: 1

8
3699601
SUPPORT, Rear Wheel, w/10" Brakes
SUPPORT, Rear Wheel, w/10" Brakes
Require Quantity: 2
8
3699603
SUPPORT, Rear Wheel, w/10" Brakes
- w/11" Brakes
- Require Quantity: 2

9
4049681
PIN, Brake Shoe Hold Down Sprg.
WASHER and LOCK PACKAGE, Rear Wheel Brake Auto. Adjuster Lever
Require Quantity: 2
Package Quantity: 1
9
2260548
PIN, Brake Shoe Hold Down Sprg.
- PIN, Brake Shoe Hold Down Sprg.
- Require Quantity: 4
- Package Quantity: 1

10

6028921
SCREW, Whl. Brake Cyl. Mtg.

11
2072614
COVER, Brake Adjuster Screw Hole
- Require Quantity: 2
- Package Quantity: 1

12
2880555
SPRING, Auto. Adjuster Shoe, w/10" Brakes
w/11" Brakes
Require Quantity: 2
12
3766574
SPRING, Auto. Adjuster Shoe, w/10" Brakes
- SPRING, Auto. Adjuster Shoe, w/10" Brakes
- Require Quantity: 2

13
2944693
NUT, Auto. Adjuster Pivot Screw, Right
NUT, Auto. Adjuster Pivot Screw, Left
$5.17 $4.06
1
Add To Cart
13
2944692
NUT, Auto. Adjuster Pivot Screw, Right
- NUT, Auto. Adjuster Pivot Screw, Right

14
2881686
SCREW, Auto. Adjuster Pivot, Right
SCREW, Auto. Adjuster Pivot, Right
Replaced By: 4713356AB
$22.20 $19.35
1
Add To Cart
14
2881687
SCREW, Auto. Adjuster Pivot, Right
- SCREW, Auto. Adjuster Pivot, Left

15
6027559
WASHER, Auto. Adjuster Button

16
4126576
STRUT, Parking Brake Lever, w/11" Brakes, Right
STRUT, Parking Brake Lever, w/11" Brakes, Right
16
4126577
STRUT, Parking Brake Lever, w/11" Brakes, Right
- STRUT, Parking Brake Lever, w/11" Brakes, Left

17
4026648
SHOE and LINING PACKAGE, w/10" Brakes
w/11" Brakes
17
4364786
SHOE and LINING PACKAGE, w/10" Brakes
- SHOE and LINING PACKAGE, w/10" Brakes
17
V2020786
SHOE and LINING PACKAGE, w/10" Brakes
- Mopar V-Line Alternative Part

18
4126525
RETAINER, Brake Shoe Hold Down Spring
- Require Quantity: 4

19
4126525
SPRING, Brake Shoe Hold Down
- Require Quantity: 4

20
3461664
CABLE, Auto. Adjuster, Complete, w/10" Brakes
w/11" Brakes
Require Quantity: 2
Package Quantity: 1
20
3461663
CABLE, Auto. Adjuster, Complete, w/10" Brakes
- CABLE, Auto. Adjuster, Complete, w/10" Brakes
- Require Quantity: 2
- Package Quantity: 1
$9.17 $7.21
1
Add To Cart

21
3461665
LEVER, Auto. Adjuster
- Require Quantity: 2

22
3432698
DRUM, Rear Wheel, w/10" Brakes
BOLT
Require Quantity: 10
Package Quantity: 1
$25.01 $19.35
1
Add To Cart
22
3580565
DRUM, Rear Wheel, w/10" Brakes
- w/11" Brakes
- Require Quantity: 2
22
3880783
DRUM, Rear Wheel, w/10" Brakes
- DRUM, Rear Wheel, w/10" Brakes
- Require Quantity: 2

23
2260789
SPRING, Brake Shoe Return, w/10" Brakes
w/11" Brakes
Require Quantity: 4
Package Quantity: 1
23
2260835
SPRING, Brake Shoe Return, w/10" Brakes
- SPRING, Brake Shoe Return, w/10" Brakes
- Require Quantity: 4

24
2260788
PLATE, Brake Shoe Guide, w/10" Brakes
w/11" Brakes
Require Quantity: 2
24
2267045
PLATE, Brake Shoe Guide, w/10" Brakes
- PLATE, Brake Shoe Guide, w/10" Brakes
- Require Quantity: 2

25
2260793
GUIDE, Auto. Adjuster Cable
- Require Quantity: 2
- Package Quantity: 1

26
3723668
BOLT, Rr. Whl. Mtg.

27
3699549
PLUG, Park Brake Cable Hole

28
2944586
BUTTON, Auto. Adjuster
- Require Quantity: 2
- Package Quantity: 1

29
3461660
SPRING, Auto. Adjuster Cable
- Require Quantity: 2
- Package Quantity: 1

30
6028921
SCREW, Brake Cyl. Mtg.
- Require Quantity: 4
- Package Quantity: 1

31
2944580
SPRING, Rear Wheel Brake Auto. Adjuster Lever, Right
SPRING, Rear Wheel Brake Auto. Adjuster Lever, Right
31
2944581
SPRING, Rear Wheel Brake Auto. Adjuster Lever, Right
- SPRING, Rear Wheel Brake Auto. Adjuster Lever, Left

32
3880628
LEVER, Parking Brake, w/10" Brakes, Right
LEVER, Parking Brake, w/10" Brakes, Right
32
3880629
LEVER, Parking Brake, w/10" Brakes, Right
- LEVER, Parking Brake, w/10" Brakes, Left
32
3880630
LEVER, Parking Brake, w/10" Brakes, Right
- w/11" Brakes, Right
32
3880631
LEVER, Parking Brake, w/10" Brakes, Right
- w/11" Brakes, Left
