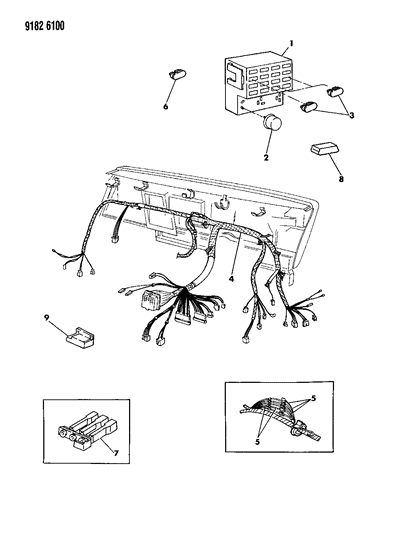

Diagram (1 of 1): ELECTRICAL - INSTRUMENT PANEL AND CONSOLES INSTRUMENT PANEL WIRING M BODY

1989 Chrysler Fifth Avenue Instrument Panel Wiring Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4124697
MODULE, Fuse Block
MODULE, Fuse Block
1
4414496
MODULE, Fuse Block
- BRACKET, Fuse Block Mtg.

2
2932877
FLASHER, Hazard Warning
FLASHER, Hazard Warning
2
3837161
FLASHER, Hazard Warning
- Two Lamp (FLASHER, Turn Signal)
2
3837162
FLASHER, Hazard Warning
- Three Lamp (FLASHER, Turn Signal)

3
3747809
BREAKER, Circuit
w/Police Relay Control System, 20Amp.
Require Quantity: 2
3
3747810
BREAKER, Circuit
- w/Police Relay Control System, 30Amp.
- Require Quantity: 2
3
3747851
BREAKER, Circuit
- BRACKET, Circuit Breaker, w/Police Control System
3
4186379
BREAKER, Circuit
- 30 Amp.
3
4331929
BREAKER, Circuit
- 6 Amp.

4
4124803
WIRING HARNESS, Instrument Panel
Relay Control, Police (WIRING, Instrument Panel)
4
4414694
WIRING HARNESS, Instrument Panel
- WIRING HARNESS, Instrument Panel
4
4414757
WIRING HARNESS, Instrument Panel
- Right Panel (WIRING, Instrument Panel)

5
4026093
CABLE, Fusible Link
No. 12 Black
5
4026094
CABLE, Fusible Link
- No. 14 Red
5
4026095
CABLE, Fusible Link
- No. 16 Blue
5
4026096
CABLE, Fusible Link
- No. 18 Grey
5
4364878
CABLE, Fusible Link
- No. 20 Orange

6
6101131
FUSES
3 Amp.
6
6101132
FUSES
- 4 Amp.
6
6101133
FUSES
- 5 Amp.
6
6101135
FUSES
- 10 Amp.
6
6101137
FUSES
- 20 Amp.
6
6101138
FUSES
- 25 Amp.
6
6101139
FUSES
- 30 Amp.

7
4124258
TERMINAL, Buss Bar
1 Way
7
4124752
TERMINAL, Buss Bar
- 3 Way

8
4373067
BUZZER, Key, H/Lamp and Seat Belt Warning

9
4312664
CONTROL, Chimes
CONTROL, Chimes
9
4374711
CONTROL, Chimes
- BRACKET, Chimes Control

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler Fifth Avenue parts. Parts like Instrument Panel Wiring are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: 3-Speed Automatic Transmission, 8-Speed Automatic Transmission.
