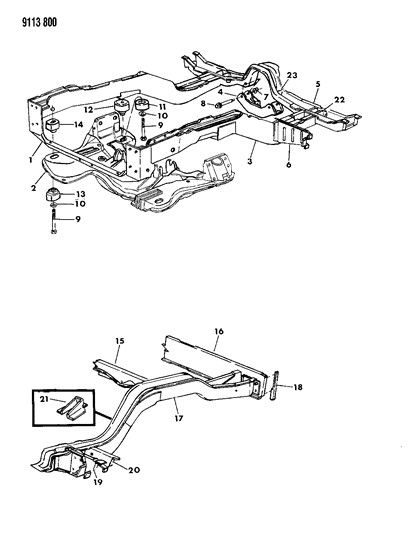

Diagram (1 of 1): FRAME & BUMPERS FRAME M BODY

1989 Chrysler Fifth Avenue Frame Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4296620
CROSSMEMBER, Front Side Rail, Front

2
4449089
CROSSMEMBER, Front Suspension, Complete

3
4129898
RAIL, w/Reinforcement, Front Side, Right
RAIL, w/Reinforcement, Front Side, Right
3
4129899
RAIL, w/Reinforcement, Front Side, Right
- RAIL, w/Reinforcement, Front Side, Left

4
4001797
CROSSMEMBER, Frame Trans. Mounting

5
4296617
CROSSMEMBER, Frt. Side Rail Rear

6
4314640
REINFORCEMENT, Front Side Rail to Side Sill, Inner, Right
REINFORCEMENT, Front Side Rail to Side Sill, Inner, Right
6
4314641
REINFORCEMENT, Front Side Rail to Side Sill, Inner, Right
- REINFORCEMENT, Front Side Rail to Side Sill, Inner, Left

7
152344
NUT, Std.
- Require Quantity: 2
- Package Quantity: 1
$6.25 $4.91
1
Add To Cart

8
6029550
BOLT, Std.
- Require Quantity: 2

9
6031150
BOLT, Body Hold Down
- Require Quantity: 4

10
4001701
WASHER, Body Hold Down
- Require Quantity: 4

11
4001552
ISOLATOR, Lower Cushion, Rear
- Require Quantity: 2

12
4001554
ISOLATOR, Upper Cushion, Rear
- Require Quantity: 2

13
4001596
ISOLATOR, Lower Cushion, Front
- Require Quantity: 2

14
4001595
ISOLATOR, Upper Cushion, Front
- Require Quantity: 2

15
4314665
CROSSMEMBER, Rr. Shock Absorber

16
4314663
CROSSMEMBER, Rr. Floor Pan Rear

17
4325152
RAIL, Floor Pan Rear Side, Right
RAIL, Floor Pan Rear Side, Right
17
4325153
RAIL, Floor Pan Rear Side, Right
- RAIL, Floor Pan Rear Side, Left

18
4015634
REINFORCEMENT, Rr. Floor Pan Rr. C/Member, w/H.D. Service Pkg.
- Require Quantity: 2

19
4325148
SUPPORT, w/Gusset, Center Floor Pan, Rear Suspension, Front Hangar Bracket, Right
SUPPORT, w/Gusset, Center Floor Pan, Rear Suspension, Front Hangar Bracket, Right
19
4325149
SUPPORT, w/Gusset, Center Floor Pan, Rear Suspension, Front Hangar Bracket, Right
- SUPPORT, w/Gusset, Center Floor Pan, Rear Suspension, Front Hangar Bracket, Left

21
4296684
BRACKET, Rear Side Rail Park Brake Cable
DOUBLER, Frt. S/Rail Frt. Susp. C/Member Reinf. Outer, Rt., H.D. (Not Illustrated), Right
21
4296685
BRACKET, Rear Side Rail Park Brake Cable
- DOUBLER, Frt. S/Rail Frt. Susp. C/Member Reinf. Outer, Rt., H.D. (Not Illustrated), Left
21
4296686
BRACKET, Rear Side Rail Park Brake Cable
- PLATE, Frt. S/Rail C/Member Reinf. Rear H.D. (Not Illustrated), Right
21
4296687
BRACKET, Rear Side Rail Park Brake Cable
- PLATE, Frt. S/Rail C/Member Reinf. Rear H.D. (Not Illustrated), Left
21
4314662
BRACKET, Rear Side Rail Park Brake Cable
- BRACKET, Rear Side Rail Park Brake Cable
- Require Quantity: 2

22
4296618
REINFORCEMENT, Front Side Rail Rear Crossmember Outer
- Require Quantity: 4

23
4296619
SPACER, Front Side Rail Rear Crossmember
- Require Quantity: 2
