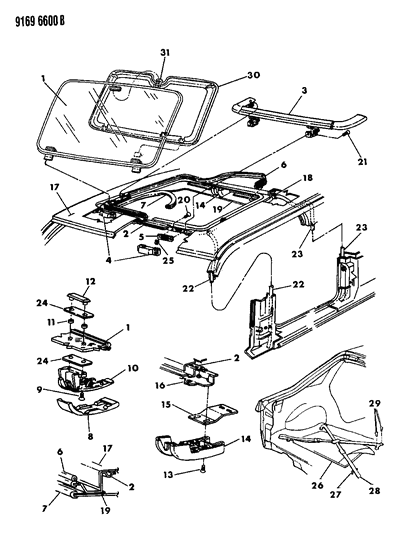

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS SUNROOF J BODY 21

1989 Chrysler LeBaron GTC Sunroof Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4172849
GLASS ASSEMBLY
SEAL, Secondary
1
4534065
GLASS ASSEMBLY
- GLASS ASSEMBLY

2
4534261
PANEL ROOF and TROUGH, Sunroof

3
4440097
DEFLECTOR ASSEMBLY

4
4341402
RETAINER ASSEMBLY, Hinge, Right
RETAINER ASSEMBLY, Hinge, Right
4
4341403
RETAINER ASSEMBLY, Hinge, Right
- RETAINER ASSEMBLY, Hinge, Left

6
4341860
SEAL PRIMARY

7
H775HC5
WELT
Blue
7
H775HL7
WELT
- Taupe
7
H775HR8
WELT
- Red
7
H775HS8
WELT
- Charcoal

8
H798FC5
COVER, Latch Handle
Blue
8
H798FS8
COVER, Latch Handle
- Charcoal
8
H798GL7
COVER, Latch Handle
- Taupe
8
H798GR8
COVER, Latch Handle
- Red

10
4440907
HANDLE ASSEMBLY

12
4467211
HINGE and T-PLATE, Package

14
AY33HC5
BASE ASSEMBLY
Blue After 2-20-89
14
AY33HL7
BASE ASSEMBLY
- Taupe After 2-20-89
14
AY33HR8
BASE ASSEMBLY
- Red After 2-20-89
14
AY33HS8
BASE ASSEMBLY
- Charcoal After 2-20-89
14
H799FC5
BASE ASSEMBLY
- Blue Up To 2-20-89
14
H799FS8
BASE ASSEMBLY
- Charcoal Up To 2-20-89
14
H799GL7
BASE ASSEMBLY
- Taupe Up To 2-20-89
14
H799GR8
BASE ASSEMBLY
- Red Up To 2-20-89

15
4490716
SUPPORT, Sunroof Trough To Roof Bow

17
4341414
PANEL, Roof

18
2448761
CLAMP, Sunroof Drain Hose
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

19
H087FC5
HEADLINER
Blue
19
H087FS8
HEADLINER
- Charcoal
19
H087GL7
HEADLINER
- Taupe
19
H087GR8
HEADLINER
- Red

22
4278799
HOSE, Front
- Require Quantity: 2

23
4026151
HOSE, Rear
- Require Quantity: 2

26
H608CX7
BAG, Stowage (Black)

27
4248818
ANCHOR, Tie Down Strap To Floor Pan
- Require Quantity: 4

28
H349CX9
STRAP, Sunroof Stowage Tie-Down

30
AY75HC5
SUNSHADE ASSEMBLY
Blue (After 3-31-89)
30
AY75HL7
SUNSHADE ASSEMBLY
- Taupe (After 3-31-89)
30
AY75HR8
SUNSHADE ASSEMBLY
- Red (After 3-31-89)
30
AY75HS8
SUNSHADE ASSEMBLY
- Charcoal (After 3-31-89)
30
H697HC5
SUNSHADE ASSEMBLY
- Blue (Up To 3-31-89)
30
H697HL7
SUNSHADE ASSEMBLY
- Taupe (Up To 3-31-89)
30
H697HR8
SUNSHADE ASSEMBLY
- Red (Up To 3-31-89)
30
H697HS8
SUNSHADE ASSEMBLY
- Charcoal (Up To 3-31-89)

31
4490492
LATCH, Sunshade Rear

4490500
HINGE, Sunroof Sunshade Front
- Require Quantity: 2

4341418
T-PLATE, Sunroof Latch Handle

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler LeBaron GTC parts. Parts like Sunroof are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
