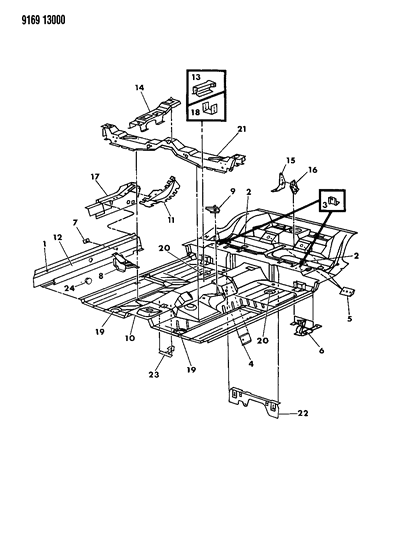

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS FLOOR PAN FRONT H BODY 44

1989 Chrysler LeBaron Floor Pan Front Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
2574792
PLUG, .75" Dia./19.5 mm
- Require Quantity: 2

2
4073475
PLUG, 1.50" Dia./38.1 mm
- Require Quantity: 2

3
4206904
RETAINER, Front Floor Pan Rear Seat Cushion
- Require Quantity: 2

4
4314259
REINFORCEMENT, Front Floor Pan Front Seat Belt Inner
- Require Quantity: 2

5
4314260
REINFORCEMENT, Front Floor Pan Rear Seat Belt Inner
- Require Quantity: 2

6
4475108
BRACKET, Front Floor Pan Lift Hoisting, Right
BRACKET, Floor Pan Side Sill Jacking
6
4475220
BRACKET, Front Floor Pan Lift Hoisting, Right
- BRACKET, Front Floor Pan Lift Hoisting, Right
6
4475221
BRACKET, Front Floor Pan Lift Hoisting, Right
- BRACKET, Front Floor Pan Lift Hoisting, Left

7
4314326
REINFORCEMENT, Front Seat Belt Outer
- Require Quantity: 2

8
4475468
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer, Right
8
4475469
REINFORCEMENT, Front Floor Pan Front Seat Rear Outer, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Outer, Left

9
4371816
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner, Right
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner, Right
9
4371817
REINFORCEMENT, Front Floor Pan Front Seat Rear Inner, Right
- REINFORCEMENT, Front Floor Pan Front Seat Rear Inner, Left

10
4416397
PAN, Front Floor

11
4314866
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer, Right
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer, Right
11
4314867
REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer, Right
- REINFORCEMENT, Front Floor Pan Rear Seat Belt Outer, Left

12
4475452
PANEL, Body Side Sill Inner, Right
PANEL, Body Side Sill Inner, Right
12
4475453
PANEL, Body Side Sill Inner, Right
- PANEL, Body Side Sill Inner, Left

13
4416417
BRACKET, Rear Console To Floor Pan

14
4416415
BRACKET, Front Console To Front Floor Pan

15
4337106
BRACKET, Front Floor Pan Rear Seat Back Center Pivot Rt.

16
4337161
BRACKET, Front Floor Pan Rear Seat Back Center Pivot Lt.

17
4371522
EXTENSION, Sill Inner Rear, Right
EXTENSION, Sill Inner Rear, Right
17
4371523
EXTENSION, Sill Inner Rear, Right
- EXTENSION, Sill Inner Rear, Left

19
5200456
PLUG, 2.75" Dia./69.9 mm
- Require Quantity: 2

20
2424864
PLUG, 1.75" Dia./44.5 mm
- Require Quantity: 2
- Package Quantity: 1
$14.00 $9.70
1
Add To Cart

21
4475485
CROSSMEMBER, Front Floor Pan Seat Track

24
3794032
SEAL, Side Sill Inner Panel Drain Hole
- Require Quantity: 2
- Package Quantity: 1

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler LeBaron GTS parts. Parts like Floor Pan Front are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
