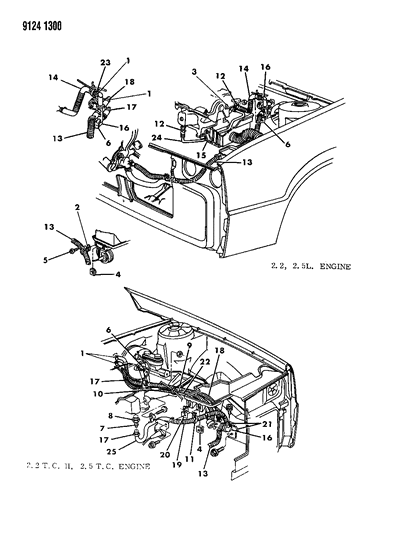

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, HEATER H BODY
1989 Chrysler LeBaron Plumbing - Heater Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    Chrysler 2448770
    Chrysler 2448770
    2448770
    CLAMP
    • Replaced By: 53041045
    $13.65 $9.15
    1
    Add To Cart
  • 2
    3849709
    CLIP, Heater Hose Mounting
  • 3
    153640
    CLAMP
  • 4
    6501750
    U-NUT, Heater Hose, Clip Mounting
  • 6
    4462077
    CLIP, Heater Dual Hose Mounting, w/2.2 & 2.5 Engine
    • CLIP, Heater Dual Hose Mounting, w/2.2 & 2.5 Engine
  • 6
    4462083
    CLIP, Heater Dual Hose Mounting, w/2.2 & 2.5 Engine
    • BRACKET, w/2.2 Turbo Engine
  • 7
    3848948
    WASHER, Heater Tube Flare
  • 8
    6032290
    CONNECTOR, Inverted Flare Tube, Thermostat Water By-Pass
  • 10
    2837876
    CONNECTOR, Vacuum Hose (In-Line)
  • 11
    6015731
    CLIP, Heater Hose Support
  • 12
    153640
    CLAMP
    • Require Quantity: 2
  • 14
    3849202
    HOSE, Heater, Engine to Valve
  • 15
    4273487
    BRACKET, Water By-Pass Attaching
  • 17
    1315466
    HOSE, Heater Core to Valve, w/2.2 & 2.5 Engine, 5/8" I.D., 50 Ft. Roll
    • HOSE, Heater Core to Valve, w/2.2 & 2.5 Engine, 5/8" I.D., 50 Ft. Roll
  • 17
    4462406
    HOSE, Heater Core to Valve, w/2.2 & 2.5 Engine, 5/8" I.D., 50 Ft. Roll
    • w/2.2 Turbo, 2.5 Turbo
  • 18
    1315466
    HOSE, Heater Valve to Core, w/2.2 & 2.5 Engine, 5/8", 50 FT. Roll
    • HOSE, Heater Valve to Core, w/2.2 & 2.5 Engine, 5/8", 50 FT. Roll
  • 18
    2277425
    HOSE, Heater Valve to Core, w/2.2 & 2.5 Engine, 5/8", 50 FT. Roll
    • w/2.2 Turbo, 2.5 Turbo
  • 19
    1315466
    HOSE, Heater Tube to Valve, 5/8" I.D., 50 Ft. Roll
    • HOSE, Heater Tube to Valve, 5/8" I.D., 50 Ft. Roll
  • 19
    4462374
    HOSE, Heater Tube to Valve, 5/8" I.D., 50 Ft. Roll
    • HOSE, A/C, Htr., Tube to Valve, w/2.2 Turbo II
  • 21
    4462092
    BRACKET, Heater Water Valve Mounting
    • Require Quantity: 2
  • 23
    3880050
    MUFFLER, Heater Hose, Emgine to Valve
  • 25
    4462592
    TUBE, Heater Engine to Hose
    • TUBE, Heater Engine to Hose
  • 25
    4462964
    TUBE, Heater Engine to Hose
    • HOSE, Water Valve to Oil Cooler (European)
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Chrysler LeBaron GTS parts. Parts like Plumbing - Heater are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.5L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
