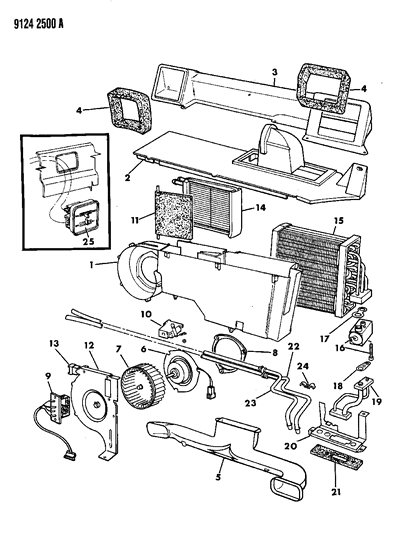

Diagram (1 of 1): HEATER AND AIR CONDITIONING REAR AIR CONDITIONING AND HEATER UNIT S BODY

1989 Dodge Caravan Rear A/C & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4462211
HOUSING

2
4462209
COVER, Aux. A/C and Heater Housing (Stamped 4192921)

3
4462212
DUCT, A/C and Heater Distribution

4
4462251
SEAL, Duct to Panel

5
4462227
DUCT, Distribution
- Require Quantity: 2

6
4494319
MOTOR, Blower

7
2837680
WHEEL, Blower Motor
CLAMP
$2.35 $1.31
1
Add To Cart
7
5210234
WHEEL, Blower Motor
- WHEEL, Blower Motor

8
3847476
SEAL, Blower Motor to Scroll Mounting

9
4462215
RESISTOR, Blower Motor

10
4462218
SERVO, Mode Door
$95.75 $64.80
1
Add To Cart

11
4462219
DOOR, Mode

12
4462210
COVER, Housing, Scroll

13
4373109
RELAY, Control

14
4462223
CORE, Heater and A/C
CORE, Heater and A/C
14
4462224
CORE, Heater and A/C
- SEAL, Core, Side
14
4462225
CORE, Heater and A/C
- SEAL, Core, Front
14
4462252
CORE, Heater and A/C
- SEAL, Core

15
V9900006
COIL, Evaporator
Mopar V-Line Alternative Part
15
3847116
COIL, Evaporator
- SEAL, Evaporator Coil, Front
15
3848151
COIL, Evaporator
- SEAL, Evaporator Coil, End
15
4462220
COIL, Evaporator
- COIL, Evaporator
15
V9900024
COIL, Evaporator
- Mopar V-Line Alternative Part

16
4462228
VALVE ASSEMBLY, Expansion

17
3846836
GASKET, Expansion Valve Mounting
$5.00 $3.41
1
Add To Cart

18
3846834
GASKET, Plumbing Extension to Expansion Valve

19
4462229
EXTENSION, A/C Plumbing

20
4462230
PLATE, Plumbing

21
4462231
SEAL, PLumbing Plate

22
4462234
TUBE, Hose Extension (In-Board)
$69.50 $54.61
1
Add To Cart

23
4462233
TUBE, Hose Extension (Out-Board)
$82.68 $64.98
1
Add To Cart

24
3849711
BRACKET, Mounting
SEAL, Heater Air Outlet
24
4462217
BRACKET, Mounting
- WIRING, Aux. A/C, Heater
24
4462226
BRACKET, Mounting
- PAD, Hose Isolator
- Require Quantity: 2
24
4462253
BRACKET, Mounting
- BRACKET, Mounting
24
4462254
BRACKET, Mounting
- PAD, Isolator
- Require Quantity: 2

25
3849148
CONTROL
KNOB, Control
Require Quantity: 2
25
3849953
CONTROL
- CONTROL
25
4373255
CONTROL
- SWITCH, Rear Blower (I/Pnl.)
25
4462222
CONTROL
- LAMP SOCKET, Aux. A/C and Heater Control

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Caravan parts. Parts like Rear A/C & Heater Unit are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
