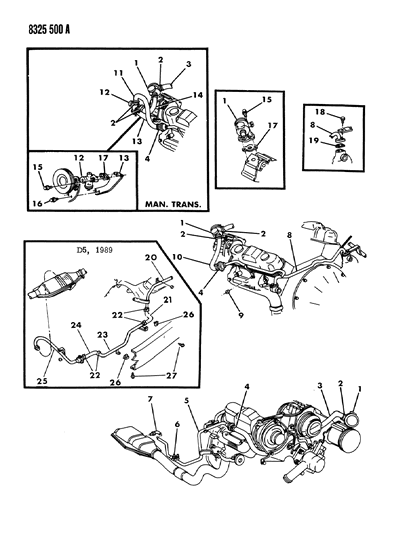

Diagram (1 of 1): EMISSION SYSTEMS AIR PUMP TUBING 3.9L ENGINE N,D BODY
1989 Dodge Dakota Air Pump Tubing Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4227670
    VALVE, Air Switch and Relief
  • 3
    4300389
    HOSE, Air Switch Valve to Exhaust Check Valve Downstream
  • 4
    Dodge 2448761
    Dodge 2448761
    2448761
    CLAMP
    • Require Quantity: 2
    • Package Quantity: 1
    • Replaced By: 33000784
    $4.95 $3.28
    1
    Add To Cart
  • 5
    4307832
    TUBE, Downstream - Front
    • TUBE, Downstream - Front
    • Fitting Vehicle Options: D
  • 5
    4307834
    TUBE, Downstream - Front
    • Fitting Vehicle Options: 5, N
  • 5
    4324542
    TUBE, Downstream - Front
    • Fitting Vehicle Options: 1, N
  • 6
    4241788
    CLAMP, Downstream Front Tube to Downstream Rear Tube
  • 7
    4268923
    TUBE, Downstream - Rear
    • 1989
    • Fitting Vehicle Options: 5, N
  • 7
    4307820
    TUBE, Downstream - Rear
    • 1988
    • Fitting Vehicle Options: 5, N
  • 7
    4307833
    TUBE, Downstream - Rear
    • Calif.
    • Fitting Vehicle Options: D
  • 7
    4324549
    TUBE, Downstream - Rear
    • Fitting Vehicle Options: 1, N
  • 7
    4458210
    TUBE, Downstream - Rear
    • Federal
    • Fitting Vehicle Options: D
  • 8
    4458201
    TUBE, Crossover
  • 9
    6025004
    NUT
  • 10
    4300487
    HOSE, Air Switch Valve to Check Valve - Auto. Trans.
  • 11
    4287365
    HOSE, Upstream Diverter Valve to Check Valve
  • 13
    4287363
    BRACKET, Diverter Valve Mounting
  • 14
    4287364
    HOSE, Upstream Air Switch Valve to Diverter Valve
  • 15
    6500423
    BOLT
  • 17
    4179700
    GASKET, Air Switch and Relief Valve or Diverter Valve
  • 20
    4268935
    TUBE, Front Catalyst Air Injection 1989
  • 21
    4227161
    HOSE, Front Catalyst Injection Tube 1989
  • 22
    Dodge 2448761
    Dodge 2448761
    2448761
    CLAMP 1989
    • Require Quantity: 4
    • Package Quantity: 1
    • Replaced By: 33000784
    $4.95 $3.28
    1
    Add To Cart
  • 23
    4300093
    TUBE, Catalyst Air Injection Frame Mounting 1989
  • 24
    4227163
    HOSE, Catalyst Injection Frame Tube 1989
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Dakota parts. Parts like Air Pump Tubing are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.9L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
