3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.N LT. DUTY P-UP SEAT--FRONT N BODY TRIM CODE A2,B2

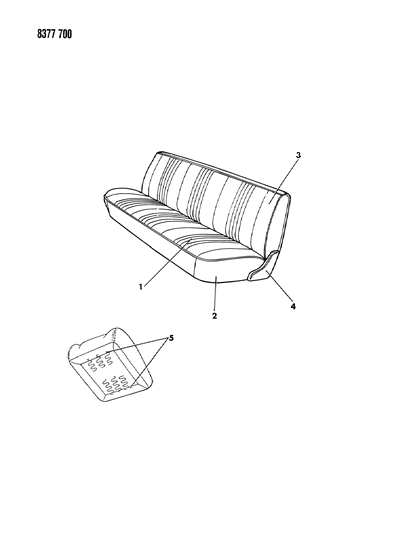

    1989 Dodge Dakota Front Seat Diagram 1
  • 2.N LT. DUTY P-UP SEAT--FRONT N BODY TRIM CODE P3,S3,SHELBY

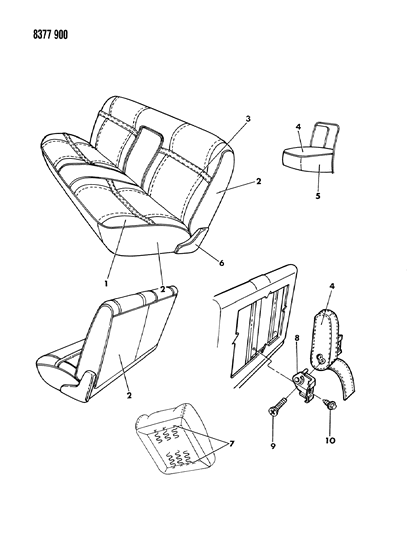

    1989 Dodge Dakota Front Seat Diagram 2
  • 3.N LT. DUTY P-UP SEAT--FRONT N BODY TRIM CODES B1,C1,C2,D2

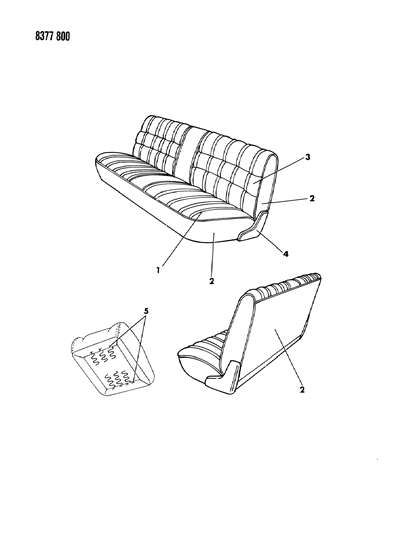

    1989 Dodge Dakota Front Seat Diagram 3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4508247
    COVER, Cushion
    • Bordeaux, (Shelby Monogrammed) (CLOTH)
  • 1
    L182G2A
    COVER, Cushion
    • Silver / Charcoal, (A2AS) (1988) (VINYL)
  • 1
    L182G2C
    COVER, Cushion
    • Blue, (A2C, B2C) (VINYL)
  • 1
    L182G2K
    COVER, Cushion
    • Almond, (A2K, B2K) (VINYL)
  • 1
    L182H2R
    COVER, Cushion
    • Bordeaux, (A2R,B2R) (VINYL)
  • 1
    L183G1A
    COVER, Cushion
    • Silver / Charcoal, (B1AS, C1AS) (1988) (CLOTH)
  • 1
    L183G1C
    COVER, Cushion
    • Blue, (B1C, C1C) (CLOTH)
  • 1
    L183G1K
    COVER, Cushion
    • Almond, (B1K, C1K) (CLOTH)
  • 1
    L183H1R
    COVER, Cushion
    • Bordeaux, (B1R,C1R) (CLOTH)
  • 1
    L239G2A
    COVER, Cushion
    • Silver / Charcoal, (C2AS, D2AS) (CLOTH)
  • 1
    L239G2C
    COVER, Cushion
    • Blue, (C2C, D2C) (CLOTH)
  • 1
    L239G2K
    COVER, Cushion
    • Almond, (C2K, D2K) (CLOTH)
  • 1
    L240G3A
    COVER, Cushion
    • Silver / Charcoal, (P3AS) (1988) (CLOTH)
  • 1
    L240G3C
    COVER, Cushion
    • Blue, (P3C) (CLOTH)
  • 1
    L240G3K
    COVER, Cushion
    • Almond, (P3K) (CLOTH)
  • 1
    L240H3R
    COVER, Cushion
    • Bordeaux, (P3R) (CLOTH)
  • 1
    L495H3R
    COVER, Cushion
    • Bordeaux, (S3R) (CLOTH)
  • 1-2
    L230G2A
    CUSHION, w/Spring, Frame Pad and Cover
    • Silver / Charcoal (G2AS, D2AS) (CLOTH)
  • 1-2
    L230G2C
    CUSHION, w/Spring, Frame Pad and Cover
    • Blue, (C2C, D2C) (CLOTH)
  • 1-2
    L230G2K
    CUSHION, w/Spring, Frame Pad and Cover
    • Almond, (C2K, D2K) (CLOTH)
  • 1-2
    L293G1A
    CUSHION, w/Spring, Frame Pad and Cover
    • Silver / Charcoal, (B1AS, C1AS) (1988) (CLOTH)
  • 1-2
    L293G1C
    CUSHION, w/Spring, Frame Pad and Cover
    • Blue, (B1C, C1C) (CLOTH)
  • 1-2
    L293G1K
    CUSHION, w/Spring, Frame Pad and Cover
    • Almond, (B1K, C1K) (CLOTH)
  • 1-2
    L293H1R
    CUSHION, w/Spring, Frame Pad and Cover
    • Bordeaux, (B1R,C1R) (CLOTH)
  • 1-2
    4508246
    CUSHION, w/Spring, Frame, Pad and Cover
  • 1-2
    L292G2A
    CUSHION, w/Spring, Frame, Pad and Cover
    • Silver / Charcoal, (A2AS) (1988) (VINYL)
  • 1-2
    L292G2C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (A2C, B2C) (VINYL)
  • 1-2
    L292G2K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (A2K, B2K) (VINYL)
  • 1-2
    L292H2R
    CUSHION, w/Spring, Frame, Pad and Cover
    • Bordeaux, (A2R,B2R) (VINYL)
  • 1-2
    L348H3R
    CUSHION, w/Spring, Frame, Pad and Cover
    • Bordeaux, (S3R) (CLOTH)
  • 1-2
    L350G3A
    CUSHION, w/Spring, Frame, Pad and Cover
    • Silver / Charcoal, (P3AS) (1988) (CLOTH)
  • 1-2
    L350G3C
    CUSHION, w/Spring, Frame, Pad and Cover
    • Blue, (P3C) (CLOTH)
  • 1-2
    L350G3K
    CUSHION, w/Spring, Frame, Pad and Cover
    • Almond, (P3K) (CLOTH)
  • 1-2
    L350H3R
    CUSHION, w/Spring, Frame, Pad and Cover
    • Bordeaux, (P3R) (CLOTH)
  • 2
    R615EC5
    ROLL STOCK, Vinyl 54" Order By The Inch
  • 2
    R632CS8
    ROLL STOCK, Vinyl 54" Order By The Inch
    • Charcoal, (1988)
  • 2
    R632EK1
    ROLL STOCK, Vinyl 54" Order By The Inch
    • Almond
  • 2
    R632HR8
    ROLL STOCK, Vinyl 54" Order By The Inch
    • Bordeaux
  • 2
    R609CS8
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
  • 2
    R629EC5
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
  • 2
    R629EK1
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
  • 2
    R629HR8
    ROLL STOCK, Vinyl 54" Wide Order By The Inch
  • 2
    R609CS8
    ROLL STOCK, Vinyl, 54" Wide, Order By The Inch
  • 2
    R629EC5
    ROLL STOCK, Vinyl, 54" Wide, Order By The Inch
  • 2
    R629EK1
    ROLL STOCK, Vinyl, 54" Wide, Order By The Inch
  • 2
    R629HR8
    ROLL STOCK, Vinyl, 54" Wide, Order By The Inch
  • 2-3
    L278E2A
    BACK, w/Spring, Frame, Pad and Cover
    • Charcoal / Silver, (A2AS) (VINYL)
  • 2-3
    L278E2C
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (A2C) (VINYL)
  • 2-3
    L278E2K
    BACK, w/Spring, Frame, Pad and Cover
    • Almond, (A2K) (VINYL)
  • 2-3
    L278G2C
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (A2C, B2C) (1989)
  • 2-3
    L278G2K
    BACK, w/Spring, Frame, Pad and Cover
    • Almond, (A2K, B2K) (1989)
  • 2-3
    L278H2R
    BACK, w/Spring, Frame, Pad and Cover
    • Bordeaux, (A2R,B2R) (1989)
  • 2-3
    L279E1A
    BACK, w/Spring, Frame, Pad and Cover
    • Silver / Charcoal, (B1AS, C1AS) (1988) (CLOTH)
  • 2-3
    L279E1C
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (B1C, C1C) (CLOTH)
  • 2-3
    L279E1K
    BACK, w/Spring, Frame, Pad and Cover
    • Almond, (B1K, C1K) (CLOTH)
  • 2-3
    L279H1R
    BACK, w/Spring, Frame, Pad and Cover
    • Bordeaux, (B1R,C1R) (CLOTH)
  • 2-3
    L280E2A
    BACK, w/Spring, Frame, Pad and Cover
    • Silver / Charcoal, (C2AS, D2AS) (CLOTH)
  • 2-3
    L280E2C
    BACK, w/Spring, Frame, Pad and Cover
    • Blue, (C2C, D2C) (CLOTH)
  • 2-3
    L280E2K
    BACK, w/Spring, Frame, Pad and Cover
    • Almond, (C2K, D2K) (CLOTH)
  • 2-3
    4508244
    BACK, w/Spring/Frame, Pad and Cover
  • 2-3
    L346H3R
    BACK, w/Spring/Frame, Pad and Cover
    • Bordeaux, (S3R) (CLOTH)
  • 2-3
    L351G3A
    BACK, w/Spring/Frame, Pad and Cover
    • Silver / Charcoal, (P3AS) (1988) (CLOTH)
  • 2-3
    L351G3C
    BACK, w/Spring/Frame, Pad and Cover
    • Blue, (P3C) (CLOTH)
  • 2-3
    L351G3K
    BACK, w/Spring/Frame, Pad and Cover
    • Almond, (P3K) (CLOTH)
  • 2-3
    L351H3R
    BACK, w/Spring/Frame, Pad and Cover
    • Bordeaux, (P3R) (CLOTH)
  • 3
    4508245
    COVER, Back
    • Bordeaux, (Shelby Monogrammed) (CLOTH)
  • 3
    L246E2A
    COVER, Back
    • Silver / Charcoal, (A2AS) (VINYL)
  • 3
    L246E2C
    COVER, Back
    • Blue, (A2C) (VINYL)
  • 3
    L246E2K
    COVER, Back
    • Almond, (A2K) (VINYL)
  • 3
    L246G2C
    COVER, Back
    • Blue, (A2C, B2C) (1989)
  • 3
    L246G2K
    COVER, Back
    • Almond, (A2K, B2K) (1989)
  • 3
    L246H2R
    COVER, Back
    • Bordeaux, (A2R,B2R) (1989)
  • 3
    L247G3A
    COVER, Back
    • Silver / Charcoal, (P3AS) (1988) (CLOTH)
  • 3
    L247G3C
    COVER, Back
    • Blue, (P3C) (CLOTH)
  • 3
    L247G3K
    COVER, Back
    • Almond, (P3K) (CLOTH)
  • 3
    L247H3R
    COVER, Back
    • Bordeaux, (P3R) (CLOTH)
  • 3
    L248E1A
    COVER, Back
    • Silver / Charcoal, (B1AS, C1AS) (1988) (CLOTH)
  • 3
    L248E1C
    COVER, Back
    • Blue, (B1C, C1C) (CLOTH)
  • 3
    L248E1K
    COVER, Back
    • Almond, (B1K, C1K) (CLOTH)
  • 3
    L248H1R
    COVER, Back
    • Bordeaux, (B1R,C1R) (CLOTH)
  • 3
    L250E2A
    COVER, Back
    • Silver / Charcoal, (C2AS, D2AS) (CLOTH)
  • 3
    L250E2C
    COVER, Back
    • Blue, (C2C, D2C) (CLOTH)
  • 3
    L250E2K
    COVER, Back
    • Almond, (C2K, D2K) (CLOTH)
  • 3
    L494H3R
    COVER, Back
    • Bordeaux, (S3R) (CLOTH)
  • 4
    L253G3A
    ARMREST and COVER
    • Silver / Charcoal, (P3AS) (1988)
  • 4
    L253G3C
    ARMREST and COVER
    • Blue, (P3C)
  • 4
    L253G3K
    ARMREST and COVER
    • Almond, (P3K)
  • 4
    L253H3R
    ARMREST and COVER
    • Bordeaux, (P3R)
  • 4
    L349H3R
    ARMREST and COVER
    • Bordeaux, S3R)
  • 4
    S528EC5
    COVER, Hinge Arm
    • Blue, Right
  • 4
    S528EK1
    COVER, Hinge Arm
    • Almond, Right
  • 4
    S528ES8
    COVER, Hinge Arm
    • Charcoal, (1988), Right
  • 4
    S528HR8
    COVER, Hinge Arm
    • Bordeaux
      Bordeaux, Right
  • 4
    S529EC5
    COVER, Hinge Arm
    • Blue, Left
  • 4
    S529EK1
    COVER, Hinge Arm
    • Almond, Left
  • 4
    S529ES8
    COVER, Hinge Arm
    • Charcoal, (1988), Left
  • 4
    S529HR8
    COVER, Hinge Arm
    • Bordeaux, Left
  • 5
    L194HR8
    COVER, Armrest
    • Bordeaux, (S3R)
  • 5
    L245EAS
    COVER, Armrest
    • Silver / Charcoal, (P3AS) (1988)
  • 5
    L245EC5
    COVER, Armrest
    • Blue, (P3C)
  • 5
    L245EK1
    COVER, Armrest
    • Almond, (P3K)
  • 5
    L245HR8
    COVER, Armrest
    • Bordeaux, (P3R)
  • 6
    S528EC5
    COVER, Hinge Arm
    • Blue, Right
  • 6
    S528EK1
    COVER, Hinge Arm
    • Almond, Right
  • 6
    S528ES8
    COVER, Hinge Arm
    • Charcoal, (1988), Right
  • 6
    S528HR8
    COVER, Hinge Arm
    • Bordeaux, Right
  • 6
    S529EC5
    COVER, Hinge Arm
    • Blue, Left
  • 6
    S529EK1
    COVER, Hinge Arm
    • Almond, Left
  • 6
    S529ES8
    COVER, Hinge Arm
    • Charcoal, (1988), Left
  • 6
    S529HR8
    COVER, Hinge Arm
    • Bordeaux, Left
  • 10
    6032567
    SCREW
