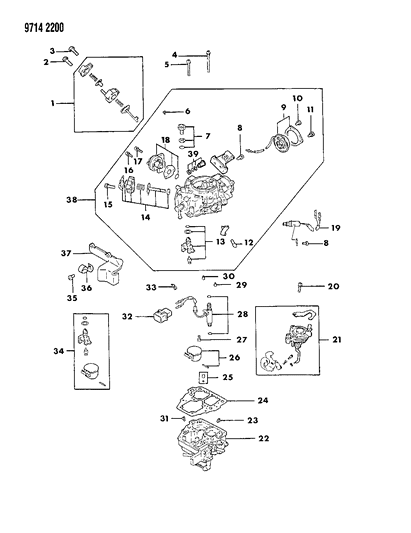

Diagram (1 of 1): FUEL CARBURETOR INNER PARTS - W ENGINE 27 RAIDER

1989 Dodge Raider Carburetor Inner Parts Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MD617170
BREAKER PACKAGE, Choke

2
MF350031
SCREW and WASHER (4x25mm)
- Require Quantity: 2

3
MF350030
SCREW and WASHER (4x22mm)

4
MD606948
SCREW and WASHER (5x65mm)
- Require Quantity: 3

5
MF350061
SCREW and WASHER (5x45mm)

6
MD600194
JET, Econostat (#70)

7
MD612697
SCREW and WASHER PACKAGE

8
MF350048
SCREW and WASHER (5x12mm)
- Require Quantity: 3
- Package Quantity: 1

9
MD612758
BIMETAL

10
MD612752
RIVET
- Require Quantity: 2

11
MF350026
SCREW and WASHER (4x14mm)
- Require Quantity: 4

12
MF350023
SCREW and WASHER (4x8mm)
- Require Quantity: 2

13
MD617036
VALVE PACKAGE, Needle

14
MD612742
VALVE PACKAGE, Bowl Vent

15
MF350029
SCREW and WASHER (4x20mm)
- Require Quantity: 3

16
MF350053
SCREW and WASHER, w/Manual Transmission (5x22mm)
- Require Quantity: 2

17
MF350056
SCREW and WASHER, w/Manual Transmission (5x30mm)

18
MD612845
VALVE PACKAGE, Mixture Control, w/Manual Transmission

19
MD612807
VALVE, Solenoid (Deceleration)

20
MF350054
SCREW and WASHER (5x25mm)
- Require Quantity: 2

21
MD612837
OPENDER PACKAGE, Throttle w/Manual Transmission

22
MD612794
BODY, Mixing w/Manual Transmission

23
MD600045
JET, Main (#190)

24
MD612573
GASKET, Float Chamber Cover

25
MD612733
VALVE PACKAGE, Pump Check

26
MD612213
FLOAT and PIN PACKAGE

27
MF350024
SCREW and WASHER (4x10mm)

28
MD612831
VALVE, Solenoid (Feed-Back)

29
MD600027
JET, Enrichment (#55)

30
MD600194
JET, Econostat (#70)

31
MD600721
JET, Main (#107.5)

32
MD612833
CONNECTOR PACKAGE

33
MD608632
CLIP
- Require Quantity: 3

34
MD617037
FLOAT and NEEDLE VALVE PKG.

35
MF350047
SCREW and WASHER (5x10mm)
- Require Quantity: 4
- Package Quantity: 1
$1.90 $1.14
1
Add To Cart

36
MD612846
CLIP

37
MD612834
BRACKET

38
MD617034
COVER, Float Chamber
w/Manual Transmission, Exc. Calif. and Canada
38
MD617118
COVER, Float Chamber
- w/Manual Transmission, Calif.
38
MD617122
COVER, Float Chamber
- w/Manual Transmission, Canada

39
MD617226
ORIFICE KIT

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Raider parts. Parts like Carburetor Inner Parts are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.6L, 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
