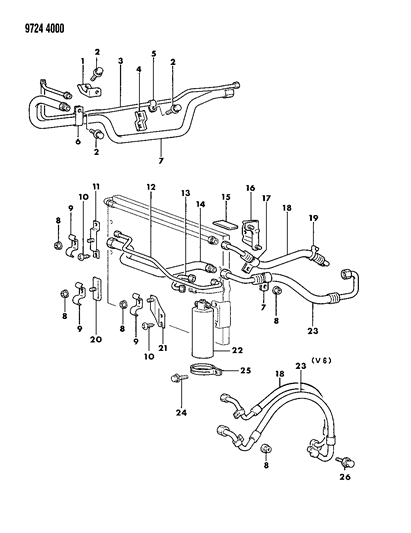

Diagram (1 of 1): HEATER AND AIR CONDITIONING PLUMBING, AIR CONDITIONER 27 RAIDER

1989 Dodge Raider Plumbing - A/C Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
MB272689
BRACKET, Unloader Pipe

2
MF243623
BOLT (6x14)
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: MS240141
$1.70 $1.16
1
Add To Cart

3
MB239943
PIPE, Outlet
W Engine
3
MB568420
PIPE, Outlet
- V Engine

4
MB239947
BRACKET, Outlet Pipe

5
MB239068
CLAMP

6
MB272687
CLAMP, Piping

7
MB239945
PIPE, Suction (B)
W Engine
7
MB568421
PIPE, Suction (B)
- V Engine

8
MS440512
NUT and WASHER (6)
- Require Quantity: 5
- Package Quantity: 1

9
MB239924
CLAMP, Piping
- Require Quantity: 3

10
MF453091
SCREW, Tapping (5x12)
- Require Quantity: 2
- Package Quantity: 1
$3.43 $2.10
1
Add To Cart

11
MB239911
BRACKET, Unloader Pipe

12
MB609323
PIPE, Unloader

13
MB239497
PIPE, Outlet (C)

14
MB609324
PIPE, Suction

15
MB568699
GROMMET, Piping

16
MB272860
BRACKET, Outlet Pipe

17
MF477025
CLIP
(12)
17
MF477026
CLIP
- (15)

18
MB568492
HOSE, Discharge
V Engine
18
MB609204
HOSE, Discharge
- W Engine

19
MB167999
CLIP, Piping

20
MB239912
PLATE

21
MB239910
BRACKET, Outlet Pipe

22
MB199882
RECEIVER

23
MB568494
HOSE, Suction
V Engine
23
MB609206
HOSE, Suction
- W Engine

24
MS240918
BOLT and WASHER (6x20 4t)
- Require Quantity: 2

25
MB199868
BRACKET, Receiver
- Require Quantity: 2

26
MF244855
BOLT and WASHER (8x30 7t)
- Require Quantity: 2
- Package Quantity: 1

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Raider parts. Parts like Plumbing - A/C are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.6L, 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
