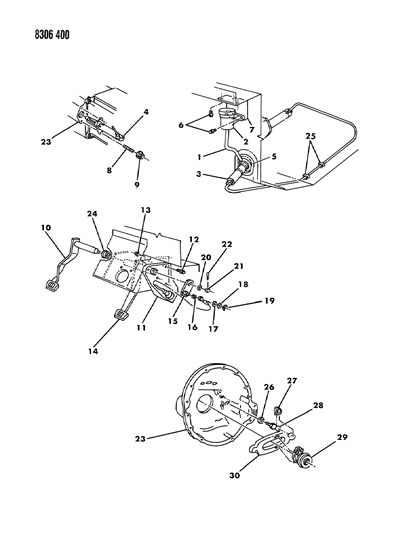

Diagram (1 of 1): CLUTCH CONTROLS, HYDRAULIC CLUTCH B BODY WITH 3.9L ENGINE

1989 Dodge Ram Van Controls, Hydraulic Clutch Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4340251
HYDRAULIC CLUTCH PACKAGE, (Consists of Items 2 Thru 5)

7
4377722
BRACKET, Reservoir Mounting

8
6032878
STUD, Slave Cylinder Mtg.
- Require Quantity: 2
- Package Quantity: 1
$8.65 $5.85
1
Add To Cart

9
118614
NUT, Slave Cylinder Mtg. Stud, 5/16-18
- Require Quantity: 2
- Package Quantity: 1

10
4089163
PEDAL, Clutch
PAD, Clutch Pedal
10
4446352
PEDAL, Clutch
- PEDAL, Clutch

11
4340246
BRACKET, Master Cylinder Mounting

15
4340244
LEVER, Clutch Control

18
905206
WASHER, Lever Rod, Wave

19
6501640
RING, Push Rod, Retaining

20
0120394
WASHER, Lever, Flat 3/8

21
0125237
NUT, Lever to Cl. Pedal Shaft, 3/8-24

24
4294639
BUSHING, Clutch Pedal Shaft
- Require Quantity: 2
- Package Quantity: 1
$10.00 $6.77
1
Add To Cart

27

4338855
SPRING, Release Fork Pivot Retaining
$10.60 $7.17
1
Add To Cart

28
4428426
PIVOT, Clutch Release Fork

29
4338856
BEARING ASSEMBLY, w/Sleeve, Clutch Release

30
4338854
FORK, Clutch Release

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Ram Van parts. Parts like Controls, Hydraulic Clutch are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
