3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

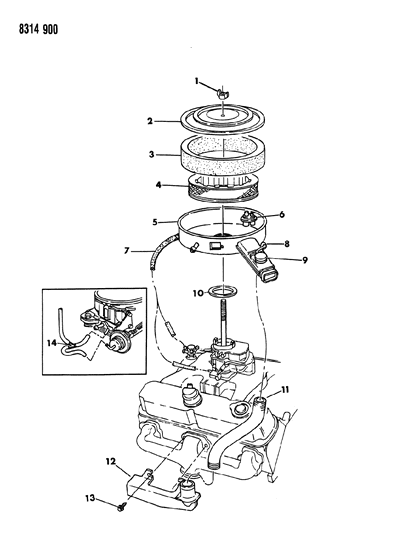

- 1.FUEL AIR CLEANER 3.9L ENGINE B,N BODY

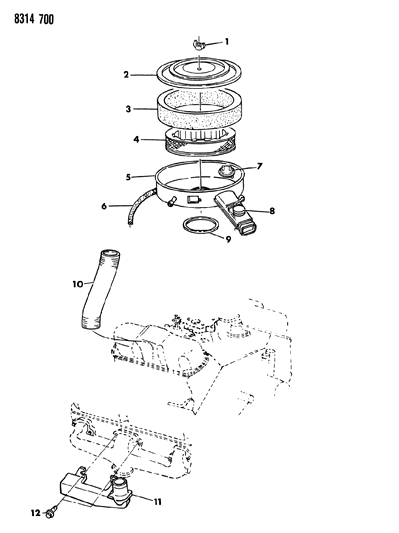

- 2.FUEL AIR CLEANER 318 ENGINE B,D BODY 1989
- 3.FUEL AIR CLEANER 360 ENGINE B,D BODY
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2 2
4504026COVER, Air Cleaner
3
4287141FILTER, Air Cleaner 4713715FILTER, Air Cleaner
4
4504028BODY, Air Cleaner- BODY, Air Cleaner
- Fitting Vehicle Options: B
4
4504030BODY, Air Cleaner- Fitting Vehicle Options: N
4
1739547
FILTER, Air Cleaner
5
4275473BODY, Air Cleaner- Fitting Vehicle Options: B
5
4306951BODY, Air Cleaner- w/Heavy Duty Engine 1988
- Fitting Vehicle Options: D
5
4306952BODY, Air Cleaner- 1988
- Fitting Vehicle Options: D
5
4307100BODY, Air Cleaner- Dual Snorkel 1988
- Fitting Vehicle Options: B
5
4324427BODY, Air Cleaner- 1989
- Fitting Vehicle Options: B
5
4324493BODY, Air Cleaner- 1989
- Fitting Vehicle Options: D
5
4324494BODY, Air Cleaner- BODY, Air Cleaner
- Fitting Vehicle Options: B
5
4458163BODY, Air Cleaner- 1989
- Fitting Vehicle Options: D
5
4458359BODY, Air Cleaner- Single Snorkle, After 2-1-89
- Fitting Vehicle Options: D
5
4504031BODY, Air Cleaner- Dual Snorkle
- Fitting Vehicle Options: B
5
4504032BODY, Air Cleaner- Single Snorkle, Up To 2-1-89
- Fitting Vehicle Options: D
5
4287149MOTOR, Vacuum- use w/4300867, 4458405 and 4459018 Air Cleaner
- Fitting Vehicle Options: B,N
5
4287373MOTOR, Vacuum- use w/4307205 Air Cleaner
- Fitting Vehicle Options: B
5
4300466MOTOR, Vacuum- use w/4307867 and 4458418 Air Cleaner
- Fitting Vehicle Options: N
6
3514168
SENSOR, Air Cleaner Temp.
6
4240062
SENSOR, Air Cleaner Temp.
6
4342765
SENSOR, Air Cleaner Temp.
6
4307791SENSOR, Temperature- use w/4307867, 4307205 and 4458418 Air Cleaner
6
4342765SENSOR, Temperature- use w/4300867, 4458405 and 4459018 Air Cleaner
7
4342765
SENSOR, Temperature
8
4268933DIAPHRAGM, Air Cleaner Snorkel Vacuum- Fitting Vehicle Options: B
8
4306953DIAPHRAGM, Air Cleaner Snorkel Vacuum- Fitting Vehicle Options: D
8
4300471TUBE, Vacuum- use w/4307867, 4307205 and 4458418 Air Cleaner
8
4300791TUBE, Vacuum- use w/4300867, 4457405 and 4459018 Air Cleaner
8
4201385
VALVE, Heated Air Vacuum - 1988
9
4306349DIAPHRAGM, Air Cleaner Snorkel Vacuum- Calif. and High Alt. 1988
9
4306953DIAPHRAGM, Air Cleaner Snorkel Vacuum 9
4324115DIAPHRAGM, Air Cleaner Snorkel Vacuum- Vapor Door - Calif. and High Alt. 1988
9
4397641DIAPHRAGM, Air Cleaner Snorkel Vacuum
9
4100602GASKET, Air Cleaner to Throttle Body- GASKET, Air Cleaner to Throttle Body
9
4300887GASKET, Air Cleaner to Throttle Body- GASKET, Air Cleaner to Throttle Body
10
4100602GASKET, Air Cleaner to Carburetor or Throttle Body 10
4300887GASKET, Air Cleaner to Carburetor or Throttle Body
11
3828385HEATER, AIr- Fitting Vehicle Options: D
11
4164314HEATER, AIr- HEATER, AIr
- Fitting Vehicle Options: B
11
4323725HEATER, Air- Fitting Vehicle Options: N
11
4387669HEATER, Air- HEATER, Air
- Fitting Vehicle Options: B
12
3828385HEATER, Carburetor Air- Fitting Vehicle Options: D
12
4164314HEATER, Carburetor Air- HEATER, Carburetor Air
- Fitting Vehicle Options: B
12
6031857SCREW and WASHER- SCREW and WASHER
- Fitting Vehicle Options: B
- Require Quantity: 2
