2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

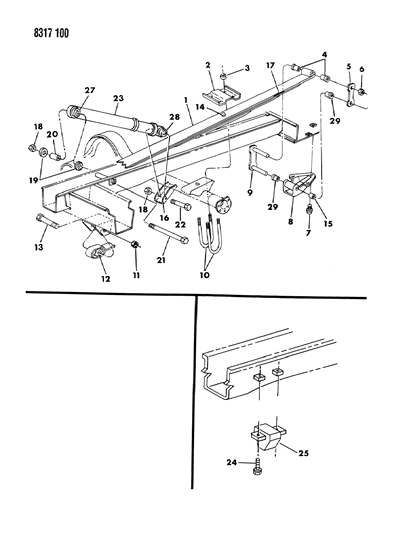

- 1.REAR SUSPENSION SUSPENSION, REAR LEAF WITH SHOCK ABSORBER B1,2

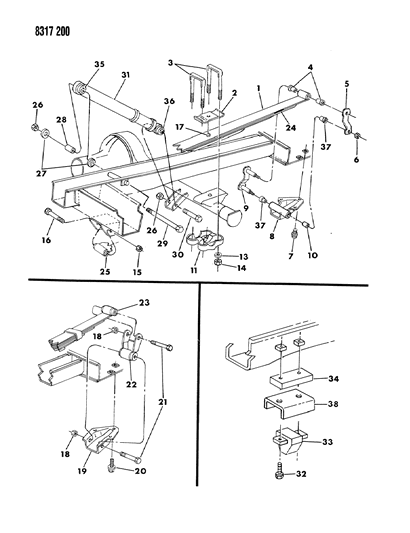

- 2.REAR SUSPENSION SUSPENSION, REAR LEAF WITH SHOCK ABSORBER B3
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 14228426
REAR SPRINGS- 1200/1375 LB. (SNB)
- Fitting Vehicle Options: B1
- Require Quantity: 2
- 14228427
REAR SPRINGS- 1400/1610 LB. (SND)
- Fitting Vehicle Options: B1
- Require Quantity: 2
- 14228428
REAR SPRINGS- 1600/1810 LB. (SNE)
- Fitting Vehicle Options: B1,2
- Require Quantity: 2
- Package Quantity: 1
- 14228429
REAR SPRINGS- 1800/1980 LB. (SNG)
1800/1980 Lb. (SNG) - Fitting Vehicle Options: B1,2
- Require Quantity: 2
- Package Quantity: 1
- 1800/1980 LB. (SNG)
- 14228430
REAR SPRINGS- 2100/2360 Lb. (SNJ)
- Require Quantity: 2
- 14228431
REAR SPRINGS- 2400/2670 Lb. (1988)(SNK)
- Require Quantity: 2
- 14228432
REAR SPRINGS- 2500/2770 Lb. (SNK, SNL)
- Require Quantity: 2
- 14228433
REAR SPRINGS- 2750/3100 Lb.,7 Leaf (SNM)
- Require Quantity: 2
- 14420351
REAR SPRINGS- (1989)(SNK)
- Require Quantity: 2
- 23492343
PLATE, Rear Spring w/8 3/8,9 1/4 Axle(1988)- Require Quantity: 2
- 24420352
PLATE, Rear Spring w/8 3/8,9 1/4 Axle(1988)- Require Quantity: 2
- 23496266
SEAT, Clip- Require Quantity: 2
- 31829929
CLIP, Spring w/ 2750# & 3400# Spring- INSULATOR, Alignment Clip
- Require Quantity: 4
- 32808399
CLIP, Spring w/ 2750# & 3400# Spring- SPRING PACKAGE, Alignment Clip
- Require Quantity: 2
- Package Quantity: 1
- 33633999
CLIP, Spring w/ 2750# & 3400# Spring- w/ 2100# 2400# & 2500# Spring
- Require Quantity: 4
- Package Quantity: 1
$66.18 $52.011 - 34228068
CLIP, Spring w/ 2750# & 3400# Spring- CLIP, Spring w/ 2750# & 3400# Spring
- Require Quantity: 4
- Package Quantity: 1
- 3
- 4
- 4
- 53514978
PLATE, Shackle-1800,2100,2400,2500 lb.spring at pad in 4131313 shackle pkg.-item 9- SHACKLE and PIN PACKAGE (PLATE, Shackle-1750,2300 lb.spring at pad-in 3514978 shackle pkg.-item 5)
- Require Quantity: 2
- 5
4210985
PLATE, Shackle-1800,2100,2400,2500 lb.spring at pad in 4131313 shackle pkg.-item 9- BRACKET, Rear susp.shackle rebound stop-2400 lb. Spd. At Pad (271502 Nut (2))
- Require Quantity: 2
- 6
- 6
- 76031240
SCREW, Bracket to frame-7/13-14 x 1.25- Require Quantity: 6
- 76031240
SCREW, Braket To Frame- Require Quantity: 6
- 8
- 8
- 8
4039356
BRACKET, w/SLEEVE, Shackle-With 1200, 1400, 1600# Spring at Pad- BRACKET, w/SLEEVE, Shackle-With 1200, 1400, 1600# Spring at Pad
- Require Quantity: 2
- 84089314
BRACKET, w/SLEEVE, Shackle-With 1200, 1400, 1600# Spring at Pad- BRACKET, Shackle w/ 1800# Spring At Pad, Right
$52.93 $41.591 - 8
- 9
4131313
SHACKLE and BUSHING PACKAGE, Rear Spring- Require Quantity: 2
- 9
4131312
SHACKLE and BUSHING PACKAGE, w/1200,1400,1600 Lb. Spirng- SHACKLE and BUSHING PACKAGE, w/1200,1400,1600 Lb. Spirng
- Require Quantity: 2
- Package Quantity: 1
- 94131313
SHACKLE and BUSHING PACKAGE, w/1200,1400,1600 Lb. Spirng- SHACKLE and BUSHING PKG., Rear w/1800 Lb. Sprg. (152346 NUT,Pin (2))
- Require Quantity: 2
- 101829929
CLIP, Spring-1/2-20x6.25-2" Thd. (1988)- INSULATOR, Alignment Clip
- Require Quantity: 4
- 102808399
CLIP, Spring-1/2-20x6.25-2" Thd. (1988)- SPRING PACKAGE, Aligment Clip
- Require Quantity: 2
- Package Quantity: 1
- 103491295
CLIP, Spring-1/2-20x6.25-2" Thd. (1988)- CLIP, Spring-1/2-20x6.25-2" Thd. (1988)
- Require Quantity: 4
- Package Quantity: 1
- 10
3491296
CLIP, Spring-1/2-20x6.25-2" Thd. (1988)- (1989)
- Require Quantity: 4
- 11
- 111799970
PLATE, Sprg. Clip, w/Dana 60 H.D. Rr. Axle- w/Chry. H.D. Rr. Axle
- Require Quantity: 2
- 112226998
PLATE, Sprg. Clip, w/Dana 60 H.D. Rr. Axle- PLATE, Sprg. Clip, w/Dana 60 H.D. Rr. Axle
- Require Quantity: 2
- 123898814
BUSHING, Rear Spring Eye
- 13
- 14$18.84 $14.801
- 142953358
BOLT, Rear Spring Main Center- 3/8-24 x 1.75
- 142961234
BOLT, Rear Spring Main Center- 3/8-24 x 2.125
- 146029459
NUT, Clip Lock-9/16-18- Require Quantity: 8
- 15
- 16
- 17
- 17$18.84 $14.801
- 172953358
BOLT, Rear Main Spring Center- 3/8-24 x 1.75
- 172961233
BOLT, Rear Main Spring Center- 3/8-24 x 1.5
- 172961234
BOLT, Rear Main Spring Center- 3/8-24 x 2.125
- 174228368
INTERLINER, Leaf Spring
- 19
- 19
- 206031240
SCREW, Brkt. To Frame- Require Quantity: 6
- 20
4116580
SPACER, Pivot Bushing Retainer- Require Quantity: 2
- 219431957
BOLT, 1/2-13 x 6.75- Require Quantity: 2
- 223496094
BRACKET, Shackle w/ 2750# & 3400# Spring- Require Quantity: 2
- 23
3640089
BUSHING, Rr. Spring Eye or Shackle- 2"O.D.x 5/8"I.D. x 3" Long
- 233821247
BUSHING, Rr. Spring Eye or Shackle- 2.00-O.D. x .628 I.D.x 3.108" Long
- 233898814
BUSHING, Rr. Spring Eye or Shackle- 3 O.D.x 5/8 I.D. x 3" Long
- 232229479
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- Require Quantity: 2
- 234039137
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- BUSHING, Shock Absorber Upper Mounting
- Require Quantity: 4
- Package Quantity: 1
- 234086418
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- w/H.D. w/1-3/16 Dia. (1988)
- Require Quantity: 2
- 234364772
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)
- Require Quantity: 2
- 234443484
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- w/H.D. (1989)
- Require Quantity: 2
- 234447390
SHOCK ABSORBER, PKG. Std. w/1.00 Dia. (1988)- w/Std. (1989)
- Require Quantity: 2
- 243492073
INTERLINER, Leaf Spring- 2 1/2 x 2 1/2 x 5/16" Bolt Hole
- 244228368
INTERLINER, Leaf Spring- INTERLINER, Leaf Spring
- 25
3400611
BUMPER, Rear Spring- Require Quantity: 2
- 253640089
BUSHING, Rr. Spring Front Eye - 2100 Lb.- 2500 Lb.
- Require Quantity: 2
- 253821247
BUSHING, Rr. Spring Front Eye - 2100 Lb.- 2700 Lb.
- Require Quantity: 2
- 254086937
BUSHING, Rr. Spring Front Eye - 2100 Lb.- BUSHING, Rr. Spring Front Eye - 2100 Lb.
- Require Quantity: 2
- 26
- 27
- 27
- 284116580
SPACER, Pivot Bushing Retainer- Require Quantity: 2
- 299431957
BOLT, 1/2-13 x 6.75- Require Quantity: 2
- 312229479
SHOCK ABSORBER, PKG. Std. w/1.00 Dia.- BUSHING, Rear Shock Absorber-With 3600,4000 Lb.
- Require Quantity: 2
- 314039137
SHOCK ABSORBER, PKG. Std. w/1.00 Dia.- BUSHING, Shock Absorber Upper Mounting
- Require Quantity: 4
- Package Quantity: 1
- 314086418
SHOCK ABSORBER, PKG. Std. w/1.00 Dia.- H.D. w/ 1-3/16 Dia.
- Require Quantity: 2
- 314364772
SHOCK ABSORBER, PKG. Std. w/1.00 Dia.- SHOCK ABSORBER, PKG. Std. w/1.00 Dia.
- Fitting Vehicle Options: B3
- Require Quantity: 2
- 326027044
SCREW, w/Washer Rr. Bumper
- 33
3496691
BUMPER, Rear Spring- Require Quantity: 2
- 344210785
SPACER, Rr. Axle Bumper Frame- Require Quantity: 2
- 35
- 38
4147687
RESTRICTOR, Rear Bumper Jounce- Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge Ram Van parts. Parts like Suspension - Rear Leaf With Shock Absorber are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
