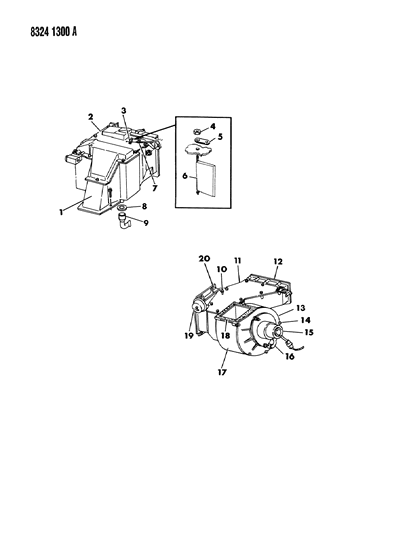

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT B,T MODELS

1989 Dodge Ram Wagon Air Conditioner & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4114060
HOUSING, A/C Evaporator Coil

2
4114053
COVER, w/SEAL, Evaporator Coil

3
6031132
CLIP, Temp. Control Cable

4
0219462
NUT, A/C Blend Air Door Lvr. Ret.

5
4114087
LEVER, w/PIN, A/C Blend Door Control

6
4114451
DOOR, A/C Blend Air

7
6003464
CLIP, A/C Blend Air Door Control Cable Mounting

9
3848827
TUBE, A/C Unit Drain

10
0219462
LEVER, A/C Recirc Door
NUT, A/C Recirc Door Lever Ret.
10
4114095
LEVER, A/C Recirc Door
- LEVER, A/C Recirc Door

11
4114033
COVER, w/SEAL, Recirc Housing

12
4114096
SEAL, A/C Recirc Hsg to Dash

13
4114044
PLATE, A/C Recirc Motor Back

14
6006065
NUT, A/C Motor Mounting
BUSHING, A/C Motor Mounting
14
6025402
NUT, A/C Motor Mounting
- NUT, A/C Motor Mounting

15
4274936
MOTOR, Seal, A/C. Blower
INSULATOR, A/C Motor Terminal
15
4494308
MOTOR, Seal, A/C. Blower
- MOTOR, Seal, A/C. Blower

16
3503040
TUBE, A/C Motor Cooling

17
4114036
HOUSING, w/STUD, A/C Recirculating

18
4114052
SEAL, A/C Evap Coil Hsg to Recirc Hsg

19
4114038
ACTUATOR, A/C Recirc Door
$0.00

20
4261048
CLIP, A/C Recir. Vac. Act. Shaft Mtg.
RESISTOR, A/C Blower
20
6008145
CLIP, A/C Recir. Vac. Act. Shaft Mtg.
- CLIP, A/C Recir. Vac. Act. Shaft Mtg.

2837680
CLAMP, A/C Wheel to Motor
$2.35 $1.31
1
Add To Cart

4494320
COIL, A/C Evaporator Compelete

4106138
CORE, A/C and Heater

4114039
DOOR, w/SEAL, A/C Recirculator

4114051
SEAL, A/C Evap. Hsg. to Dash

3848151
SEAL, A/C Evaporator Coil Hair Pin End

3847116
SEAL, A/C Evaporator Coil Ret Bend End

3503036
SEAL, A/C Motor to Scroll Cover

3843386
TERMINAL, A/C Motor

3503859
WHEEL, A/C Blower
