Diagram (1 of 1): ENGINE, 6 CYLINDER TIMING GEAR AND CASE 5.9 L DIESEL

1989 Dodge W150 Timing Gear & Case Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4429836
GASKET, Gear Housing

2
4429411
HOUSING, Gear

3
4429633
SCREW, Hex. Head Cap Front Cover
- Require Quantity: 10
- Package Quantity: 1
$8.45 $5.68
1
Add To Cart

4

4429629
SCREW, Hex. Head Cap Front Cover
$8.05 $5.39
1
Add To Cart

5
4429693
SEAL, Retainer Ring

6
4429934
HOUSING, Timing

7
4429994
O-RING, Front Cover

8
4429924
PIN, Front Cover Timing
$33.90 $22.87
1
Add To Cart

9
4429849
RING, Retaining Front Cover

10
4429998
SCREW, Round Head Cap
- Require Quantity: 2
- Package Quantity: 1

11
4429500
GASKET, Gear Cover

12
4429203
COVER, Gear

13

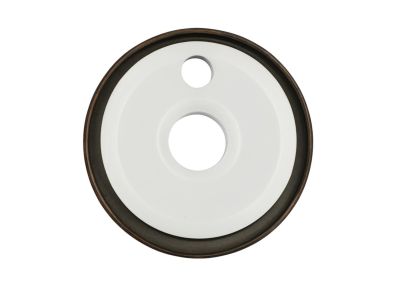

4429353
SEAL, Oil
- Replaced By: 68027026AA

15
4429431
GEAR, Camshaft

16
4429446
SCREW, Hex. Head Cap Housing Cover

17
4429622
RETAINER, Belt

18
4429422
DAMPER, Vibration Rubber
DAMPER, Vibration Rubber
18
R4429422
DAMPER, Vibration Rubber
- (Reman.)

19
4429857
SCREW, Damper Cap
- Require Quantity: 4
- Package Quantity: 1
$20.80 $14.02
1
Add To Cart

20
4429258
GEAR, Crankshaft

21
4429414
GEAR, Oil Pump (Serviced in Oil Pump)

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1989 Dodge W150 parts. Parts like Timing Gear & Case are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.9L, 6 Cyl 5.9L Diesel, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission, 8-Speed Automatic Transmission, Open, Open (BEV) Gearbox.
