2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.BODY - SHEET METAL EXCEPT DOORS SOFT TOP HARDWARE WITH FULL HARD DOORS WRANGLER, YJ
- 2.BODY - SHEET METAL EXCEPT DOORS SOFT TOP HARDWARE WITH HALF DOORS WRANGLER, YJ
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
5252835
BOW AND DOOR FRAME ASSEMBLY
1
83505016
BOW AND DOOR FRAME ASSEMBLY
1
82200599
RETAINER, Windshield
2
82200921
RETAINER, Windshield
2-3
55013678FLANGE, Door Sealing Front , Right- FLANGE, Door Sealing Front , Right
2-3
55013679FLANGE, Door Sealing Front , Right- FLANGE, Door Sealing Front , Left
3
83505015BRACKET, Windshield, Right- BRACKET, Windshield, Left
4
83503382

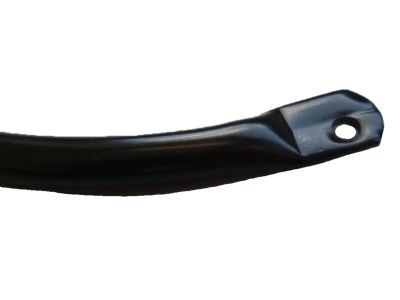

BOW ASSEMBLY, Front Roof
4
83505252
BOW ASSEMBLY, Front Roof
4
83505017RETAINER, Side Belt Rail
5
83503381
BOW ASSEMBLY, Rear Roof
5
55010754
RETAINER, Tailgate Opening
6-7
55010744RAIL, Upper Door Drip, Right- RAIL, Upper Door Drip, Right
6-7
55010745RAIL, Upper Door Drip, Right- RAIL, Upper Door Drip, Left
7
55010734RETAINER, Rear Corner Belt Rail
9
J4007487SCREW, .38" Long- SCREW, .38" Long
- Require Quantity: 15
9
55015378STUD, (Includes Clip)
11
55013673SLIDER, Drip Rail Lock
11
13
13-14
55015110RETAINER, Side Belt Rail 13-14
13-14
55018024RETAINER, Side Belt Rail- Front, KDX w/103" W.B., Right
- Fitting Vehicle Options: 82
13-14
55018025RETAINER, Side Belt Rail- Front, KDX w/103" W.B., Left
- Fitting Vehicle Options: 82
13-14
55018028RETAINER, Side Belt Rail- Rear, KDX, w/103" W.B., Right
- Fitting Vehicle Options: 82
13-14
55018029RETAINER, Side Belt Rail- Rear, KDX, w/103" W.B., Left
- Fitting Vehicle Options: 82
13-14
13-14
15
55010754
RETAINER, Tailgate Opening, w/Seal
17
55010734RETAINER, Rear Corner Belt Rail
17
21
24
82200921
RETAINER, Windshield
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1989
Jeep Wrangler parts. Parts like Soft Top Hardware are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.2L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
