2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

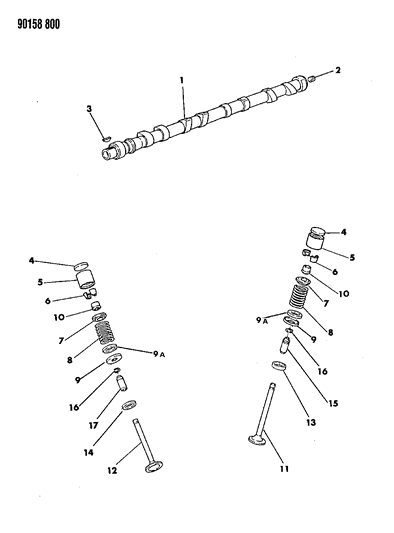

  • 1.ENGINE, 4 CYLINDER CAMSHAFT AND VALVES 2.2 L ENGINE (16 VALVE)
    1990 Chrysler TC Maserati Camshaft & Valves Diagram 1
  • 2.ENGINE, 6 CYLINDER CAMSHAFT & VALVES 3.0 L ENGINE
    1990 Chrysler TC Maserati Camshaft & Valves Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4425970
    CAMSHAFT
    • Require Quantity: 2
  • 2
    4425614
    PLUG
    • Require Quantity: 2
  • 2
    Chrysler MD090578
    MD090578
    WASHER, Camshaft Sprocket
    • Require Quantity: 2
  • 3 Chrysler 6500150
    6500150
    KEY
    • Require Quantity: 2
    • Package Quantity: 1
    $19.35
    1
    Add To Cart
  • 4
    MD100679
    BELT, Timing
    • BELT, Timing
    • Replaced By: 5096327AB
  • 4
    TB000139
    BELT, Timing
    • Mopar V-Line Alternative Part
  • 4
    TBK10139
    BELT, Timing
    • Mopar Alternative Part (Timing Belt Kit- Includes belt, roller(s), and/or an idler)
  • 4
    4425400
    SHIM, Valve Lash Adj. 2.50MM
    • SHIM, Valve Lash Adj. 2.50MM
  • 4
    4425401
    SHIM, Valve Lash Adj. 2.50MM
    • 2.55MM
  • 4
    4425402
    SHIM, Valve Lash Adj. 2.50MM
    • 2.60MM
  • 4
    4425403
    SHIM, Valve Lash Adj. 2.50MM
    • 2.65MM
  • 4
    4425404
    SHIM, Valve Lash Adj. 2.50MM
    • 2.70MM
  • 4
    4425405
    SHIM, Valve Lash Adj. 2.50MM
    • 2.75MM
  • 4
    4425406
    SHIM, Valve Lash Adj. 2.50MM
    • 2.80MM
  • 4
    4425407
    SHIM, Valve Lash Adj. 2.50MM
    • 2.85MM
  • 4
    4425408
    SHIM, Valve Lash Adj. 2.50MM
    • 2.90MM
  • 4
    4425409
    SHIM, Valve Lash Adj. 2.50MM
    • 2.95MM
  • 4
    4425410
    SHIM, Valve Lash Adj. 2.50MM
    • 3.00MM
  • 4
    4425411
    SHIM, Valve Lash Adj. 2.50MM
    • 3.05MM
  • 4
    4425412
    SHIM, Valve Lash Adj. 2.50MM
    • 3.10MM
  • 4
    4425413
    SHIM, Valve Lash Adj. 2.50MM
    • 3.15MM
  • 4
    4425414
    SHIM, Valve Lash Adj. 2.50MM
    • 3.20MM
  • 4
    4425415
    SHIM, Valve Lash Adj. 2.50MM
    • 3.25MM
  • 4
    4425416
    SHIM, Valve Lash Adj. 2.50MM
    • 3.30MM
  • 4
    4425417
    SHIM, Valve Lash Adj. 2.50MM
    • 3.35MM
  • 4
    4425418
    SHIM, Valve Lash Adj. 2.50MM
    • 3.40MM
  • 4
    4425419
    SHIM, Valve Lash Adj. 2.50MM
    • 3.45MM
  • 4
    4425420
    SHIM, Valve Lash Adj. 2.50MM
    • 3.50MM
  • 4
    4425421
    SHIM, Valve Lash Adj. 2.50MM
    • 3.55MM
  • 5
    4425968
    BUCKET, Tappet Valve Actuating
    • Require Quantity: 16
  • 6
    4425949
    LOCK, Intake and Exhaust Valve
    • Require Quantity: 32
  • 7
    4425602
    RETAINER, Valve Spring Intake and Exhaust
    • Require Quantity: 16
  • 8
    4425605
    SPRING, Valve
    • SPRING, Valve
    • Require Quantity: 16
  • 8
    4425981
    SPRING, Valve
    • SPRING, Exhaust Valve
  • 9
    4425606
    RETAINER, Valve Spring Intake and Exhaust Lower
    • Require Quantity: 16
  • 9A
    4425982
    WASHER, Retainer Valve Spring Lower
  • 10
    4425990
    SEAL, Valve Guide
    • Require Quantity: 16
  • 10
    MD125228
    SPRING, Tensioner
  • 11
    4425599
    VALVE, Intake
    • Require Quantity: 8
  • 12
    4425611
    VALVE, Exhaust
    • Require Quantity: 8
  • 13
    Chrysler MD145656
    MD145656
    CAMSHAFT ASSEMBLY, (A)- Lt.
  • 15
    Chrysler MD125669
    MD125669
    SPRING, Rocker Shaft Rt.
    • Require Quantity: 12
  • 16
    MD167019
    ARM, Rocker (B) Intake and Exhaust
    • Require Quantity: 12
  • 18
    Chrysler MD151382
    MD151382
    ADJUSTER, Lash
    • Require Quantity: 12
  • 19
    MD061895
    LOCK, Valve Spring Retainer
    • Require Quantity: 24
  • 20
    Chrysler MD066498
    MD066498
    RETAINER, Valve Spring
    • Require Quantity: 12
  • 21
    MD000508
    SEAL, Valve Stem
    • Require Quantity: 12
  • 22
    Chrysler MD073398
    MD073398
    SPRING, Valve Intake and Exhaust
    • Require Quantity: 12
  • 23
    Chrysler MD096944
    MD096944
    SEAT, Valve Spring
    • Require Quantity: 12
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1990 Chrysler TC Maserati parts. Parts like Camshaft & Valves are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.4L, 6 Cyl 3.0L. Transmission: 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
