3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

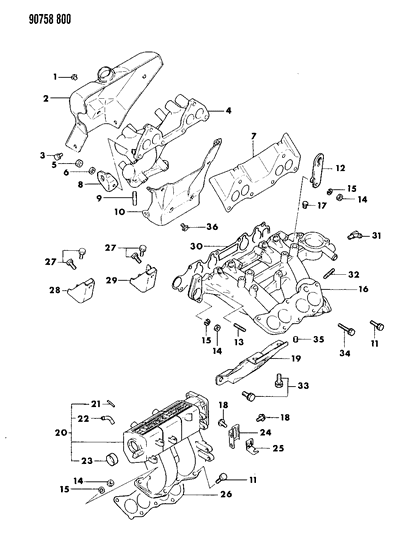

- 1.ENGINE, 4 CYLINDER MANIFOLD, INTAKE & EXHAUST 24 COLT LC - 41 SUMMIT LC 1.5 L ENGINE
- 2.ENGINE, 4 CYLINDER MANIFOLD, INTAKE & EXHAUST 24,41,45 COLT LA 1.5 L ENGINE

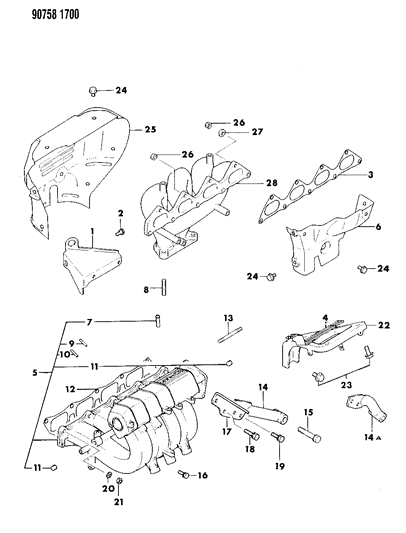

- 3.ENGINE, 4 CYLINDER MANIFOLD, INTAKE AND EXHAUST 24 COLT LC - 41 SUMMIT LC 1.6 L ENGINE DOHC
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
2
2
MD130325
COVER, Exhaust Manifold
2
MD102485COVER, Exhaust Manifold "A" Rt.- Fitting Vehicle Options: 24,41
2
MD130325COVER, Exhaust Manifold "A" Rt.- Fitting Vehicle Options: 45 FWD
3
MD124763
GASKET, Exhaust Manifold
4
MD101659MANIFOLD, Exhaust- (Federal and Calif.)
MANIFOLD, Exhaust - Fitting Vehicle Options: 45 FWD
4
MD101661MANIFOLD, Exhaust- MANIFOLD, Exhaust
- Fitting Vehicle Options: 24,41
6
MD128190
PROTECTOR, Exhaust Manifold Heat
6
7
MD101666
GASKET, Exhaust Manifold
7
8
MD016967
HANGER, Engine (Front)
8
MD016967
HANGER, Engine (Rear)
8
9
MD141033
NIPPLE, Intake Manifold
9
10
MD130191
COVER, Exhaust Manifold
10
MD130191COVER, Exhaust Manifold "B" Rt.- (Federal and Calif.)
- Fitting Vehicle Options: 45 FWD
10
MD130694COVER, Exhaust Manifold "B" Rt.- COVER, Exhaust Manifold "B" Rt.
- Fitting Vehicle Options: 24,41
10
11
11
MD717970
BRACKET, Throttle Cable Inner w/Automatic Transmission
12
MD117729
GASKET, Intake Manifold
12
MD717969
Outer w/Automatic Trans.)
13
14
14
14
MD128008ROD, Trans. Case Tension w/Automatic Trans.
14A
MD127987ROD, Trans. Case Tension w/Manual Trans.
15
MD030689
HANGER, Engine (Rear)
16
16
MD125651MANIFOLD, Intake (Calif.)- MANIFOLD, Intake (Calif.)
16
MD148844MANIFOLD, Intake (Calif.)
17
MD127988
BRACKET, Intake Manifold Tension Rod
17
MD091811
JOINT, Vacuum Connector
18
18
19
19
19
MD128916
STAY, Intake Manifold
20
MD146812PLENUM, Air Intake (Calif.)- PLENUM, Air Intake (Calif.)
20
MD148860PLENUM, Air Intake (Calif.)
21
MD008484NIPPLE- NIPPLE
- Fitting Vehicle Options: 24,41
21
22
MD031631
GASKET, Intake Manifold Rear
22
MD127749STAY, Intake Manifold (Federal and Canada)- STAY, Intake Manifold (Federal and Canada)
22
MD127750STAY, Intake Manifold (Federal and Canada)
23
MF140057BOLT, Flange (10x18 4T)
23
MD088445
GASKET, Intake Manifold Front
24
MD734892
BRACKET, Cable Outer w/Automatic Trans.
24a
MD125653
(Federal and Calif.)
25
MD727415
BRACKET, Cable Inner w/Automatic Trans.
25
MD130346
PROTECTOR, Exhaust Manifold Heat
26
MD125655
GASKET, Intake Air Plenum
28
MD136547
MANIFOLD, Exhaust
28
MD124274
STAY, Rear (Calif.)
29
30
MD113195
GASKET, Inlet Manifold
30
MD108906
STAY, Intake Manifold
30a
MD128916
(Federal and Calif.)
31
32
33
34
MF101263BOLT, w/Washer (8X40)
34
MD146888
PLENUM, Air Intake (Federal and Calif.)
35
35
36
MD031535
NIPPLE, (Federal and Calif.)
38
MD734892
BRACKET, Cable Outer w/Automatic Trans. (Federal and Calif.)
39
MD727415
BRACKET, Cable Inner w/Automatic Trans. (Federal and Calif.)
40
MD125655
GASKET, Intake Air Surge Tank (Federal and Calif.)
42
MD147304
STAY, Rear (Calif.)
43
MD115038STAY, Surge Tank (Federal and Calif.)
44
MD113195
GASKET, Inlet Manifold (Federal and Calif.)
45
MD081379
NIPPLE, (Federal and Calif.)
46
47
48
MF101263BOLT, w/Washer (8X40) (Federal and Calif.)
49
MB344302BOLT, Exhaust Manifold (8x12)- CLIP, Harness (Federal and Calif.) (Not Shown)
- Fitting Vehicle Options: 45 FWD
