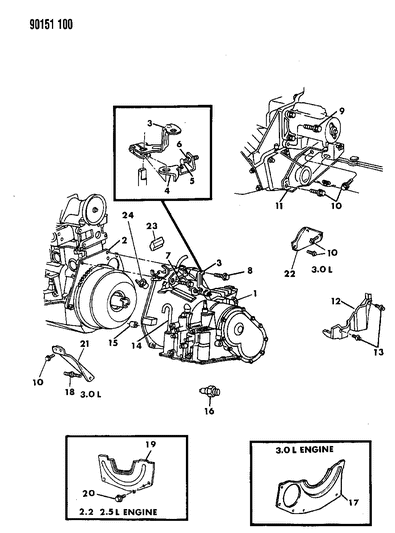

Diagram (1 of 1): TRANSMISSION, AUTO. TRANSAXLE ASSEMBLIES AND MOUNTING AUTOMATIC CHRYSLER, A413,A670
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 14419616
TRANSAXLE ASSEMBLY, 3 Speed Automatic- GASKET PACKAGE, Seals, Rings, O-Rings, Gaskets, Transaxle Major Repair, A413,A670 Trans. (4531098 4531099)
- 14531085
TRANSAXLE ASSEMBLY, 3 Speed Automatic- w/2.2 EFI Liter Eng., w/2.78 Overall Ratio, w/LU, A413
- Fitting Vehicle Options: L
- 14531097
TRANSAXLE ASSEMBLY, 3 Speed Automatic- w/3.0 Liter Eng., w/3.01 Overall Ratio, w/LU, A670
- Fitting Vehicle Options: S
- 14531099
TRANSAXLE ASSEMBLY, 3 Speed Automatic- w/2.5 EFI-TURBO CHARGED Eng., w/3.02 Overall Ratio, w/o LU, A413
- Fitting Vehicle Options: P,A,J,G, S
- 14531115
TRANSAXLE ASSEMBLY, 3 Speed Automatic- w/2.2 EFI Liter Eng., w/3.02 Overall Ratio, w/LU, A413
w/2.5 EFI Liter Eng., w/3.02 Overall Ratio, w/LU, A413 - Fitting Vehicle Options: C, D-H41, P, P,A,J,G
- 14531174
TRANSAXLE ASSEMBLY, 3 Speed Automatic- w/2.5 EFI Liter Eng., w/3.22 Overall Ratio, w/LU, A413
- Fitting Vehicle Options: S
- 1R4531085AA
TRANSAXLE ASSEMBLY, 3 Speed Automatic- TRANSAXLE
- Fitting Vehicle Options: L
- 1
- 1R4567055AA
TRANSAXLE ASSEMBLY, 3 Speed Automatic- TRANSAXLE, 31TH, REMAN ENGINES - Mopar Remanufactured Part
- Fitting Vehicle Options: S
- 1R4567059AA
TRANSAXLE ASSEMBLY, 3 Speed Automatic- TRANSAXLE, 31TH, REMAN ENGINES - Mopar Remanufactured Part
- Fitting Vehicle Options: C, D-H41, P, P,A,J,G
- 1R4773066AA
TRANSAXLE ASSEMBLY, 3 Speed Automatic- TRANSAXLE, 31TH, REMAN ENGINES - Mopar Remanufactured Part
- Fitting Vehicle Options: C, D-H41, P, P,A,J,G
- 1R4773067AA
TRANSAXLE ASSEMBLY, 3 Speed Automatic- TRANSAXLE, 31TH, REMAN ENGINES - Mopar Remanufactured Part
- Fitting Vehicle Options: S
- Replaced By: R4773067AB
- 1
- 2
- 2
- 34307554
LEVER, Manual Control- w/3.0 Liter Eng.
- 34446790
LEVER, Manual Control- LEVER, Manual Control
- 3
5212384
LEVER, Manual Control- NUT, Lever Bolt, M6x1.00
- 35240826
LEVER, Manual Control- Throttle Control, Except w/3.0 Liter Eng.
- 3
6501420
LEVER, Manual Control- BOLT, M6x1.00x35
- 8
- 10
6100344
SCREW, w/Washer, Strut to Block, M12x1.75x30, w/2.2,2.5 Liter Eng.- M12x1.75x40, w/TURBO TWO (EDR)
- Replaced By: 6505833AA
$6.15 $4.091 - 106501741
SCREW, w/Washer, Strut to Block, M12x1.75x30, w/2.2,2.5 Liter Eng.- SCREW, w/Washer, Strut to Block, M12x1.75x30, w/2.2,2.5 Liter Eng.
- 11
- 124296142
SHIELD, Trans. Appearance, Left- SHIELD, Trans. Appearance, Left
- Fitting Vehicle Options: L
- 124449006
SHIELD, Trans. Appearance, Left- SHIELD, Trans. Oil Pan ((Refer to Group 13 Illus. 300))
- Fitting Vehicle Options: S
- 124490689
SHIELD, Trans. Appearance, Left- ((Refer to Group 13 Illus. 300))
- Fitting Vehicle Options: S
- 124534297
SHIELD, Trans. Appearance, Left- Fitting Vehicle Options: P
- 124534559
SHIELD, Trans. Appearance, Left- Fitting Vehicle Options: C
- 125256403
SHIELD, Trans. Appearance, Left- Fitting Vehicle Options: A,J,G
- 144531167
INDICATOR, Trans. Fluid (Original Trans. Indicator O-Ring, 18.6mm O.D.)- INDICATOR, Trans. Fluid (Original Trans. Indicator O-Ring, 18.6mm O.D.)
- 144856444
INDICATOR, Trans. Fluid (Original Trans. Indicator O-Ring, 18.6mm O.D.)- (Replacement Trans. Indicator O-Ring, 19.93mm O.D.)
- 15
$9.10 $6.97
- 16
2408143
SWITCH, Neutral Starter and Back-Up Light (Use Wrg. Pkg. 4209695)- WASHER, Neutral Starter and Back-Up Light Switch
- 16
3747361
SWITCH, Neutral Starter and Back-Up Light (Use Wrg. Pkg. 4209695)- SWITCH, Neutral Starter and Back-Up Light (Use Wrg. Pkg. 4209695)
- Replaced By: 3747361AB
$211.00 $141.001
- 17
4505678
COVER, Case Lower, w/3.0 Liter Eng.
- 18
- 19
- 204412430
SCREW, Case Cover, Lower, M6x1.00x14, Except 2.5,3.0 Liter Eng.- RETAINER, Case Cover Lower, Special Screw
- 205234188
SCREW, Case Cover, Lower, M6x1.00x14, Except 2.5,3.0 Liter Eng.- SWITCH, Oil Pressure, w/Electronic Message Center
- Fitting Vehicle Options: J,C
- 206032269
SCREW, Case Cover, Lower, M6x1.00x14, Except 2.5,3.0 Liter Eng.- FITTING, Switch, Elbow, 1/8x27 Fem. - 1/16x27 Male Thd.
- Fitting Vehicle Options: J,C
- 20
6500136
SCREW, Case Cover, Lower, M6x1.00x14, Except 2.5,3.0 Liter Eng.- SCREW, Case Cover, Lower, M6x1.00x14, Except 2.5,3.0 Liter Eng.
- 21
4348953
STRUT, Trans. to Cyl. Block, Front, w/3.0 Liter Eng.
- 22
$22.00 $17.291
- 234431448
COVER, Trans. Timing Window, Except L Body, and 3.0 Liter Eng.
- 244377923
PLUG, Timing Probe Hole, Except L Body, and 3.0 Liter Eng.
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Grand Caravan parts. Parts like Transaxle Assemblies & Mounting are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
