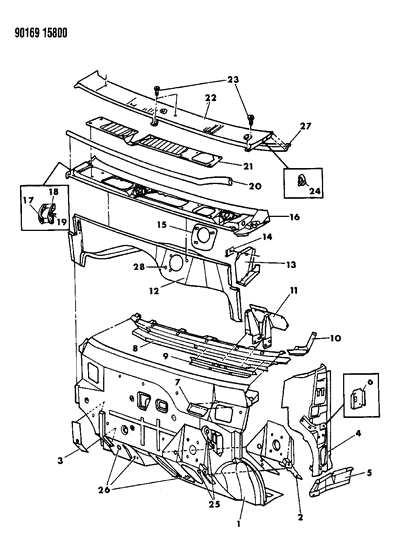

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS COWL AND DASH PANEL S BODY

1990 Dodge Grand Caravan Cowl & Dash Panel Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4512761
PANEL, Dash

2
4337329
REINFORCEMENT, Dash Panel Accelerator and Brake Pedal

3
4337276
REINFORCEMENT, Dash Panel To Front Side Rail Upper Rt.

4
4512808
PANEL, Cowl Side
Right
4
5255351
PANEL, Cowl Side
- Left

5
4278046
EXTENSION, Body Side Sill Inner Panel, Right
EXTENSION, Body Side Sill Inner Panel, Right
5
4278047
EXTENSION, Body Side Sill Inner Panel, Right
- EXTENSION, Body Side Sill Inner Panel, Left

6
4278733
REINFORCEMENT, Cowl Side Park Brake Bracket

7
4278415
BRACKET, Cowl Plenum Water Deflector Lt.

8
4512898
REINFORCEMENT, Dash Panel Belt

9
4512899
SUPPORT, Dash Panel Belt Reinforcement Steering Column

10
4278386
REINFORCEMENT, Dash Panel Belt To Windshield Frame Inner, Right
REINFORCEMENT, Dash Panel Belt To Windshield Frame Inner, Right
10
4278387
REINFORCEMENT, Dash Panel Belt To Windshield Frame Inner, Right
- REINFORCEMENT, Dash Panel Belt To Windshield Frame Inner, Left

11
4314210
BRACKET, Dash Panel Steering Column Support

12
4512407
PANEL, Cowl Plenum Lower Up

13
4278148
PANEL, Cowl Plenum Side Inner, Right
PANEL, Cowl Plenum Side Inner, Right
13
4278149
PANEL, Cowl Plenum Side Inner, Right
- PANEL, Cowl Plenum Side Inner, Left

14
4341381
REINFORCEMENT, w/Pin Cowl Plenum Side Inner Hood Hinge
- Require Quantity: 2

15
4371698
REINFORCEMENT, Cowl Lower Plenum Windshield Wiper Motor

16
4416733
PANEL, Cowl Plenum Upper

18
4314806
RETAINER, w/Fastener Cowl Top To Body Side Aperture Panel Seal (Includes Item #19), Right
RETAINER, w/Fastener Cowl Top To Body Side Aperture Panel Seal (Includes Item #19), Right
18
4314807
RETAINER, w/Fastener Cowl Top To Body Side Aperture Panel Seal (Includes Item #19), Right
- RETAINER, w/Fastener Cowl Top To Body Side Aperture Panel Seal (Includes Item #19), Left

19
6003808
FASTENER
- Require Quantity: 2

20
4512940
SEAL, Cowl Plenum To Hood

21
4416751
SCREEN, w/Seal Cowl Plenum Upper

22
4416335
PANEL, Cowl Plenum Grille

24
4548062
CLIP, Cowl Plenum Grille
- Require Quantity: 2

25
3445939
PLUG, .906" Dia./23 mm

26
5200456
PLUG, 2.75" Dia./70 mm
- Require Quantity: 3

28

6030441
PLUG, Cowl Plenum Lower Windshield Wiper Motor P/Nut
$7.40 $4.99
1
Add To Cart

6101283
Nut (Use w/5255351)

5255031
SEAL ASSEMBLY, Ram Air Opening Cover

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Grand Caravan parts. Parts like Cowl & Dash Panel are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
