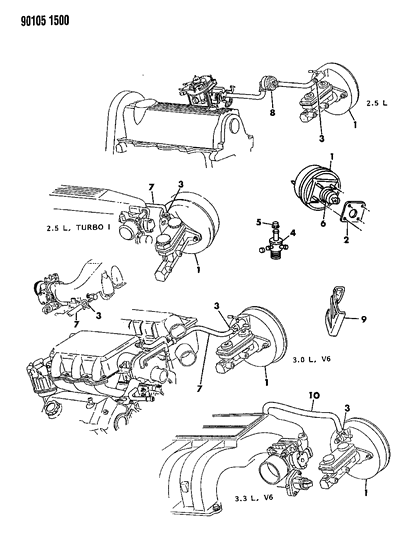

Diagram (1 of 1): BRAKES, SERVICE BOOSTER, POWER BRAKE S BODY

1990 Dodge Grand Caravan Booster, Power Brake Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4419944
BOOSTER, Brake
BOOSTER, Brake
1
4485526
BOOSTER, Brake
- BOOSTER, Brake, Bendix 270mm (European)

2
4485319
GASKET, Brake Booster Mtg.

3
2448761
CLAMP
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 33000784
$4.95 $3.28
1
Add To Cart

4
4271382
VALVE and GROMMET PACKAGE, Brake Booster (Bendix)

5
3880044
CAP, Brake Valve, Large (Bendix)

6
4294158
BOOT, Brake Booster Push Rod, w/270mm (Bendix)

7
4294798
HOSE, Brake Booster to Int. Manifold
HOSE, Brake Booster to Int. Manifold
7
4294989
HOSE, Brake Booster to Int. Manifold
- HOSE, Brake Booster to Turbo Intake Manifold

8
4397925
FILTER

9
4294036
CLIP, Push Rod Pin
- Replaced By: 4581512AA
$2.35 $1.72
1
Add To Cart

10
3580172
HOSE, Brake Booster to Intake Manif., w/3.3L, V6
CAP, Conn Brake Booster Vac
Replaced By: 4663032
$16.05 $11.03
1
Add To Cart
10
4306550
HOSE, Brake Booster to Intake Manif., w/3.3L, V6
- CONNECTOR, Brake Booster Vac
10
4509135
HOSE, Brake Booster to Intake Manif., w/3.3L, V6
- HOSE, Brake Booster to Intake Manif., w/3.3L, V6

1944154
CONNECTOR,3/8 Vac Control

6101445
NUT,M8-1.25
NUT,M8-1.25
Require Quantity: 2
Package Quantity: 1
Replaced By: 6102440AA
$10.55 $7.28
1
Add To Cart
3880050
NUT,M8-1.25
- MUFFLER, Booster Vac. Hose Filter
4294685
NUT,M8-1.25
- FILTER and MUFFLER ASSEMBLY, Brake Booster Vac. Hose

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Dodge Grand Caravan parts. Parts like Booster, Power Brake are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L. Transmission: 3-Speed Automatic Transmission, 4-Speed Automatic Transmission, 5-Speed Manual Transmission.
