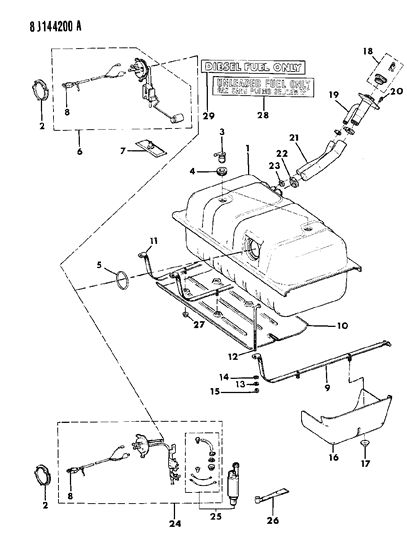

Diagram (1 of 1): FUEL FUEL TANKS & PUMPS COMANCHE

1990 Jeep Comanche Fuel Tanks & Pumps Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83502632
TANK, Fuel
w/16 Gal. Tank w/2.5L Eng. EFI - 7 Ft. Box - also use 83504481 - 1988
w/16 Gal. Tank w/4.0L EFI Eng. - 7 Ft. Box - also use 83504485 - 1988
w/16 Gal. Tank w/EFI Eng. - also use 83502729 - 1987-88
w/23.5 Gal. Tank - EFI Eng. - 7 Ft. Box
1
83502635
TANK, Fuel
- w/16 Gal. Tank w/2.5L Eng. Carbureted - 7 Ft. Box - also use 52003652 - 1988
  w/16 Gal. Tank w/Carbureted Eng. - also use 53002492 - 1987-88
  w/16 Gal. Tank w/Diesel Eng. - also use 52003644 - 1987-88
  w/23.5 Gal. Tank - Carbureted or Diesel Eng. - 7 Ft. Box
1
83503398
TANK, Fuel
- w/18 Gal. Tank - EFI Eng. - 6 Ft. Box
1
83505282
TANK, Fuel
- w/18 Gal. Tank - Carbureted Eng. - 6 Ft. Box

2
53000584
LOCK

3
J5360058
VALVE
- Require Quantity: 2
- Package Quantity: 1

4
J5360059
SEAL
- Require Quantity: 2

5
53000575
O-RING
$32.40 $22.29
1
Add To Cart

6
52003644
SENDING UNIT, Fuel
w/18 Gal. Tank - Carbureted Eng. - 7 Ft. Box
w/23.5 Gal. Tank - Diesel Eng. - 7 Ft. Box
6
52003652
SENDING UNIT, Fuel
- w/23.5 Gal. Tank - Carbureted Eng. - 7 Ft. Box
6
52003671
SENDING UNIT, Fuel
- w/16 Gal. Tank - Carbureted Eng. - 7 Ft. Box - 1988

7
53001248
FILTER, Fuel - w/Carbureted Eng.

8
56001859
HARNESS, Fuel Tank
w/EFI Eng.
8
56001860
HARNESS, Fuel Tank
- w/Carbureted Eng.
  w/Diesel Eng.

9
52001612
STRAP
w/Skid Plate
Require Quantity: 2
9
52001614
STRAP
- w/o Skid Plate
- Require Quantity: 2

10
52002958
EXTENSION, Shield

11
52001613
STRAP, Rear - 7 Ft. Box
w/Skid Plate
11
52002986
STRAP, Rear - 7 Ft. Box
- w/o Skid Plate

12
52001590
BOLT

13
11500273
WASHER, Flat

14
11500222
WASHER, Lock

15
11500424
NUT, Hex

16
52000951
SHIELD, Tank - w/o Skid Plate

17
34202123
NUT, Flange
- Require Quantity: 2

18
33000068
CAP, Fuel Filler
Export Locking
18
52003770
CAP, Fuel Filler
- U.S. Non-locking
18
52003772
CAP, Fuel Filler
- Canada Non-locking
18
52003774
CAP, Fuel Filler
- Export Non-locking
18
82400041
CAP, Fuel Filler
- Locking

19
52001814
TUBE, Fuel Filler
U.S. and Canada
19
52001817
TUBE, Fuel Filler
- Export

20
J4001701
SCREW

21
52001595
HOSE ASSEMBLY

22
J3203078
CLAMP, Hose
- Require Quantity: 2

23
J3203077
CLAMP, Hose
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 32003300AB
$6.45 $4.91
1
Add To Cart

24
83504481
SENDING UNIT - EFI Eng.
w/18 and 23.5 Gal. Tank w/2.5L Eng. EFI - 6 and 7 Ft. Box
24
83504483
SENDING UNIT - EFI Eng.
- w/16 Gal. Tank w/2.5L Eng. EFI - 7 Ft. Box - 1988
24
83504485
SENDING UNIT - EFI Eng.
- w/18 and 23.5 Gal. Tank w/4.0L Eng. EFI - 6 and 7 Ft. Box
24
83504486
SENDING UNIT - EFI Eng.
- w/16 Gal. Tank w/4.0L Eng. EFI - 7 Ft. Box - 1988

25
4637192
PUMP PACKAGE - EFI Eng.
4.0L Eng.
25
83502752
PUMP PACKAGE - EFI Eng.
- 2.5L Eng.

26
33000184
FILTER - EFI Eng.

27
11503745
NUT, Flange

28
J3696393
LABEL, Unleaded Fuel
U.S.
28
J3696394
LABEL, Unleaded Fuel
- Canada

29
J5464900
LABEL, Diesel Fuel

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Jeep Comanche parts. Parts like Fuel Tanks & Pumps are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission.
