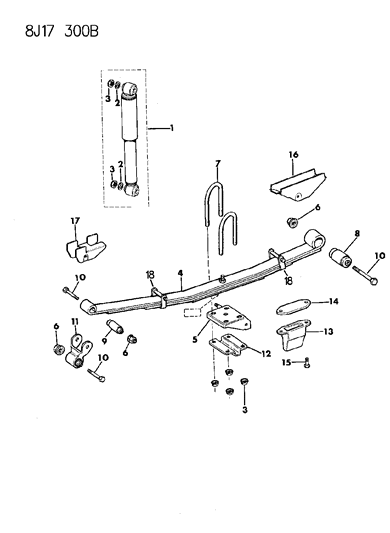

Diagram (1 of 1): REAR SUSPENSION SUSPENSION, REAR COMANCHE

1990 Jeep Comanche Suspension - Rear Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83502512
SHOCK ABSORBER
Standard Duty, Coded 89 52 000 950
Require Quantity: 2
1
83502513
SHOCK ABSORBER
- Standard Duty, Coded 89 52 001 237
- Require Quantity: 2
1
83502514
SHOCK ABSORBER
- Heavy Duty, Coded 89 52 002 787 or 52 004 408
- Require Quantity: 2
1
83503448
SHOCK ABSORBER
- Heavy Duty, Coded 89 52 003 287
- Require Quantity: 2
1
83503449
SHOCK ABSORBER
- Standard Duty, Coded 89 52 002 307
- Require Quantity: 2
1
83503450
SHOCK ABSORBER
- Standard Duty, Coded 89 52 002 672
- Require Quantity: 2
1
G0060101
SHOCK ABSORBER
- Mopar V-Line Alternative Part
1
G0073126
SHOCK ABSORBER
- Mopar V-Line Alternative Part

2
J4488495
WASHER
- Replaced By: S0120390

3
11500756
NUT

4
52001240
SPRING ASSEMBLY
1987-89 (Standard Duty, 4 Leaf, Coded RD)
Require Quantity: 2
4
52001824
SPRING ASSEMBLY
- 1987-89 (Standard Duty, 4 Leaf, Coded RF)
- Require Quantity: 2
4
52002312
SPRING ASSEMBLY
- 1987-89 (Standard Duty, 4 Leaf, Coded RB)
- Require Quantity: 2
4
52002350
SPRING ASSEMBLY
- 1987-89 (Standard Duty, 4 Leaf, Coded RG)
- Require Quantity: 2
4
52002351
SPRING ASSEMBLY
- 1987-89 (Standard Duty, 4 Leaf, Coded RE)
- Require Quantity: 2
4
52003676
SPRING ASSEMBLY
- Heavy Duty, 5 Leaf, Coded SD (Standard Duty, 4 Leaf, Coded RG)
- Require Quantity: 2
4
52006444
SPRING ASSEMBLY
- 1990 (Standard Duty, 4 Leaf, Coded RD)
- Require Quantity: 2
4
52006445
SPRING ASSEMBLY
- 1990 (Standard Duty, 4 Leaf, Coded RF)
- Require Quantity: 2
4
52006446
SPRING ASSEMBLY
- 1990 (Standard Duty, 4 Leaf, Coded RE)
- Require Quantity: 2
4
52006447
SPRING ASSEMBLY
- 1990 (Standard Duty, 4 Leaf, Coded RG)
- Require Quantity: 2
4
52006448
SPRING ASSEMBLY
- 1990 (Standard Duty, 4 Leaf, Coded RB)
- Require Quantity: 2

5
52001832
PLATE
1987-89 (Left, w/6 Foot Box)
1987-89 (Right, w/7 Foot Box)
5
52001833
PLATE
- 1987-89 (Left, w/7 Foot Box)
  1987-89 (Right, w/6 Foot Box)
5
52004844
PLATE
- 1990 (Left, w/6 Foot Box)
  1990 (Right, w/7 Foot Box)
5
52004845
PLATE
- 1990 (Left, w/7 Foot Box)
  1990 (Right, w/6 Foot Box)

6
11502814
NUT
- Require Quantity: 14
- Package Quantity: 1
- Replaced By: 6102251AA
$9.60 $6.58
1
Add To Cart

7
52002885
U-BOLT
Standard Duty
Require Quantity: 4
7
52002886
U-BOLT
- 1987 (Heavy Duty)
- Require Quantity: 4
- Package Quantity: 1
7
52003678
U-BOLT
- 1988-89 (Heavy Duty)
- Require Quantity: 4
7
52003996
U-BOLT
- 1990 (Heavy Duty)
- Require Quantity: 4

8
52000876
BUSHING
- Require Quantity: 2
- Package Quantity: 1

9
52000504
BUSHING
- Require Quantity: 2
- Package Quantity: 1
$73.76 $57.97
1
Add To Cart

10
34202118
BOLT
- Require Quantity: 6
- Package Quantity: 1
$14.45 $9.93
1
Add To Cart

11
52001828
SHACKLE
- Require Quantity: 2
- Package Quantity: 1

12
52002892
REINFORCEMENT
Standard Duty
Require Quantity: 2
12
52002893
REINFORCEMENT
- Heavy Duty
- Require Quantity: 2

13
52002078
BUMPER, Rear Axle Jounce
Height = 117mm
Require Quantity: 2
Package Quantity: 1
13
52002381
BUMPER, Rear Axle Jounce
- Height = 90mm
- Require Quantity: 2
13
52002382
BUMPER, Rear Axle Jounce
- Height = 74mm
- Require Quantity: 2
13
52002393
BUMPER, Rear Axle Jounce
- Height = 104mm
- Require Quantity: 2
- Package Quantity: 1
$0.00

14
52002383
SPACER
- Require Quantity: 2

15
34201771
SCREW
Length = 30mm
Require Quantity: 4
15
34201819
SCREW
- Length = 45mm
- Require Quantity: 4
15
J4200089
SCREW
- Length = 25mm
- Require Quantity: 4
- Package Quantity: 1

16
55006826
BRACKET
7 Foot Box
Require Quantity: 2
16
55009170
BRACKET
- 6 Foot Box
- Require Quantity: 2

17
55006824
BRACKET
Rt.
17
55006825
BRACKET
- Lt.

18
05014495AA
CLAMP KIT, Leaf Spring
- Require Quantity: 4

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1990 Jeep Comanche parts. Parts like Suspension - Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Manual Transmission.
