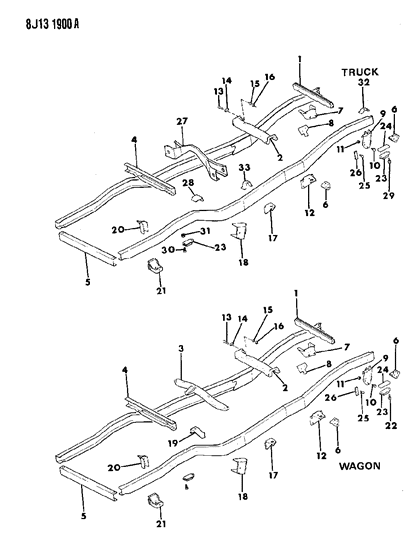

Diagram (1 of 1): FRAME & BUMPERS FRAME AND COMPONENTS GRAND WAGONEER, J10, J20

1990 Jeep Grand Wagoneer Frame & Components Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J8129559
CROSSMEMBER, Front

2
J8131904
CROSSMEMBER, Engine, Rear

3
J8127718
CROSSMEMBER, Center
- Fitting Vehicle Options: 15
3
J8133430
CROSSMEMBER, Center
- 1987-88
- Fitting Vehicle Options: 26,27

4
J8126847
CROSSMEMBER
- 1987-88
- Fitting Vehicle Options: 26,27
4
J8133431
CROSSMEMBER
- Fitting Vehicle Options: 15

5
J8126849
CROSSMEMBER, Rear
- 1987-88
- Fitting Vehicle Options: 26,27
5
J8129560
CROSSMEMBER, Rear
- Fitting Vehicle Options: 15

6
J8129561
BRACKET, Spring Mounting
- Require Quantity: 4

7
J8127810
BRACKET

8
J8127811
GUSSET

9
J5364228
BRACKET, Shock Absorber, Right
- BRACKET, Shock Absorber, Right
9
J5364229
BRACKET, Shock Absorber, Right
- BRACKET, Shock Absorber, Left

10
J4005665
SCREW, 1.12"
- SCREW, 1.12"
- Require Quantity: 2
10
J4006864
SCREW, 1.12"
- BOLT, 3.25"
- Require Quantity: 4

11
J4003909
NUT
- Require Quantity: 4
- Package Quantity: 1

12
J8126835
BRACKET
- Left
- Fitting Vehicle Options: 15
12
J8126836
BRACKET
- Right
- Fitting Vehicle Options: 15
12
J8126837
BRACKET
- Left, 1987-88 (Not Serv.)
- Fitting Vehicle Options: 26,27
12
J8126838
BRACKET
- Right, 1987-88
- Fitting Vehicle Options: 26,27

13
J0181652
BOLT
- Require Quantity: 8

14
J8131905
SPACER
- Require Quantity: 2

15
J0120382
WASHER
- 1987-89
- Require Quantity: 8
15
J4003803
WASHER
- 1990
- Require Quantity: 8

16
J0120369
NUT
- Require Quantity: 8
- Package Quantity: 1
$9.00 $7.79
1
Add To Cart

17
J8126839
BRACKET
- 1988
- Fitting Vehicle Options: 26,27
- Require Quantity: 2
17
J8126840
BRACKET
- Fitting Vehicle Options: 15
- Require Quantity: 2

18
J8126850
BRACKET
- Fitting Vehicle Options: 15
- Require Quantity: 2
18
J8126851
BRACKET
- Left, 1987-88
- Fitting Vehicle Options: 26,27
18
J8126852
BRACKET
- Right, 1987-88
- Fitting Vehicle Options: 26,27

19
J8126853
BRACKET
- Left
19
J8126854
BRACKET
- Right

20
J8126858
BRACKET
- 1987-88
- Fitting Vehicle Options: 26,27
- Require Quantity: 2
20
J8126859
BRACKET
- Fitting Vehicle Options: 15
- Require Quantity: 2

21
J8126860
BRACKET
- 1987-88
- Fitting Vehicle Options: 26,27
- Require Quantity: 2
21
J8126861
BRACKET
- Fitting Vehicle Options: 15
- Require Quantity: 2

22
J4003060
SCREW, 1.25"
- SCREW, 1.25"
22
J4005063
SCREW, 1.25"
- .62", 1987-88
- Fitting Vehicle Options: 26,27
- Require Quantity: 2

23
J5355483
BUMPER, Axle
- Require Quantity: 4
- Package Quantity: 1
$24.59 $19.32
1
Add To Cart

24
J5361023
SPACER
- Require Quantity: 2

25
J4005063
SCREW
- Require Quantity: 8

26
J5353415
BRACKET
- Require Quantity: 2

27
J8133430
CROSSMEMBER, Center 1988

28
J8126855
BRACKET, 1987-88 (Not Serv.)
- Require Quantity: 2

29
J4003060
SCREW
- 1.25", 1988
- Require Quantity: 2
29
J4005063
SCREW
- .62", 1987-88
- Require Quantity: 2

30
J0180078
BOLT, 1987-88
- Require Quantity: 4

31
J0120376
NUT, 1987-88
- Require Quantity: 4

32
J8126803
BRACKET, 1987-88
- Require Quantity: 2

33
J8126841
BRACKET, 1987-88 (Not Serv.)
- Require Quantity: 2
