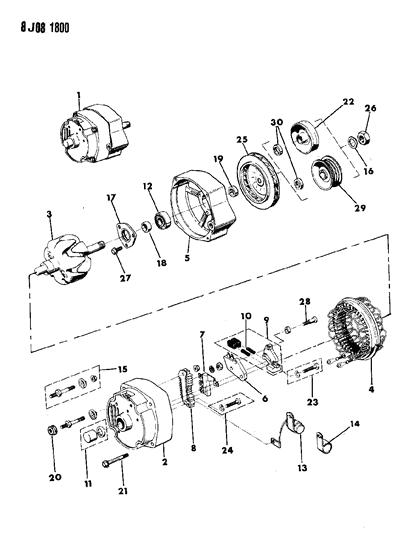

Diagram (1 of 1): ELECTRICAL ALTERNATOR 2.5L AND 4.2L ENGINES WRANGLER, YJ
1990 Jeep Wrangler Alternator Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    J8134651
    HOUSING, Alternator Rear
  • 3
    J8134645
    ROTOR, Alternator
    • Tagged 110 5044, 110 5045, 110 5047 or 110 5048
  • 3
    J8134646
    ROTOR, Alternator
    • Tagged 110 5046 or 110 5049
  • 4
    J8134648
    STATOR, Alternator
    • Tagged 110 5044 or 110 5047
  • 4
    J8134649
    STATOR, Alternator
    • Tagged 110 5045, 110 5046, 110 5048 or 110 5049
  • 5
    J8134655
    HOUSING, Alternator Front
  • 6
    83300084
    REGULATOR, Voltage
  • 7
    83300072
    DIODE TRIO
  • 8
    J8134650
    RECTIFIER, Diode
  • 9
    J8134652
    HOLDER, Brush
  • 10
    J8134653
    SPRING
  • 11
    J8125181
    BEARING
  • 12
    J8126709
    BEARING
  • 13
    J8125183
    CAPACITOR, Alternator
  • 14
    J8125184
    CLAMP
  • 15
    J8133274
    TERMINAL
  • 16
    J8133280
    WASHER
  • 17
    J8134658
    RETAINER
  • 18
    J8133279
    COLLAR
  • 19
    J8134659
    COLLAR
  • 21
    J8125191
    BOLT
    • Require Quantity: 4
  • 22
    J8132698
    PULLEY, Alternator w/o Serpentine Belt Drive
  • 23
    J8133273
    SCREW
  • 24
    J8134669
    SCREW
  • 25
    J8134662
    FAN, Alternator
  • 26
    J8125242
    NUT
  • 27
    J8134668
    SCREW
    • Require Quantity: 3
  • 28
    J8125244
    SCREW
    • Require Quantity: 2
  • 29
    J8134194
    PULLEY, Alternator w/Serpentine Belt Drive
  • 30
    J8133299
    COLLAR
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1990 Jeep Wrangler parts. Parts like Alternator are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.2L. Transmission: 3-Speed Automatic Transmission, 5-Speed Manual Transmission.
