2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.ELECTRICAL LAMPS--FRONT ROTATING IMPERIAL Y BODY
    1991 Chrysler New Yorker Lamps - Front Rotating Diagram 1

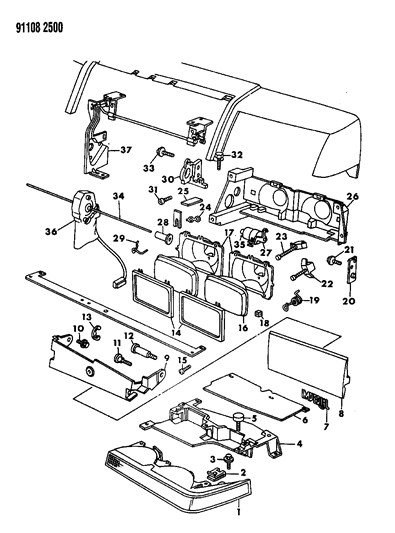

  • 2.ELECTRICAL LAMPS--FRONT ROTATING NEW YORKER & FIFTH AVENUE C-Y BODY
    1991 Chrysler New Yorker Lamps - Front Rotating Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    6501013
    U-NUT
  • 3
    4334903
    BRACKET, Rot. H/Lamp Door Motor Mtg.
  • 4
    4451016
    BRACKET, Mtg. Pnl., Park/Turn Lamp & Filler, Right
    • BRACKET, Mtg. Pnl., Park/Turn Lamp & Filler, Right
  • 4
    4451017
    BRACKET, Mtg. Pnl., Park/Turn Lamp & Filler, Right
    • BRACKET, Mtg. Pnl., Park/Turn Lamp & Filler, Left
  • 5
    4334931
    PLATE, Motor Mtg. Adaptor
  • 5
    6033114
    SCREW
  • 6
    4451018
    SIGHT SHIELD, (Clips 6501925) , Right
    • SIGHT SHIELD, (Clips 6501925) , Right
  • 6
    4451019
    SIGHT SHIELD, (Clips 6501925) , Right
    • SIGHT SHIELD, (Clips 6501925) , Left
  • 7
    4451201
    NAMEPLATE, (Mtg. Nut 9420862)
  • 8
    4451202
    DOOR, Right
    • DOOR, Right
  • 8
    4451203
    DOOR, Right
    • DOOR, Left
  • 8
    6024067
    SCREW
  • 9
    4334896
    BRACKET, Outer
  • 9
    5263124
    PANEL, H/Lp. Door Inner, Right
    • PANEL, H/Lp. Door Inner, Right
  • 9
    5263125
    PANEL, H/Lp. Door Inner, Right
    • PANEL, H/Lp. Door Inner, Left
  • 10
    5263129
    CLIP, Spring
  • 10
    6034177
    SCREW
  • 11
    4334845
    BAR, Torsion
  • 11
    6034177
    SCREW, Pivot
  • 12
    6033649
    SCREW, Pivot (Bushing 6033076)
  • 13
    4334864
    DOOR, H/Lamp, Right
    • DOOR, H/Lamp, Right
  • 13
    4334865
    DOOR, H/Lamp, Right
    • DOOR, H/Lamp, Left
  • 13
    Chrysler 6023878
    6023878
    E-CLIP
  • 14
    4515334
    CRANK ASSEMBLY
  • 14
    4451032
    RING
  • 16
    4451024
    BULB, Hi-Beam
    • BULB, Hi-Beam
  • 16
    4451025
    BULB, Hi-Beam
    • Lo-Beam
  • 16
    6501577
    PUSH-PIN, Sight Shield
  • 17
    4451344
    SEAT, Hi-Lo
  • 18
    6033076
    BUSHING
  • 20
    4451152
    BRACKET, Door Outer Pivot, Right
    • BRACKET, Door Outer Pivot, Right
  • 20
    4451153
    BRACKET, Door Outer Pivot, Right
    • BRACKET, Door Outer Pivot, Left
  • 20
    4334888
    SHIELD, Sight, Right
    • SHIELD, Sight, Right
  • 20
    4334889
    SHIELD, Sight, Right
    • SHIELD, Sight, Left
  • 21
    3574200
    DOWNSTOP & UP-STOP, H/Lamp Door
  • 22
    5263136
    SCREW, Adj.
  • 23
    4388659
    PIVOT
  • 23
    5263136
    SCREW, w/Nut Adj.
  • 25
    6033521
    BUSHING, H/Lamp Door Inner Pivot
  • 25
    5263038
    PAD
  • 26
    5263118
    HOUSING, Right
    • HOUSING, Right
  • 26
    5263119
    HOUSING, Right
    • HOUSING, Left
  • 26
    4103261
    SLEEVE, H/Lamp Door Adjusting Collar
  • 27
    5263230
    PIVOT, Right
    • PIVOT, Right
  • 27
    5263231
    PIVOT, Right
    • PIVOT, Left
  • 28
    4334419
    SLEEVE
  • 29
    4334898
    BRACKET, H/Lamp Door Inner Pivot Adj.
  • 29
    4334334
    CLIP
  • 30
    5263224
    BRACKET, Right
    • BRACKET, Right
  • 30
    5263225
    BRACKET, Right
    • BRACKET, Left
  • 30
    4388716
    BRACKET, Torsion Bar Mtd.
  • 31
    6033543
    SCREW
  • 31
    5263045
    SPRING, Torsion Bracket
  • 32
    4388713
    SPACER, (Sleeve)
  • 32
    6033114
    STOP
  • 33
    4451006
    CROSSBAR, Rad. Grille Mtg. Pnl. Lower
  • 34
    4334845
    BAR
  • 37
    4451007
    BRACKET, Motor Mtg. & Support
  • 4388724
    LABEL, Rot. H/Lamp Door
  • 4388997
    LABEL, Rot. H/Lamp Door
    • Require Quantity: 2
  • 4388724
    LABEL, Rot. H/Lp.
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1991 Chrysler New Yorker Fifth Avenue parts. Parts like Lamps - Front Rotating are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.8L. Transmission: 4-Speed Automatic Transmission.
